LIGHTWEIGHT. DURABLE. VERSATILE.

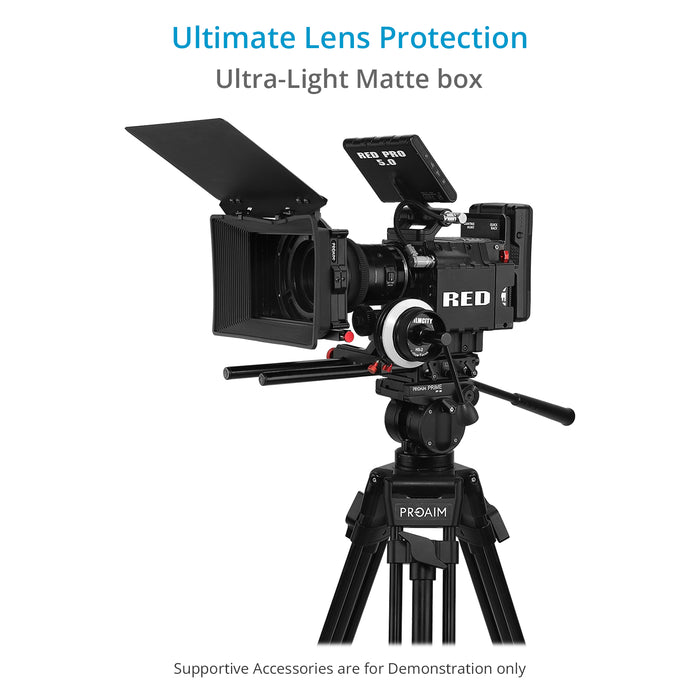

Unlock an intelligent solution to propel away unwanted light & flares from your camera, all while rendering excellent protection to your lens with Proaim Swing Away Matte Box, designed to ease up your shooting operations on set.
The outstanding functionality of the matte box further expands the versatility of your camera equipment and lighting configuration.

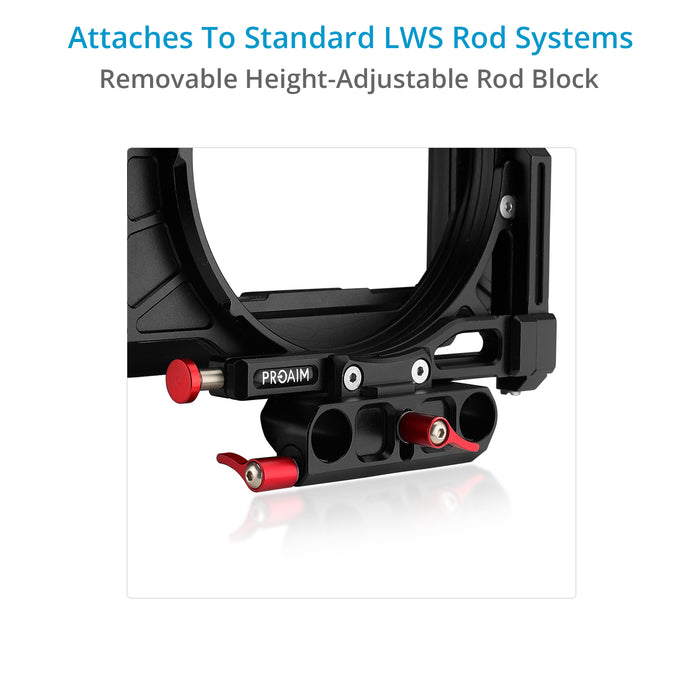

Its aluminum and carbon fiber construction is lightweight, and the included rod block is height adjustable, making it compatible with a wide range of lens sizes.
PROTECT & ACCESSORIZE YOUR CAMERA W COMFY HANDHELD SHOOTING SOLUTION!

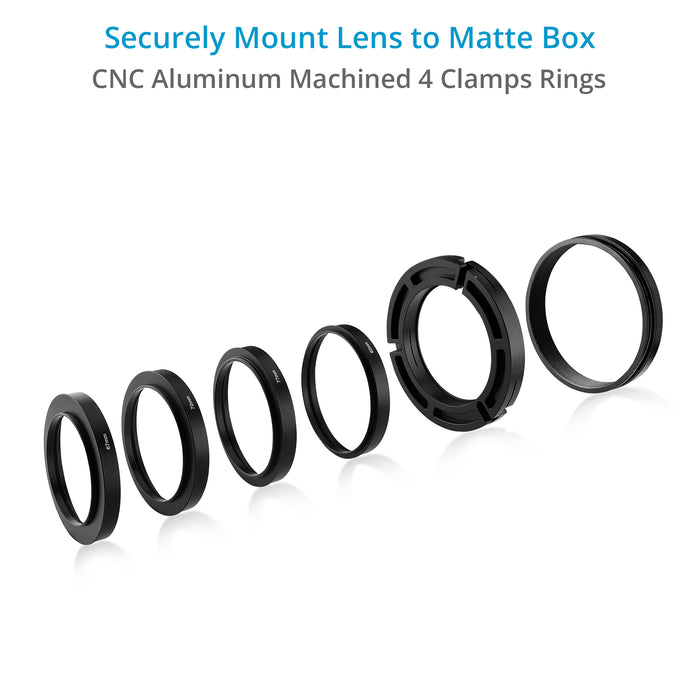

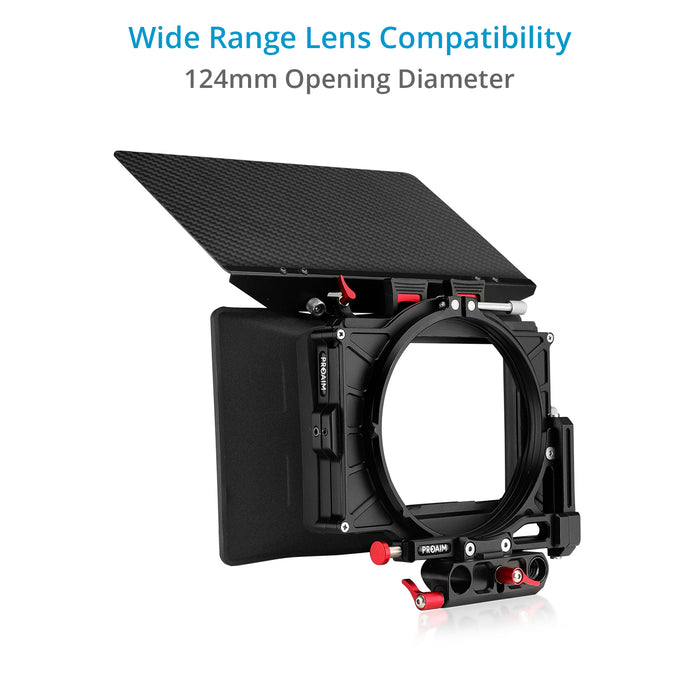

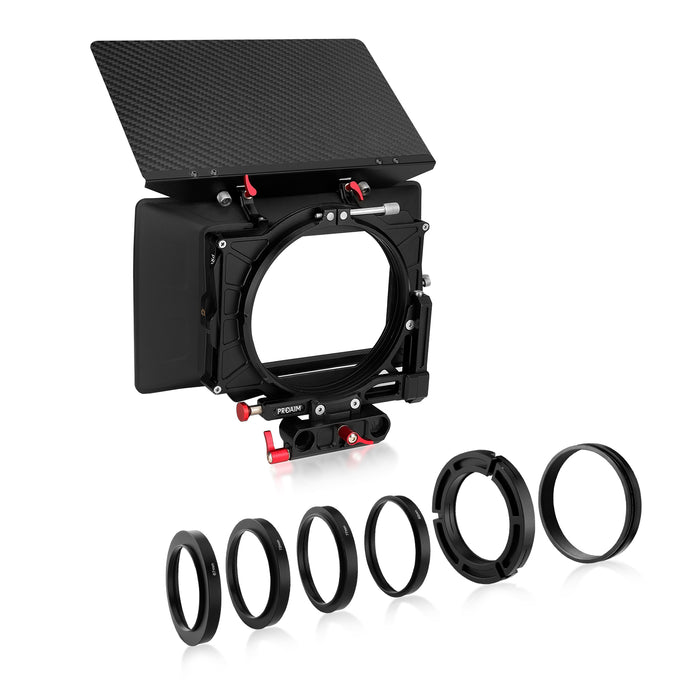

The matte box is designed to clamp onto a 124mm lens and comes with four adapter rings for mounting lenses of 67mm, 72mm, 77mm, 82mm & 87 mm in diameter.
These rings enable you to use a wide range of lenses and clamp the Matte Box safely and securely.
Also, the included 15mm Rod adapter allows you to convert the matte box from clip-on mount to rod mount, as and when needed, making it usable for multiple different setups.

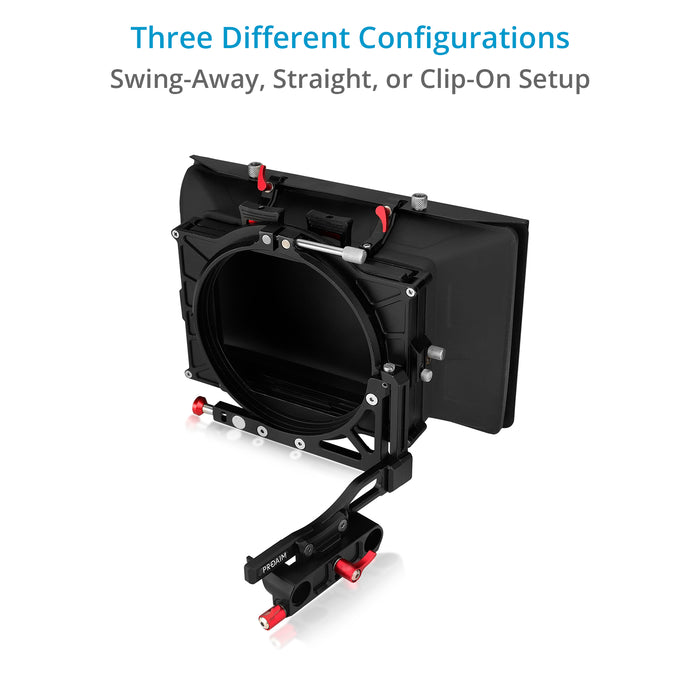

THREE DIFFERENT CONFIGURATIONS
Ring-locking knob clips secure box for clip-on configuration
Rod block can be mounted directly to the main frame for straight arrangement

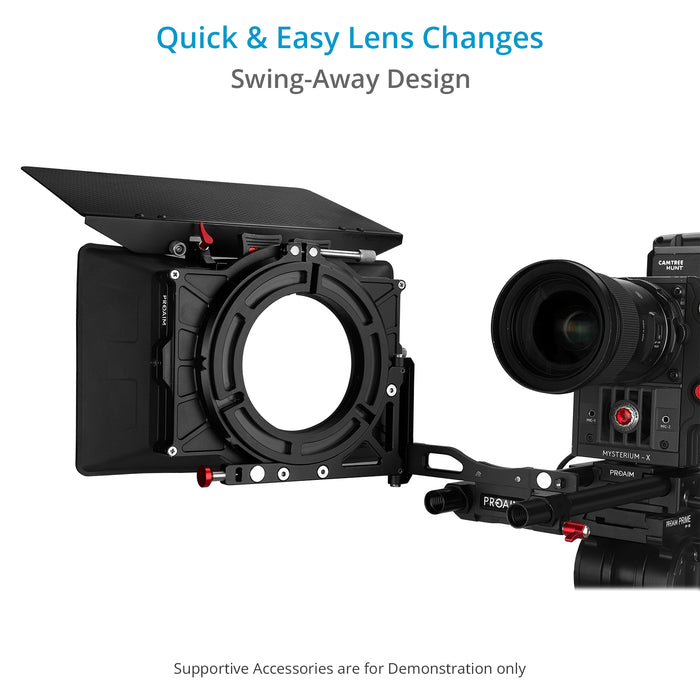

Magnets hold the device in place while enabling swing-away for quick lens swapping; spring pins can be used to secure it.
CALIBRATE THE COLOR ACCURACY

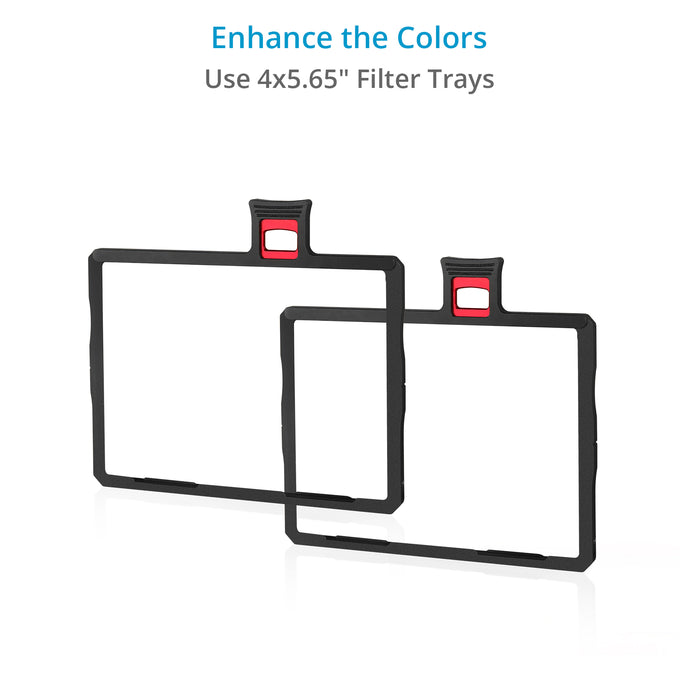

It accommodates two 4 x 5.65" filter trays, and both get clamped on a filter holder at the front of the Matte Box frame.

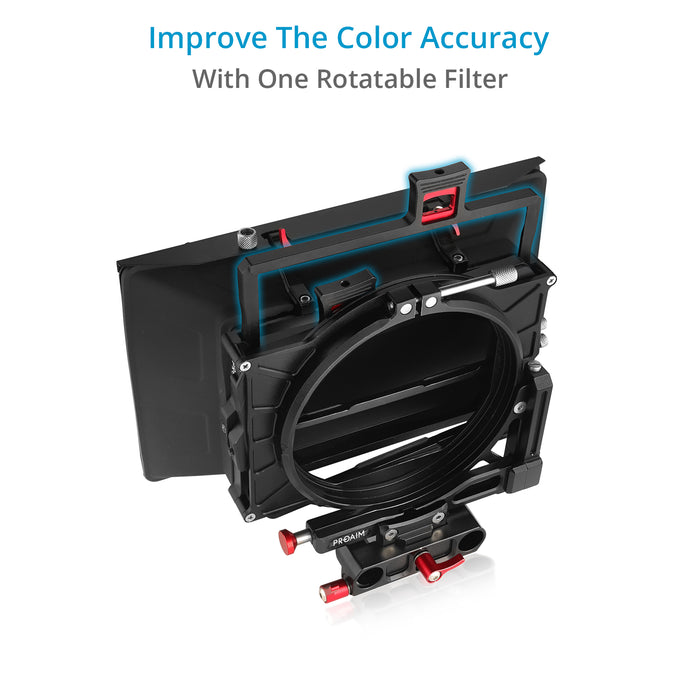

With one rotatable filter tray feature, you can fine-tune the angle of the filter, which will improve color accuracy by limiting reflected light and preventing unwanted glare.
We have included two stops at the bottom to prevent filters from falling off.

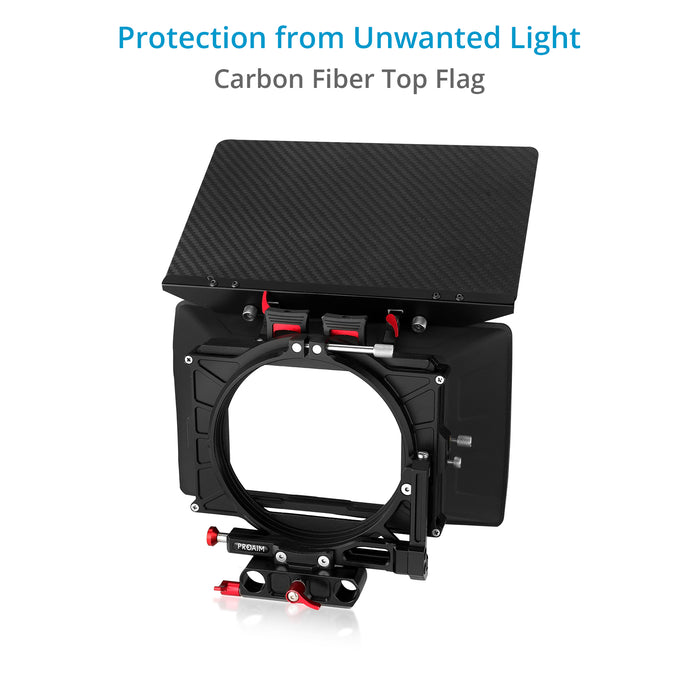

And a removable carbon fiber top flag prevents flares in bright sunlight, and in addition, a fabric knicker secures the area between the matte box and your camera lens to prevent light from peeking through.
Flag: Carbon Fiber
1 x Fixed Stage (4 x 5.65")
1 x Rotating Stage (4 x 5.65")
Trayless Filter Slots
2 x 4 x 4"
up to 124mm in diameter
15 mm LWS / 60 mm Spacing (Slide-On)
1 x Top Flag
Product Weight (Without Packing)
1kg / 2.20lb
Product Volumetric Weight (With Packing)
2.8kg / 6.17lb

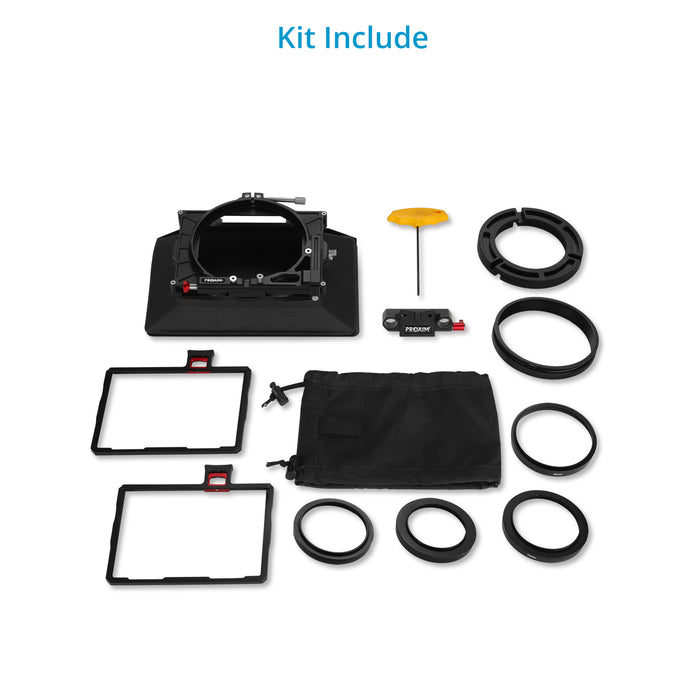

IN THE BOX
Proaim MB 30 SWING-AWAY Matte Box
124-87mm Plastic Adapter Ring
124mm Metal Ring
15mm LWS Rod Bracket
2 x 4 x 5.6" Filter Tray
124mm Fabric Knicker
(OD-87) -(ID-67) mm Threaded Adapter Ring
(OD-87) -(ID-72) mm Threaded Adapter Ring
(OD-87) -(ID-77) mm Threaded Adapter Ring
(OD-87) -(ID-82) mm Threaded Adapter Ring
Guaranteed Fast Delivery
Quick and Efficient
Q&AAsk a Question
Is it possible to attach side flags on this matte box?
No, the side flags can not be attached to the Proaim MB-30 Mattebox because it has Rubber Hoods.
