Proaim Universal Camera Gimbal Tripod Head for Heavy Telephoto lenses

Payload: 22.7kg/50lb | Pan range- 360°

Original price US $131.00 - Original price US $131.00
Original price
US $131.00
US $131.00 - US $131.00
Current price US $131.00
SKU : P-GH-30




Perfect Balancing Support - for Your Telephoto Lens - for Remarkable Results.


01.

Expertly Crafted Gimbal head

Capture the essence of unplanned moments with Proaim Gimbal Tripod Head, a perfect tool for wildlife, sports action, and other moving object photography.
It lets you capture a fast-moving subject such as animals or athletes wonderfully, and it is something you would not be able to achieve otherwise by hand holding the lens.

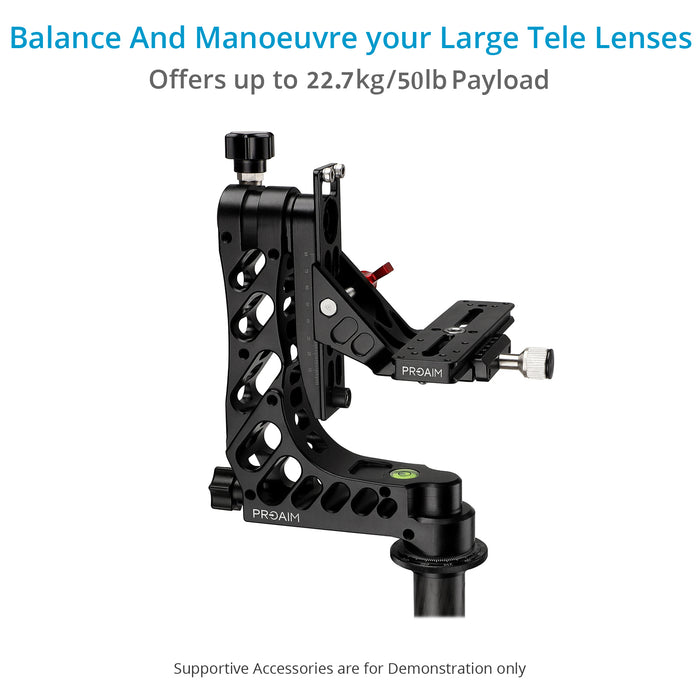

Machined with High-Grade Aluminum, it easily supports and balances huge and heavy telephoto lenses weighing up to 22.7kg/50lb.

Proaim Universal Gimbalcam for Heavy Telephoto lenses
Proaim Universal Gimbalcam for Heavy Telephoto lenses

02.

Smart & Intuitive Design

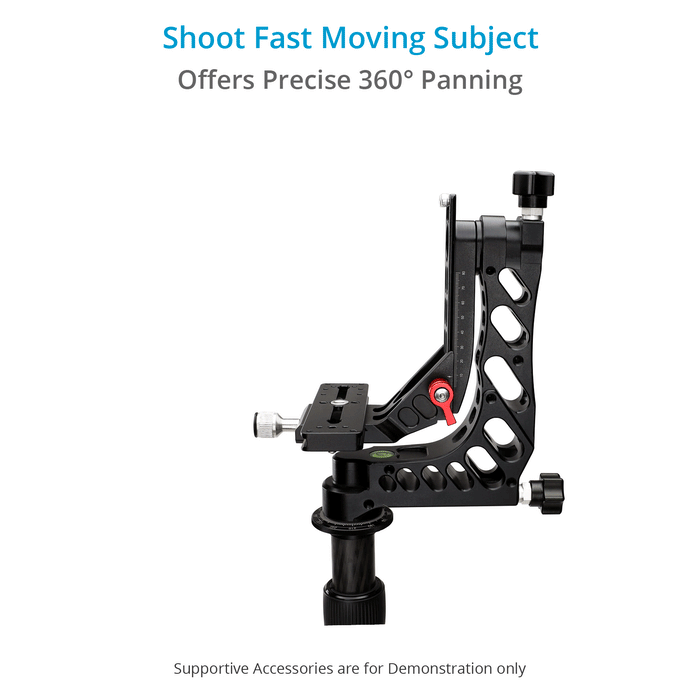

The head pans 360° while keeping the horizon straight using the bubble level at the base of the head.

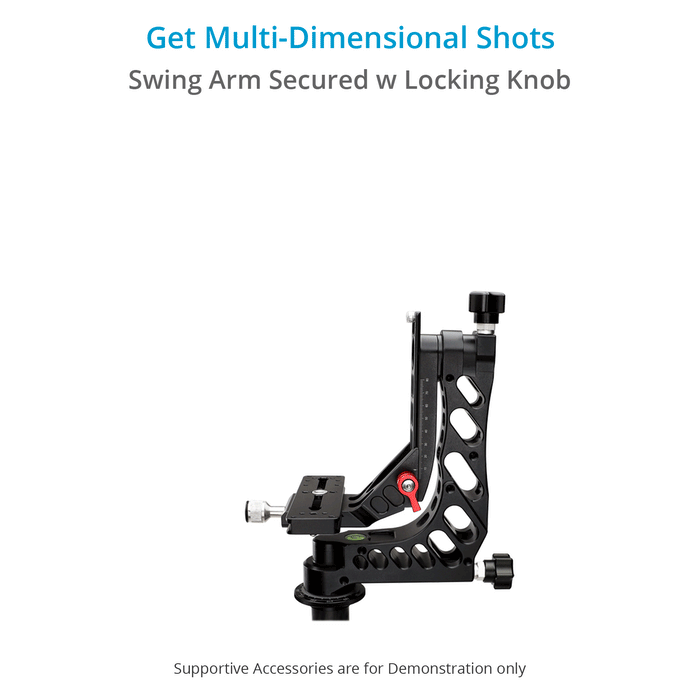

Also, it has a swing arm that tilts horizontally, giving you extreme tilt angles and effortless, balanced shots.
Both panning axis & floating tilt are locked independently using pan & tilt friction knobs.
Also, the head has a 360° panoramic scale that allows easy pan adjustments.

03.

Security & Balance

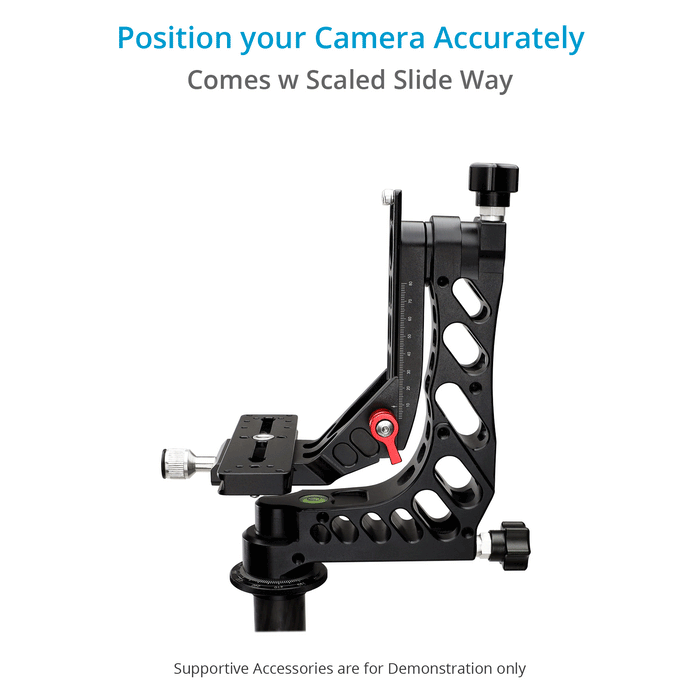

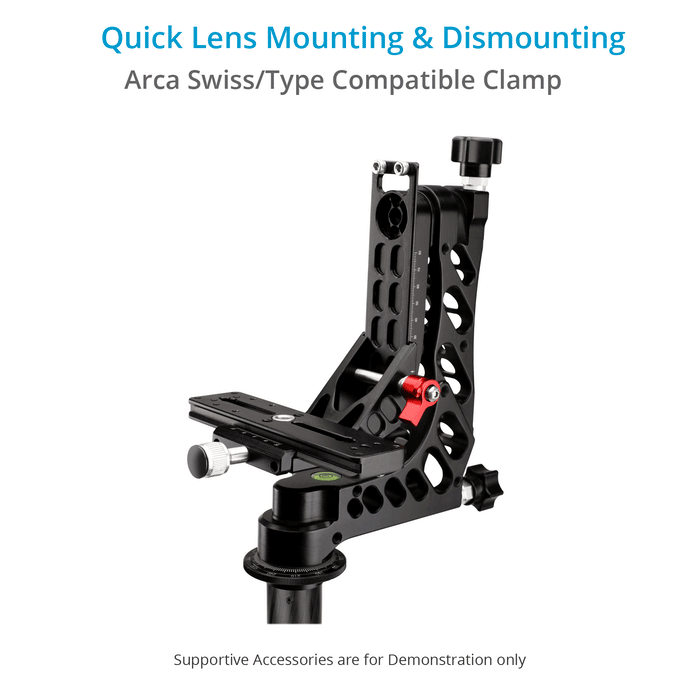

It has an Arca Swiss compatible camera plate clamp that moves up and down on a scaled slideway, secured with a control knob.

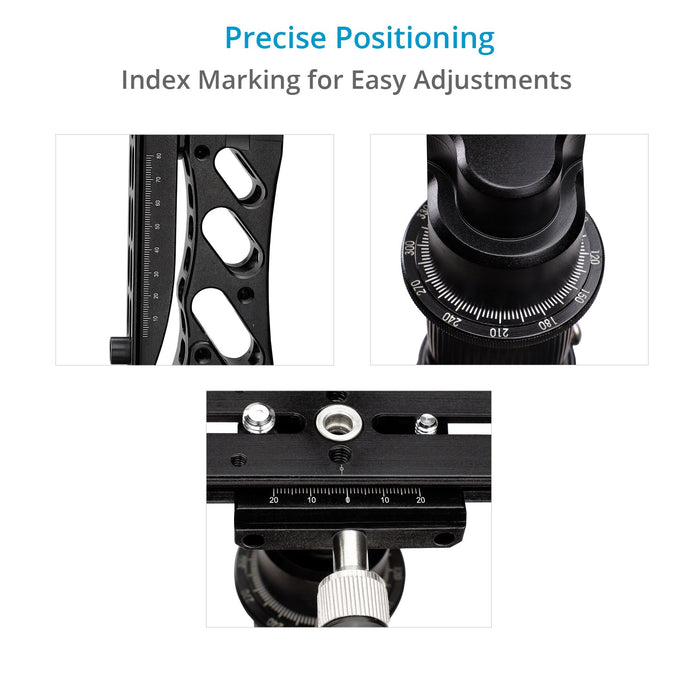

Numbered scales are located on the clamp and the swing arm so that the telephoto lens can have a repeated setup on the gimbal tripod head.
Before use, ensure that the head is vertically and horizontally balanced; the camera must be able to be adjusted at any angle while remaining in position.

Proaim Universal Gimbalcam for Heavy Telephoto lenses

04.

Mounting Options

The Proaim Gimbal Head has a double dovetail plate with 1/4′′-20 and 3/8′′-16 mounting screws fastened by the platform adjustment knob.

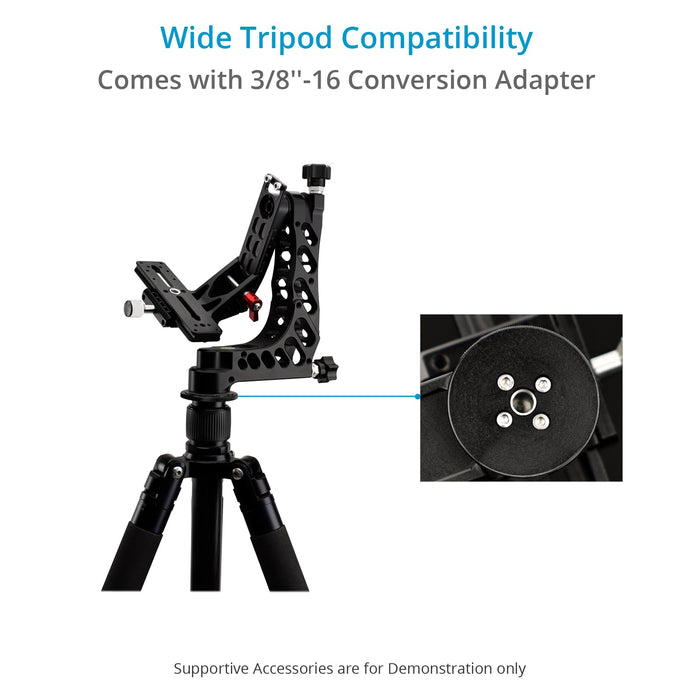

The gimbal head mounts directly to tripods with a 3/8′′-16 threaded mount.
In addition to that, we provide you with the conversion adapter for 1/4″-20 mounting, making it universally compatible with the tripods.

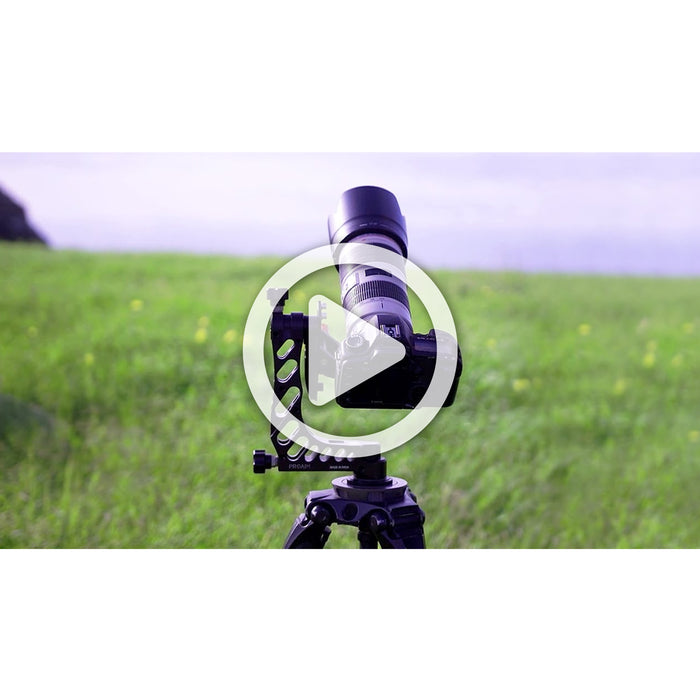

See how the Gimbal Tripod Head Works

Specifications

Construction

  High-Grade CNC Aluminum

Head Type

  Gimbal Head

Payload Capacity

  22.7kg / 50lb

Quick Release Plate Type

  Arca-Type

Panning Lock

  Yes

Number of Bubble Level

  1

Friction Control

  Yes

Pan & Tilt Range

  360°

Base Mount

  3/8′′-16 and Additional Conversion Adapter 1/4″-20 thread

Camera Mount Screw

  1/4″-20 and 3/8″-16

Dimensions(HXW)

  9.8x3.1" / 24.7x7.8 cm

Weight

  1.32kg / 2.91lb

In the Box

Proaim Gimbalcam GH-30
Double Dovetail Plate (6")
Box packing

User Manual
