01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.

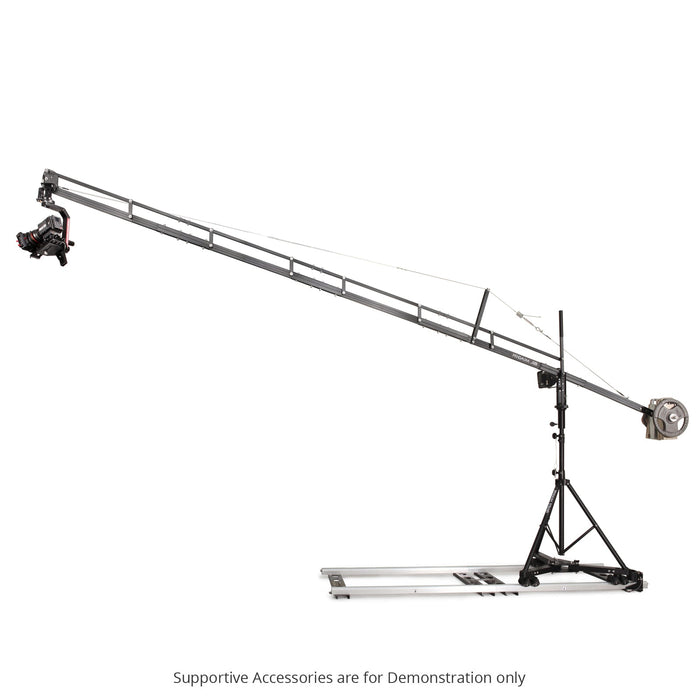

Proaim 18ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.

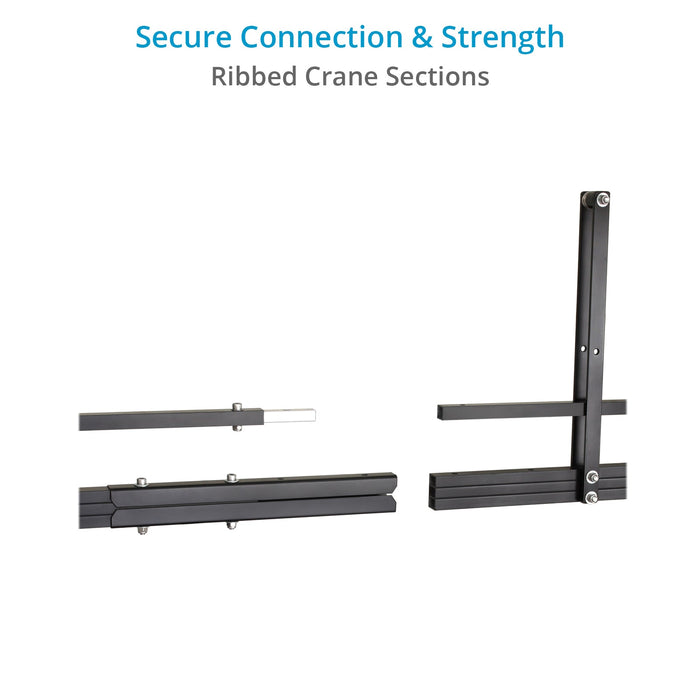

The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.
User-Friendly & Affordable Jib For Indoor/Outdoor Use
High Build Quality. Simple yet Powerful.
02.
EXPERTLY CRAFTED JIB

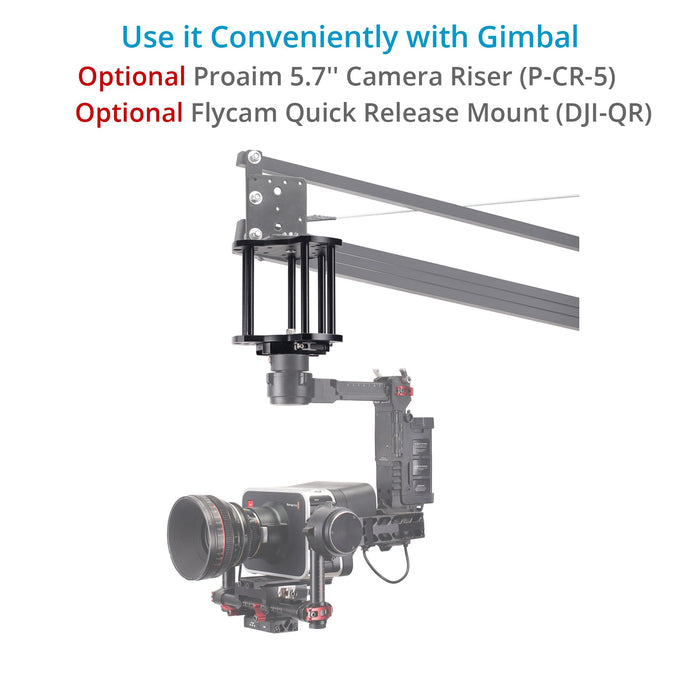

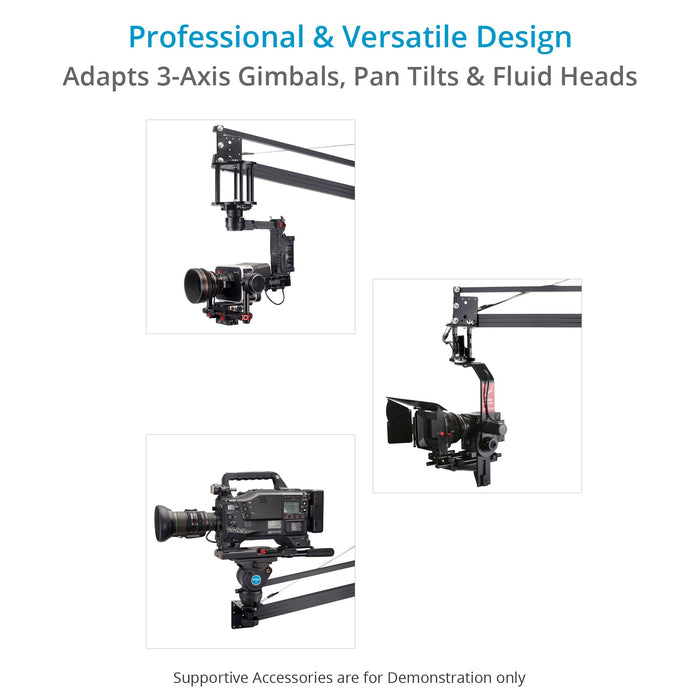

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment.
Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle.

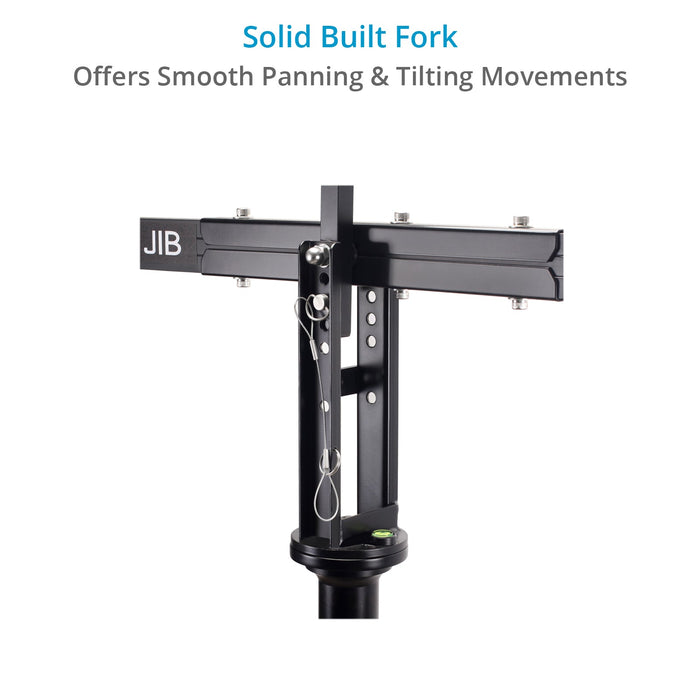

Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements.
Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.

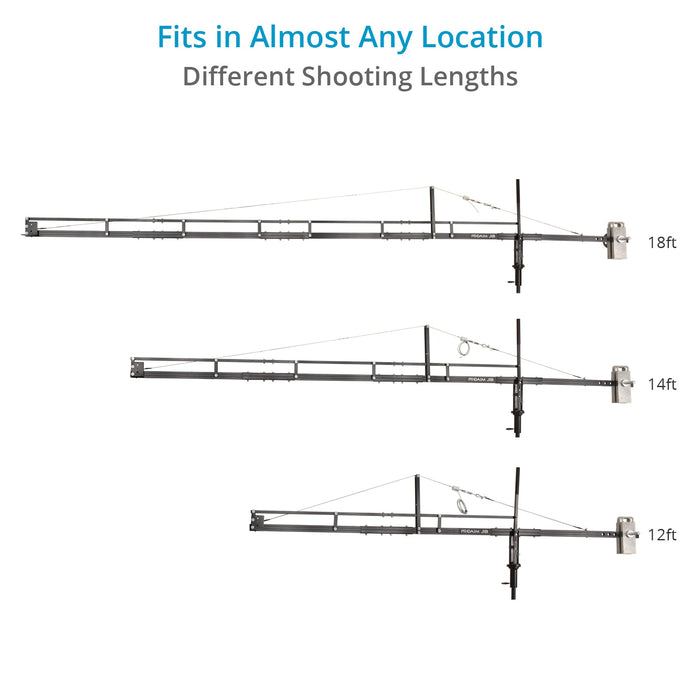

ADAPTABLE LENGTHS
You can adjust the arm length from 12ft to 18ft feet by quickly adding or removing the jib sections.
The ability to change the length allows you to use the Crane in various scenarios.
04.
MOST AFFORDABLE JIB SOLUTION
For rigs under 8kg / 17.6lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 18ft Jib eliminates that concern by providing an excellent jib solution at an economical price.
05.

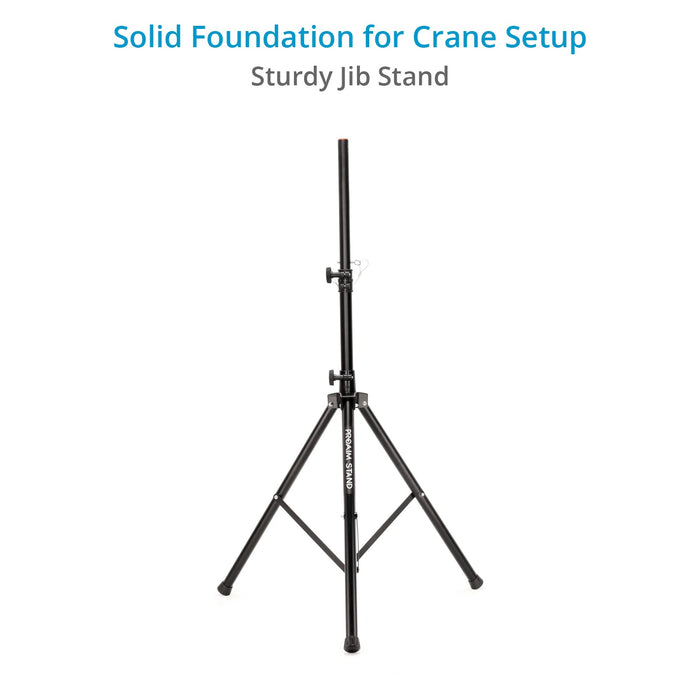

SOLID FOUNDATION FOR THE JIB
This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.
06.
ENHANCE YOUR CREATIVE VISION

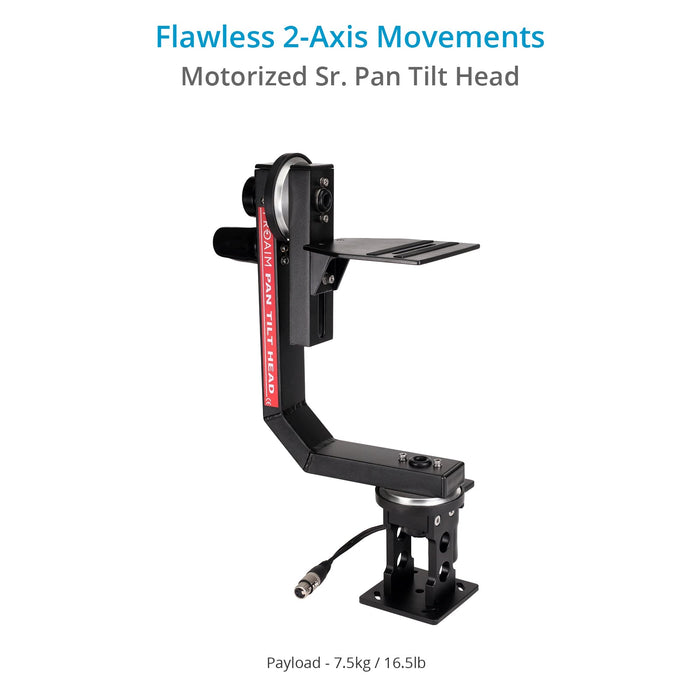

Proaim Sr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5kg / 16.5lb with ease. Creative flexibility is a built-in feature as the Pan Tilt head can be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Sr. Pan tilt is a user-friendly Controller System.
07.
PAN TILT FEATURES
Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 7.5kg / 16.5lb, which is substantially higher than its counterparts.
Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.
08.

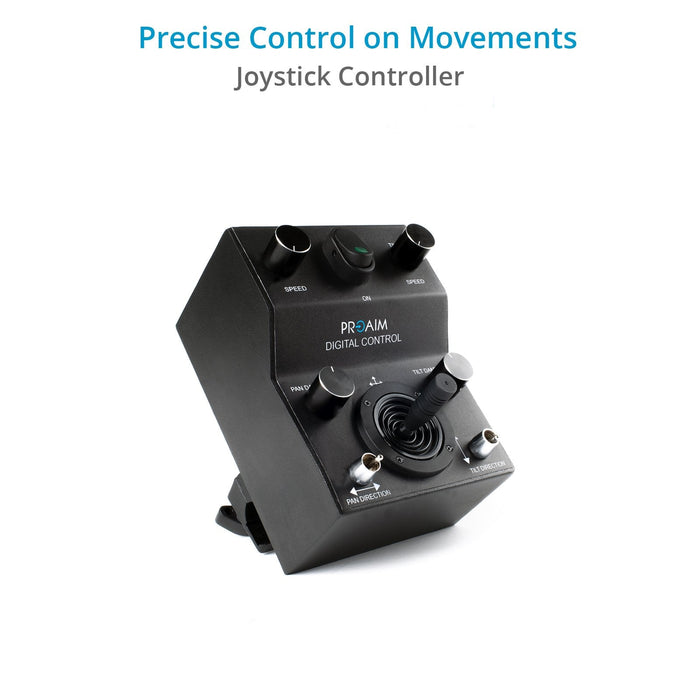

EASY OPERATION
Speed Controller - Adjusts the speed of pan & tilt based on the requirement of the shot.
Damping Control - Prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Dead Spot - Controls sensitivity of joystick on pan tilt head & prevents unwanted movements.
Pan-Tilt Direction - You can reverse the panning & tilting direction as & when required.
09.

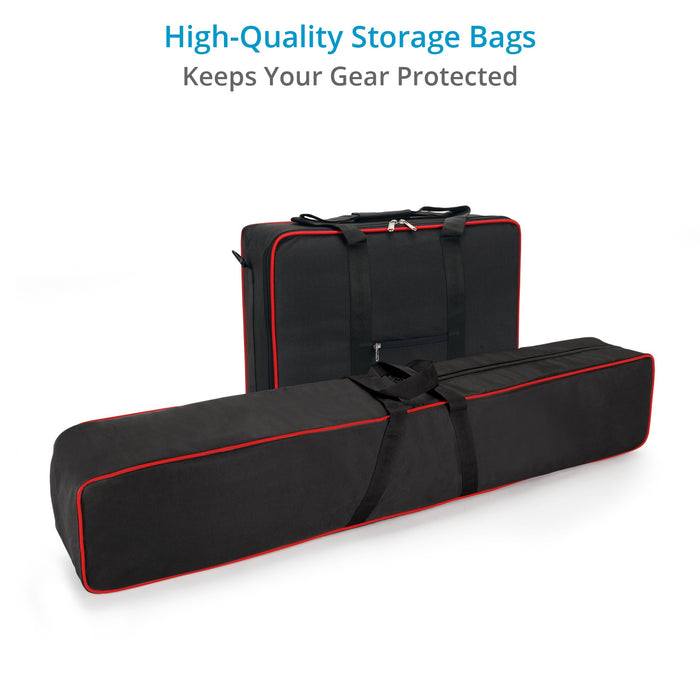

SIMPLIFIED TRANSPORT
The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
SPECIFICATIONS
18' JIB
Construction
Jib Arm: High-grade CNC Aluminum

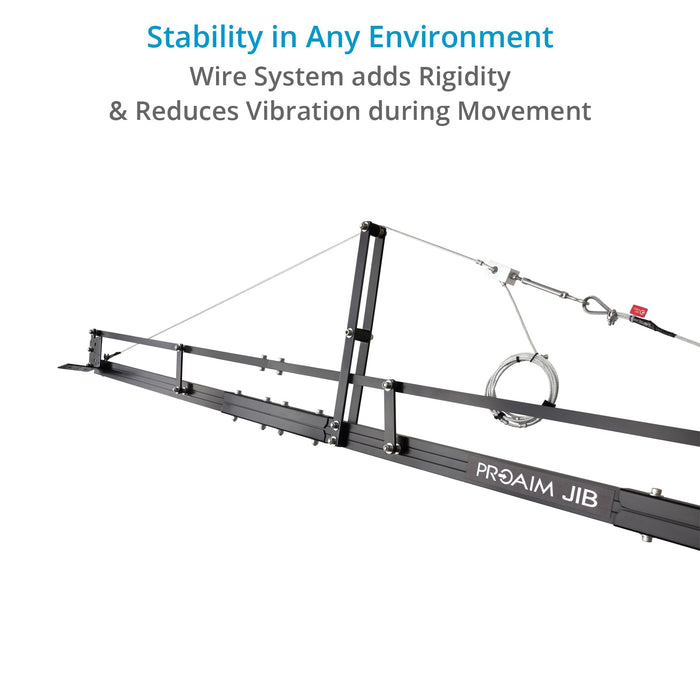

Cable System: Stainless Steel
Weight Holder Rod: Mild Steel
Weight Closures: Mild Steel
Load Capacity
up to 8kg / 17.6lb
Balancing
Self-Balance: 25kg / 55lb
Camera weight: 1kg (x 4kg Counter weight) + 25kg
2.2lb (x 8.8lb Counter weight) + 55lb
Variable Lengths
18ft, 14ft, 12ft
Jib Length
Height Range from ground level: 19ft when stand height adjusted at 5ft
Length from tripod to Camera Mount: 13.6ft
Total jib arm length: 17ft
Jib Arm
Shape: Rectangle
No. of Sections: 5
Length: 3.5' each
Jib Section Jointers: Silver Aluminum
Tilt Lock
No
Pan Lock
No

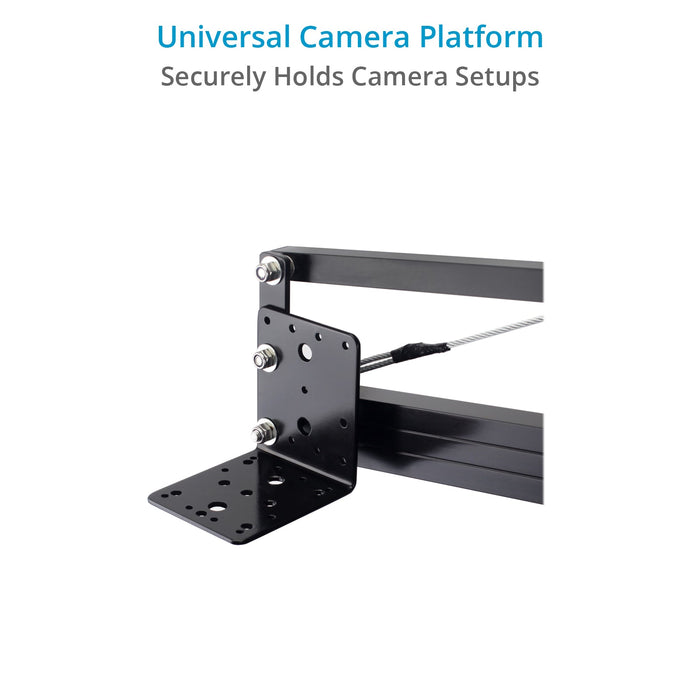

Camera Platform
Camera Mount Plate: Square
Levelling: By Stress Cable (with Adjustable Steel Hook)
Camera Platform Tilt: up to 270 degree
Weight Holder Rod
Length: 355mm
Diameter: 25mm
Weight Closures: 2 pieces
LCD Mounting
Yes
Weight
15kg / 33lb
SENIOR PAN TILT HEAD
Construction
High-grade CNC Aluminum
Load Capacity
7.5 kg / 16.5 lb
Pan & Tilt
Movement: 360°
Speed
Minimum: 6°/sec
Maximum: 51°/sec
Covers 360° at Slowest Speed in : 2 minutes
Covers 360° at Highest Speed in : 7 seconds
Motors
Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
Gears
2 Small: ⌀ 13.5mm (Brass)
2 Large: ⌀ 88mm (Aluminum)
Adjustments
Minimum Height of Head: 18.5" / 46.99 cm
Maximum Height of Head: 26" / 66 cm
JOYSTICK CONTROLLER
Axis: 2
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob
AC Adapter input
AC 100-240V ; Output 12V DC-2A
Cables
Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long
Dimension
Weight
Pan/Tilt Head: 3 kg / 6.6 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm
JIB STAND
Construction
High-grade Mild Steel, Powder-coated
Load Capacity
up to 90kg / 198lb
Length
Maximum: 80"
Minimum: 44"
Collapsible Height
46"
Diameter of Stand Tubes
33mm
Base spread
32"- 48"
Safety Pin
Yes
Weight
4.5kg / 10lb
IN THE BOX
Proaim 18ft Camera Jib Arm (P-18)
Jib Stand (P-JS)
Proaim Sr. Pan Tilt Head with Joystick Box (PT-SR)
LCD Monitor Arm
FREE Storage Bags
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
would this product work without having to purchase the pan tilt and 3 axis gimbal?
Yes, the Proaim 18ft Jib can also work perfectly without the Pan Tilt Head and 3-axis Head. You can accommodate small DSLR/DSLM cameras directly on the camera mount top plate of the Proaim18ft Jib.
-
Could it be controlled by a computer
The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.
-
Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?
Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.
-
Does the Proaim Lineo Portable Floor dolly SKU-P-PRT-D work with the Proaim 18ft camera crane jib Sr SKU-P-18-JS SRPP?
The Proaim Lineo Portable Floor dolly P-PRT-D Â is not compatible with the Proaim 18ft Camera Crane Jib, Stand, Sr. Pan-Tilt P-18-JS SRPP. Â <br />The Proaim Swift Dolly SWFT-DL is compatible with this package.
