A Perfect Combination of Price, Performance & Features
PROAIM presents a fully professional 24ft Fraser film production package, a perfect filming solution to increase your production value. Fraser, a DV & Eng jib system has numerous features to support & offer great performance. It is compatible with many types of DV, HDV & broadcasting cameras.
The triangular jib crane with high-intensity aluminium alloy structure fits smoothly & securely with one another providing super rigidity and strength.Accompanied with various other benefits, it completes the package which is designed to enhance the cinematic quality.
"WHAT YOU SEE IS WHAT YOU GET "
Exclusive of Weights
NOTE: The colour of the Dolly Wheels may vary according to availability.
Features that Makes the Fraser a Distinctive Crane

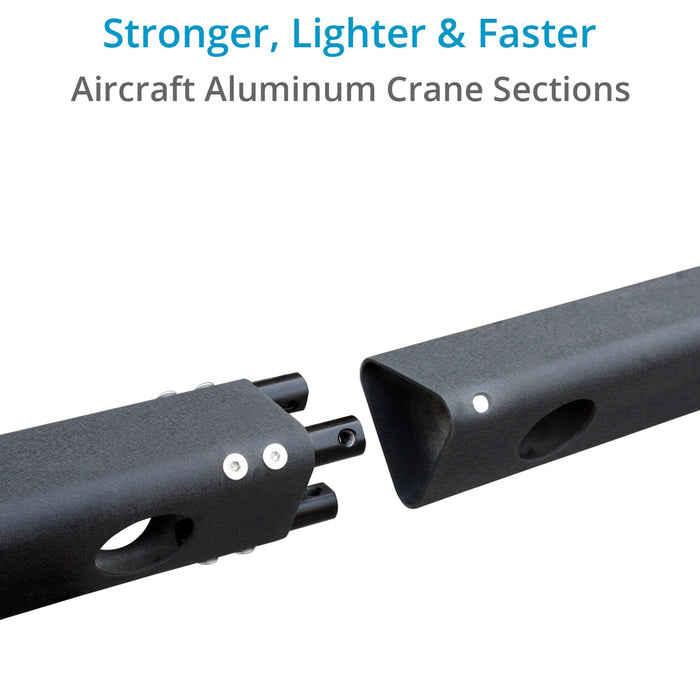

The Crane Sections are constructed from Aircraft Aluminum that provides the structure 4x strength yet keeping the crane lightweight. Sections get connected with double lock system that eliminates any slack or shakes even at 24ft.

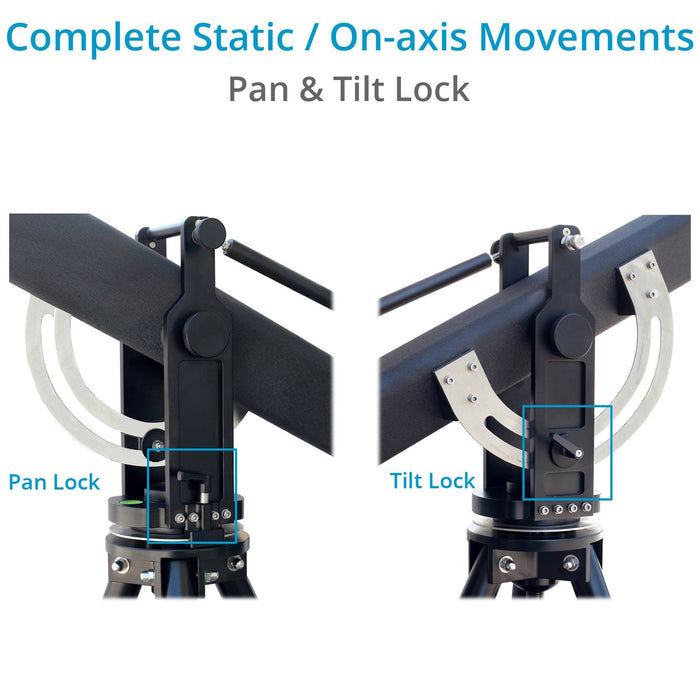

CENTRAL FORK WITH PAN-TILT DISC LOCK
The Fork used in the Fraser provides a wide degree of panning and tilting and has a solid build which enables a nice smooth shot. The disc lock enables the operator to move the crane on one axis when required or take completely static shots without worrying about unnecessary movements.

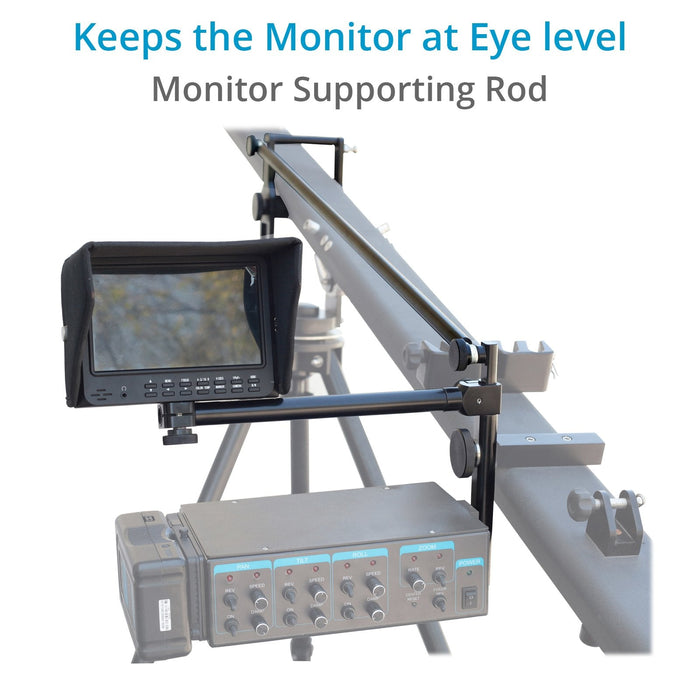

MONITOR SUPPORTING ROD
The rod automatically tilts as the crane arm moves which helps the camera operator to view the monitor though the crane is lifted in any direction.
Fraser 4TR can be used in shorter lengths that meet your various shooting requirements.
Experience the variety of shots with different angles.

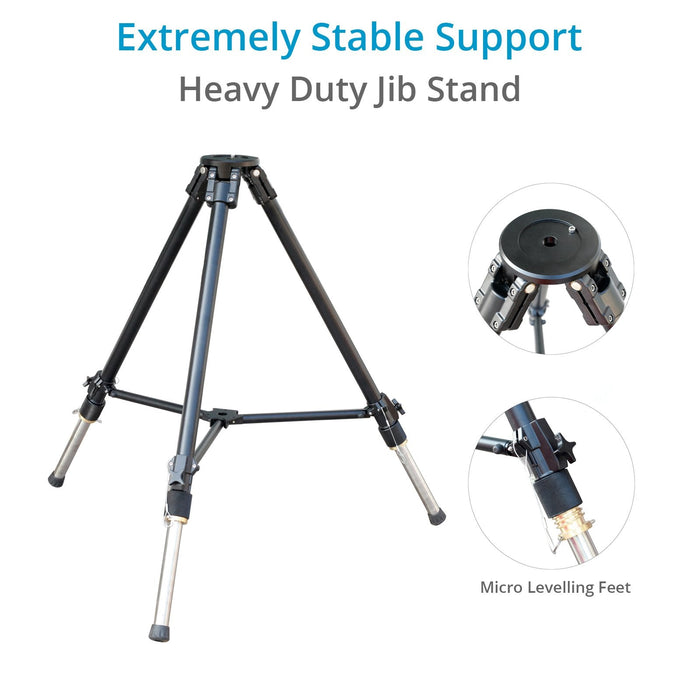

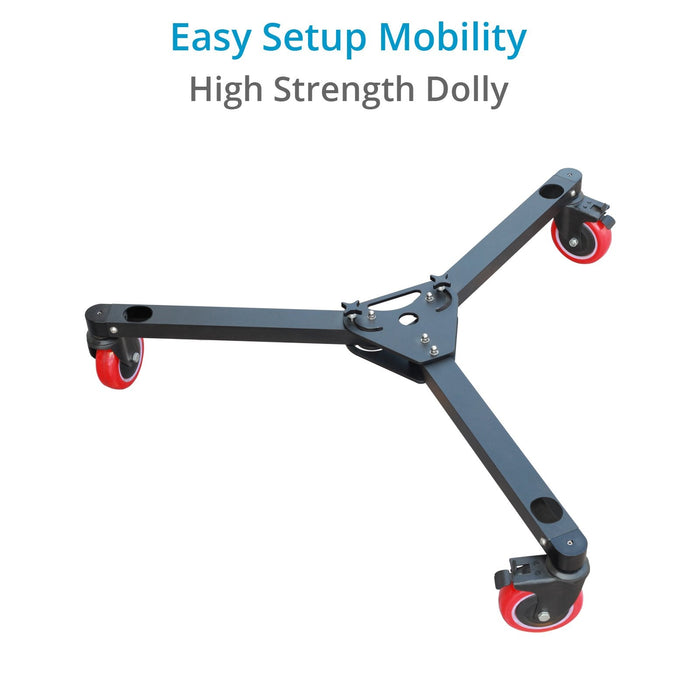

DOLLY & JIB STAND
The jib-stand locks easily, safely & tightly into the dolly. Constructed from solid aluminum, the dolly & the jib-stand provide a stable foundation for stable shots. The dolly gives you the flexibility to move the crane as & when required. Being telescopic, the stand’s height can be adjusted according to shooting requirements. Furthermore, the stand can directly be used on ground without dolly.
The supportive accessories are for Demonstration purpose.
- Weighing Capacity of Jib: 15kg / 33.06lb
- Jib Arm Reach: 7m/19ft 6 inch
- Jib Arm: 6 Sections
- Jib Arm Material: High Grade Aluminum HE30
- Jib Arm wall Thickness: 3.5mm
- Finish: Black Powder Coated
- Pan & Tilt Range: Pan: Unlimited
- Crane Pan Lock: Yes
- Crane Tilt Lock: Yes
- Tilt: ±60°
TRIPOD STAND (TP-GVTY-01)
- Weight Capacity: On Minimum Height 250kg/550lb
- Weight Capacity: On maximum height 180kg/396lb
- Maximum Height: 1200mm
- Minimum Height: 820mm
- Pipe dia: 42mm
- Micro Adjustment: Yes
- Folded Dimensions: 940mm
- Product Weight: 11.320kg/25lb
ANCHOR DOLLY (DL-ANCR-00)
- Folded Length: 762mm
- Wheel Diameter: 152.4mm
- Load Capacity: 500kg/1100lb
- Wheel Lock: Yes
- Product Weight: 11.73kg/25.8lb
- (Box:1) Stand Dolly and Accessories: Vol Weight 91.56kg/201.8lb & Gross Weight 70kg/154.3lb.
- (Box:2) Jib Sections: Vol Weight 91.56kg/201.8lb & Gross Weight 66.8kg/147.2lb
