After understanding the shooting needs of amateur and pro as well, Proaim brings its versatile Grand Movie Making Kit, a full fledge production kit for your filming projects and adventures. It is designed to extend your reach and to explore every unexplored angle. There is lot more in the package, a rugged tripod stand that acts as a supporter for your steady shots, durable pan-tilt head to capture every creative angle, tripod dolly for dynamic moving shots.
"WHAT YOU SEE IS WHAT YOU GET"
(Revised on 12-Aug-2017)
EXCLUSIVE OF WEIGHTS

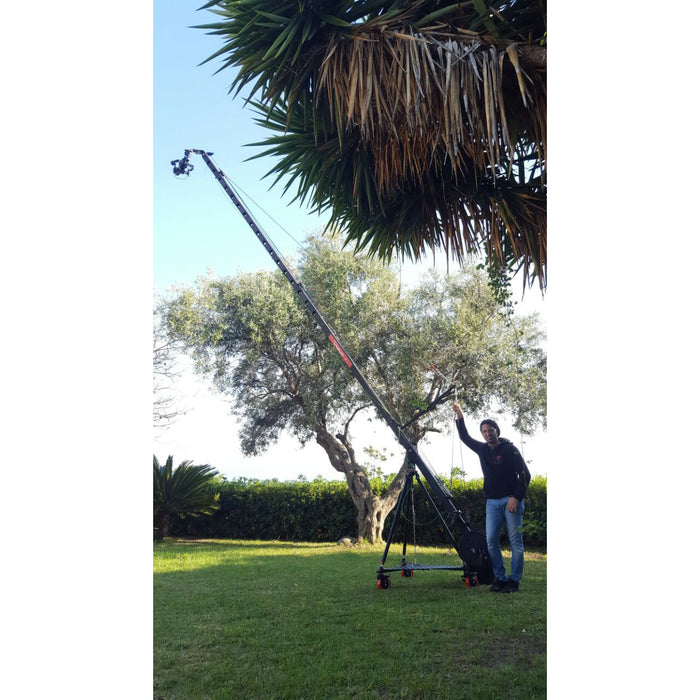

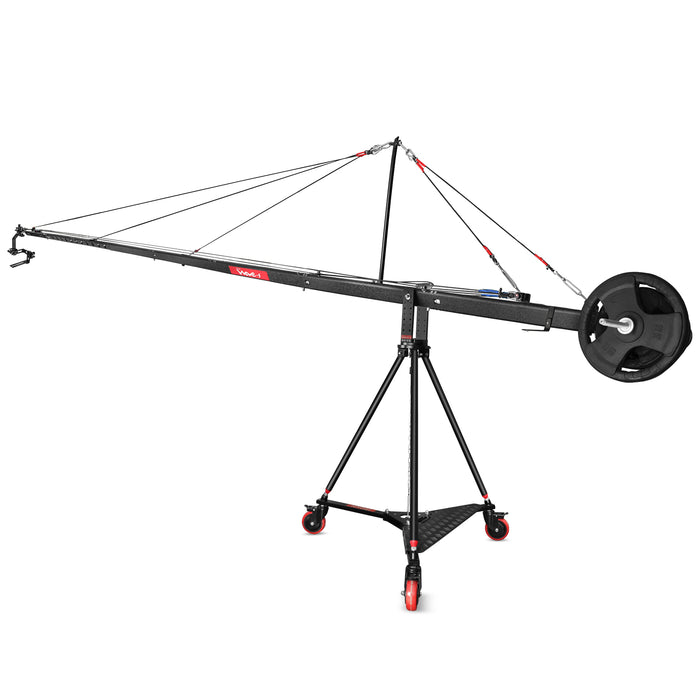

PROAIM 24FT WAVE 5 JIB CRANE:

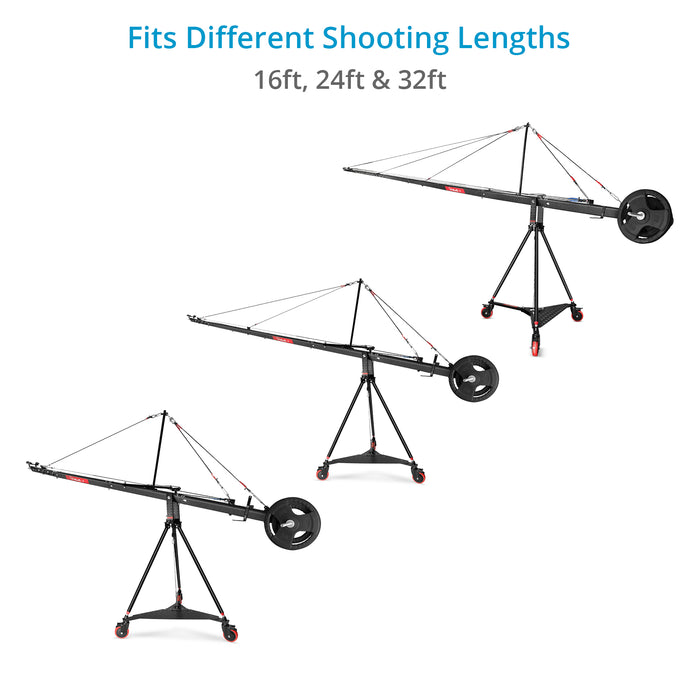

This High Grade Aluminum constructed camera crane jib arm is expandable from 4ft (one section) to 24ft (six sections) in 4ft increments. As a quality constructed reinforced movie camera crane, it should last a lifetime.

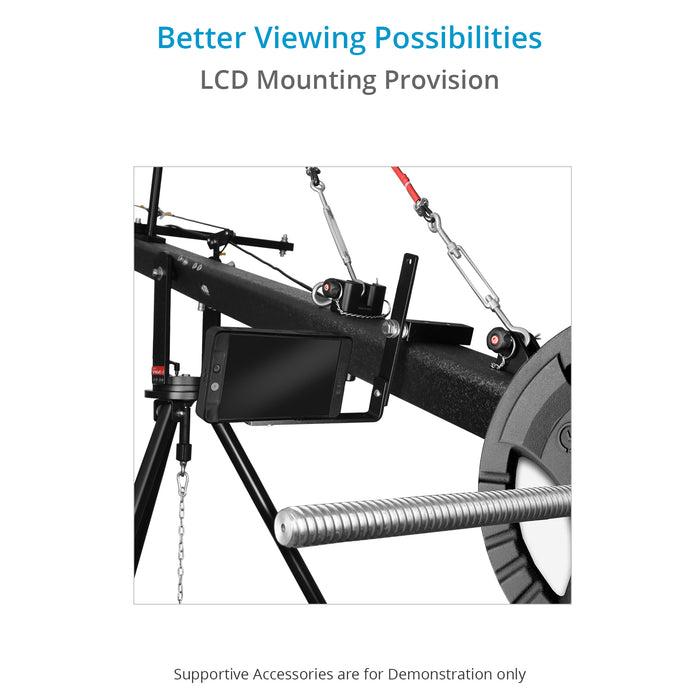

- The Rear Control Center has provisions for mounting the Joystick Control box & Zoom Controller.
- Jib Arm connecting bars securely fits into another one with top screw that guarantees its double security, strength and reliability.

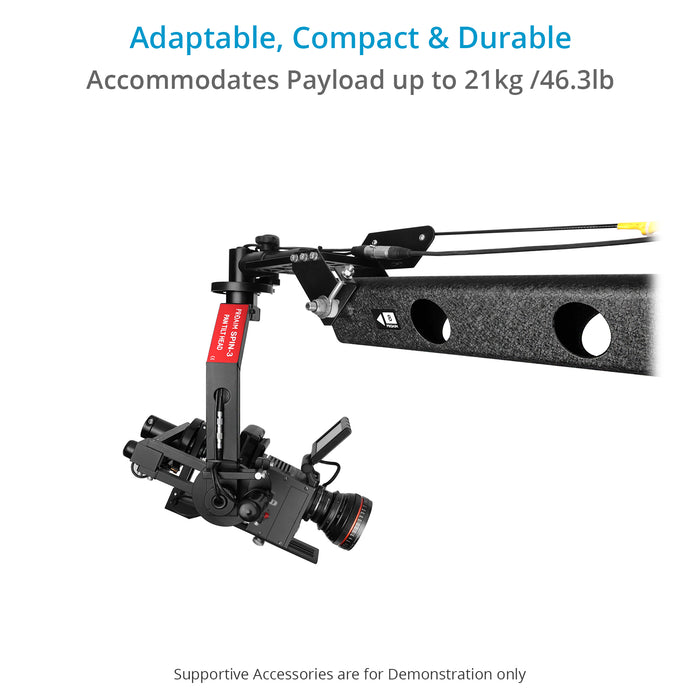

FLEXIBLE HEAD MOUNTING
The Spin-3 pan tilt head provided in the package, gets easily attached to the head mounting in no time that saves your production time. This high strength Head mounting is designed in such a way that it is also compatible with most of the motorized heads.

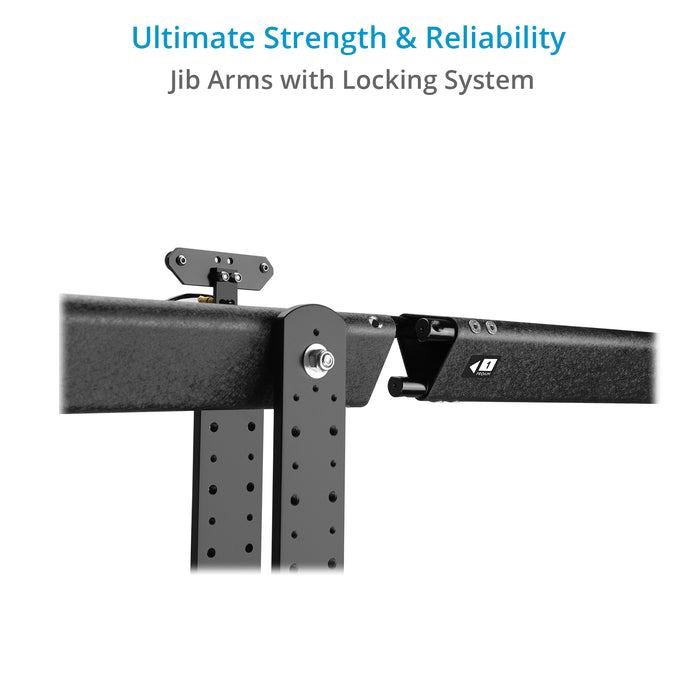

ARM CONNECTING BARS
Each section fits smoothly and securely into another one. For better protection, it is fastened by a screw at the top which ensures better safety of your movie camera crane. Double security features guarantees its strength and reliability.
Custom extruded sections connects smoothly & securely with one another

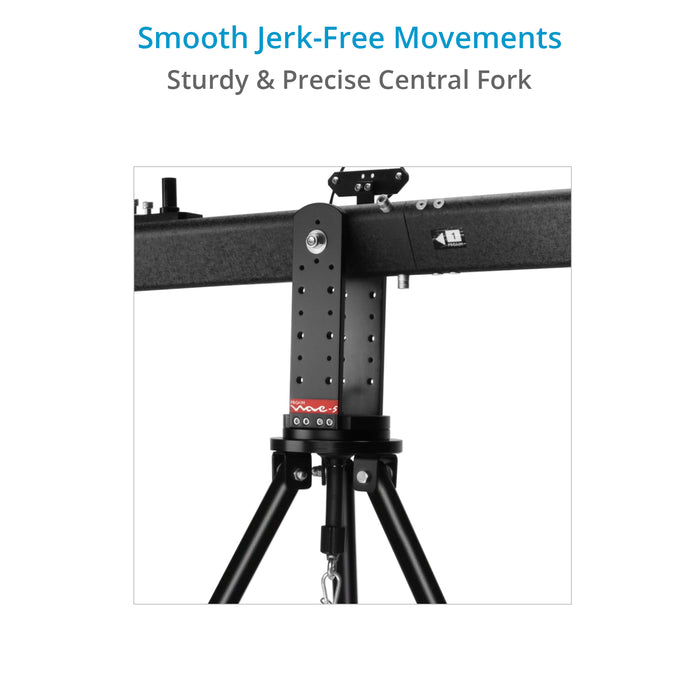

TRIPOD STAND (W5-STD)
The Heavy Duty Tripod Stand (W5-STD) is a rock solid, robust and long lasting camera crane stand made of mild steel, with an incredible height range of 42". It has a strong hub assembly. The feet are solid with double locking knobs.
Heavy duty stand ensures steady shots

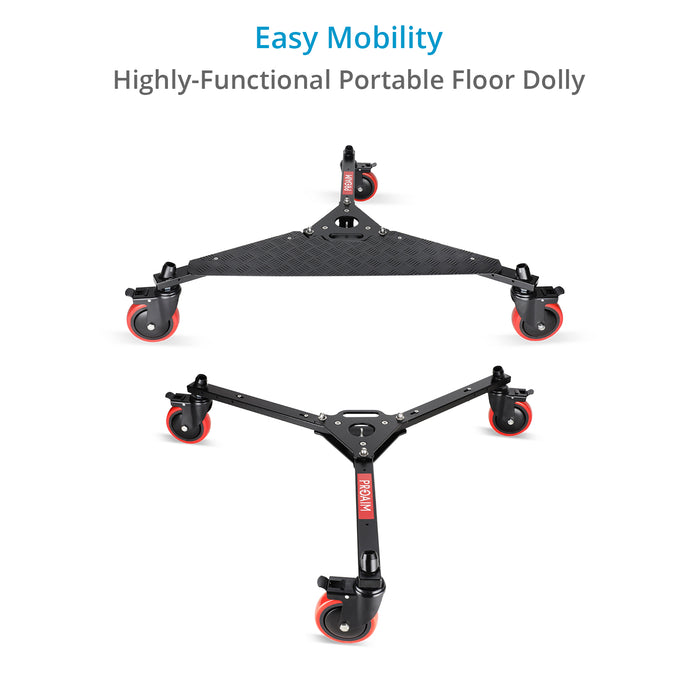

D-37 FLOOR DOLLY
D-37 Pro Dolly is the most portable camera dolly in the market. It's a compact, lightweight and versatile pro dolly best suited for supporting all heavy duty stands.
Industrial grade aluminum dolly can bear heaviest of equipment
- Rubber wheels with bearings allow for smooth movement
- It folds to a compact size for easy transport
- Build-in wheel lock provides stability to the system even in rougher terrains
- Pro Dolly setup supports heavy weight
- Quality designed and engineered

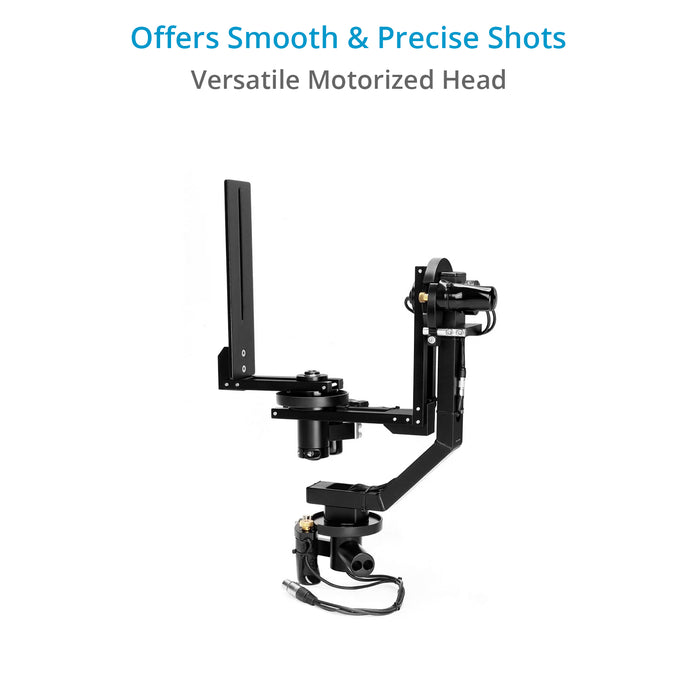

PROAIM SPIN-3 (3-AXIS) MOTORIZED DUTCH ROLL PAN TILT HEAD
Controlled by a joystick remote, the pan, tilt & rolling movement of the head works on 12 volt power and easily accepts external 12VDC battery power through the included 3 meter long 4pin XLR cable. This 3-Axis spin Roll motorized camera head is a solid built unit with precision and long life capability designed in. The frame is made of a durable high grade metal. In Pan Tilt mechanism, XLR cables are built into the motor, gears on the head are solid quality and the pan tilt head is sheathed in plastic to protect the finish.

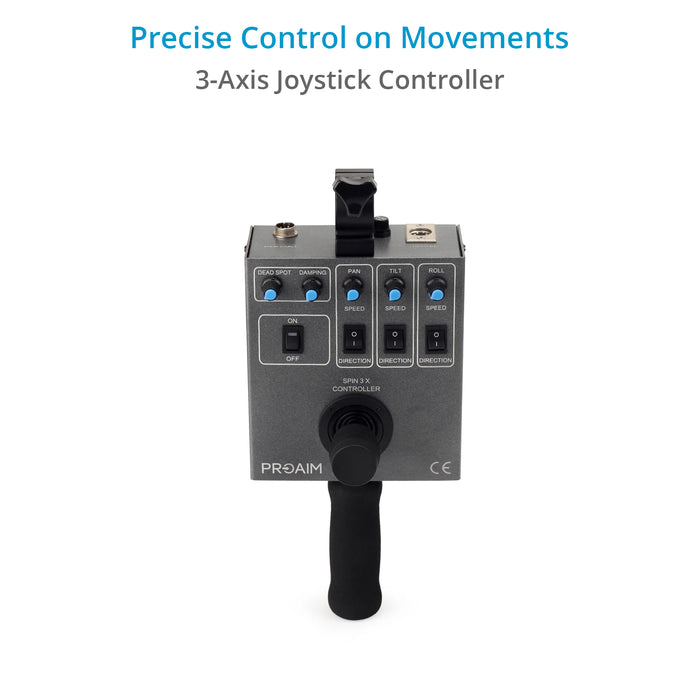

PAN TILT JOYSTICK CONTROL SYSTEM
- The Proaim™ Pan-Tilt Head comes with a remote Joystick controller system, 10 mtr. Long Cable and AC Adapter.
- You may run the Joystick from a flat surface like tabletop or attach to the boom arm of Jib crane.
An exquisite body with intuitive control
SUPERB PROPORTIONAL CONTROL
- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive
- Small movement – less speed.
- More movement – more speed.
Allows filmmakers to play with new angles
The Supportive accessories are for demonstration purpose only.
|TRIPOD STAND (W5-STD)|
|SPIN-3 AXIS PAN TILT HEAD|
2- Brass Small Gears (Dia- 14mm),
1- Brass Small Pan Gear (Dia-22mm)
6 Pin XLR
- 32ft/10mtr Wave 5 Jib crane (Revised on 12-Aug-2017)
- Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
- Tripod Stand (W5-STD)
- D-37 Floor Dolly
