Stable and Sturdy
Solid Aluminum Construction ensures stability even when loaded to the max payload of 500kg/1100lb.
Compact and Quick
Tool-less Assembly/Disassembly within 2-3 minutes. Quickly Packs down to a 7" thick rollable case.
Multiple accessories are available to calibrate this Cart into precisely what you need.

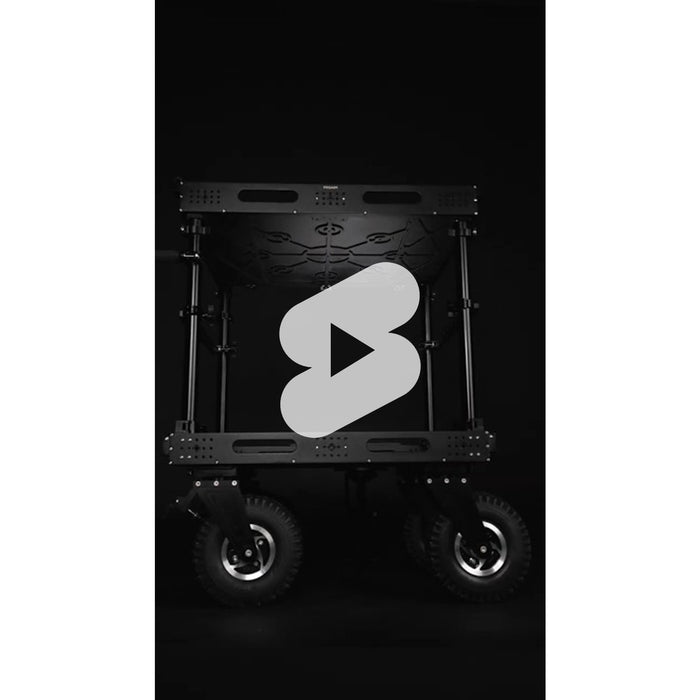

See how the Atlas V2 Cart Works
High Grade CNC Aluminum
up to 500kg / 1100lb
Leg outer diameter
Assembled (ATLS-V2-38): Length 38'' Width 25.75'' Height 41”
Assembled (ATLS-V2-48): Length 48'' Width 25.75'' Height 41”
¼" -20, 3/8" -16 threads, Arri Standard Nato mountings
Cross-Bar Mounting Diameter
Diameter – 10 inch
Width – 3.5 inch
Alloy Rim Diameter – 4 inch
Wheel Pressure 30 psi
Product Weight (without packing)
Atlas V2 38" - 53 kg / 116.84 lb
Atlas V2 48" - 58 kg / 127.86 lb
Product Weight (with packing)
Atlas V2 38" - 63.02 kg / 139 lb
Atlas V2 48" - 68.6 kg / 151 lb
Atlas V2 38" - 78 x 110 x 40 cm / 31" x 43" x 16"
Atlas V2 48" - 79 x 137 x 31 cm / 31" x 54" x 12"
In the Box
4 x Supporting Rods
2 x Accessory Cross Bars
4 x Pneumatic Tyres
2 x Handle

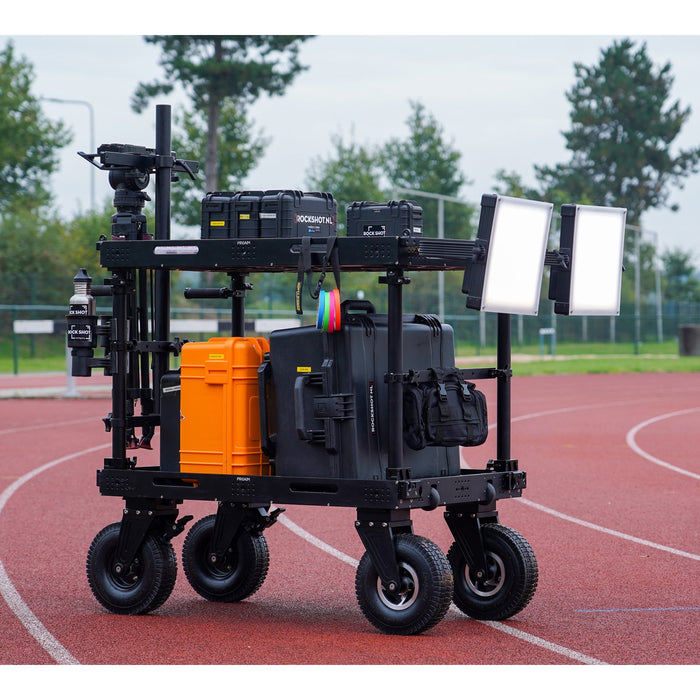

Highly Customizable Film Cart

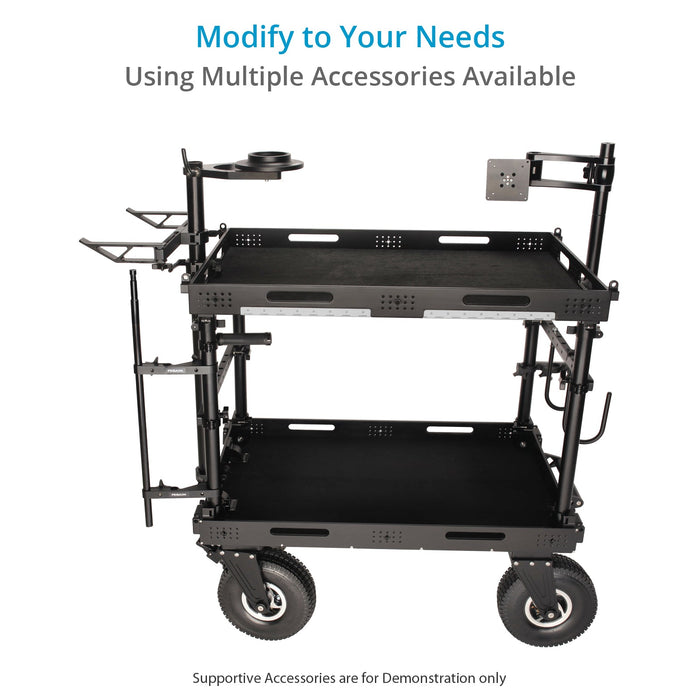

The Proaim Atlas V2 Cart is much more than a standard camera cart. Modular by design, it allows you to attach gimbals, monitors, baby pins, laptop plates, and anything else you might want to use with it. Choose from over 50 different accessories and you can transform it into a DIT Cart, a Sound Cart, a Lighting Cart or even an Equipment Dolly.

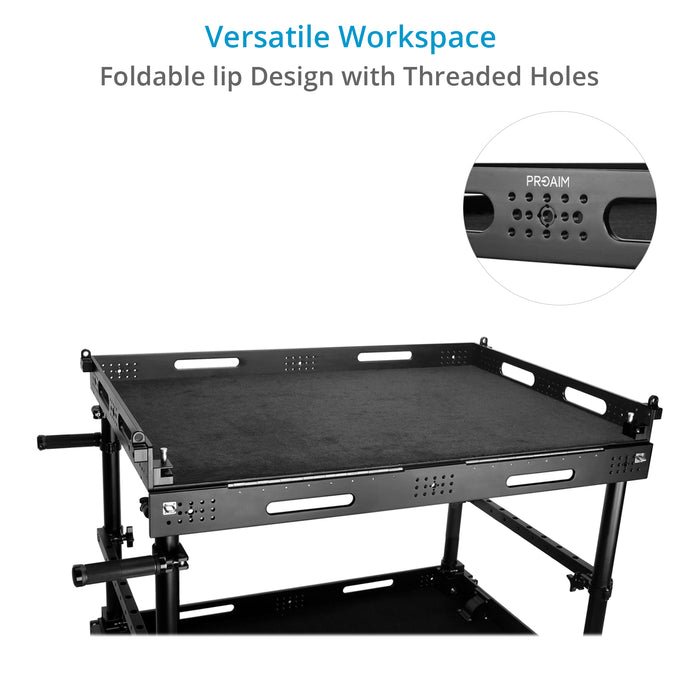

The built-in ¼" -20 and ARRI standard 3/8" -16 threaded holes offer creative mounting options on the Cart.
Very Convenient Design
The Proaim Atlas V2 Cart has been designed with the convenience of its user in mind. The drawer is affixed to your cart by drilling holes into the cart, ensuring a solid and secure attachment.
An average Assembly/Disassembly Time of 2-3 minutes, Tool-less Design and its ability to Collapse into a Compact 7" Thick Suitcase makes it the most user-friendly Cart out there.
Simply put, the combination of these features helps you in saving the precious time on-set and makes it super easy to travel.

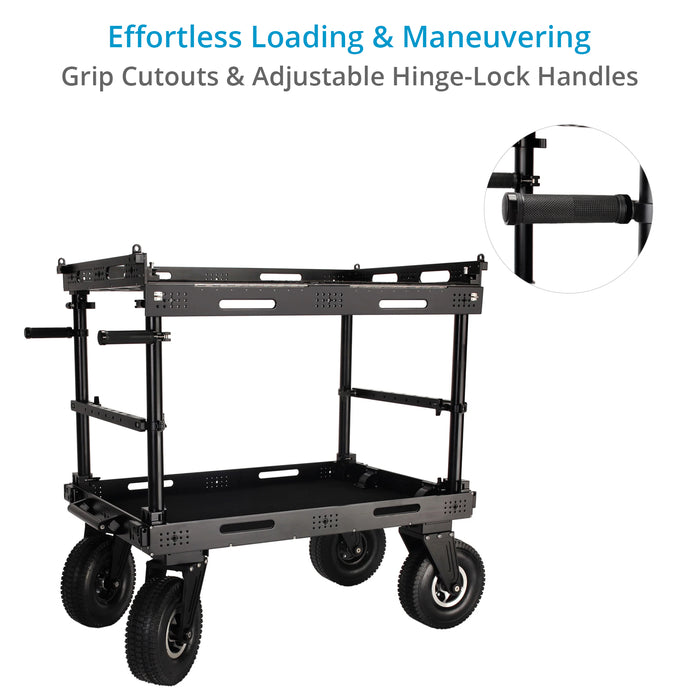

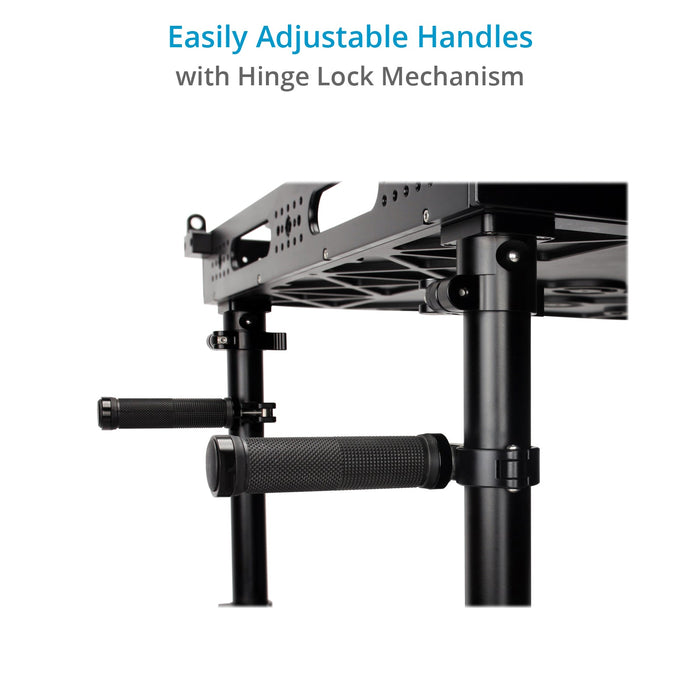

New Adjustable Handles
The new and improved handle grips incorporate a hinge locking mechanism that allows you to remove or adjust the position of the handle quickly and easily without removing the top shelf. It helps in creating leverage needed while lifting the Cart quickly over obstacles, stairs or other incline surfaces.
Advanced Wheel System
The Proaim Atlas V2 comes equipped with 10" Pneumatic wheels and 100% sealed bearing housing, which ensures that your Cart endures any load placed upon it and still roll incredibly smooth and silent.
The use of Pneumatic wheels instead of the industry-standard rubber wheels makes sure that the overall setup remains light, smooth and sturdy.
2 x 360° rotatable rear wheels and two non-rotatable front wheels make cart steering extremely smooth and easy.

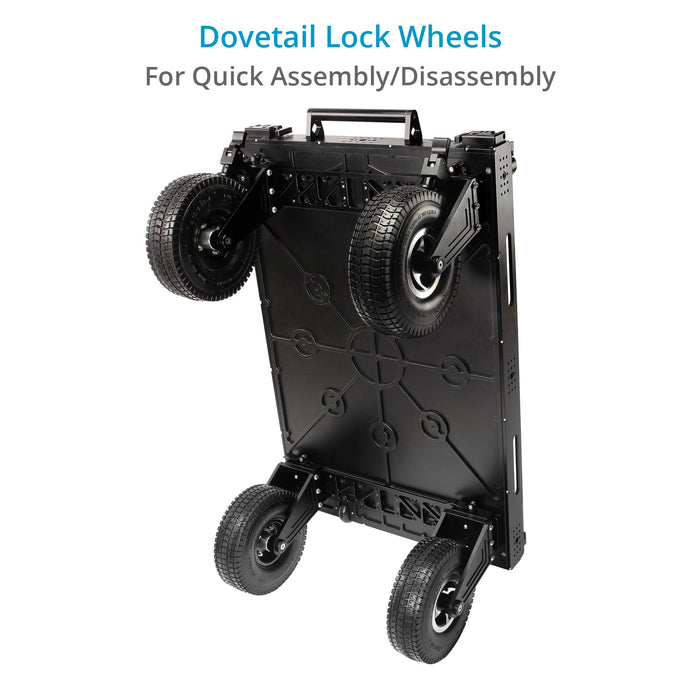

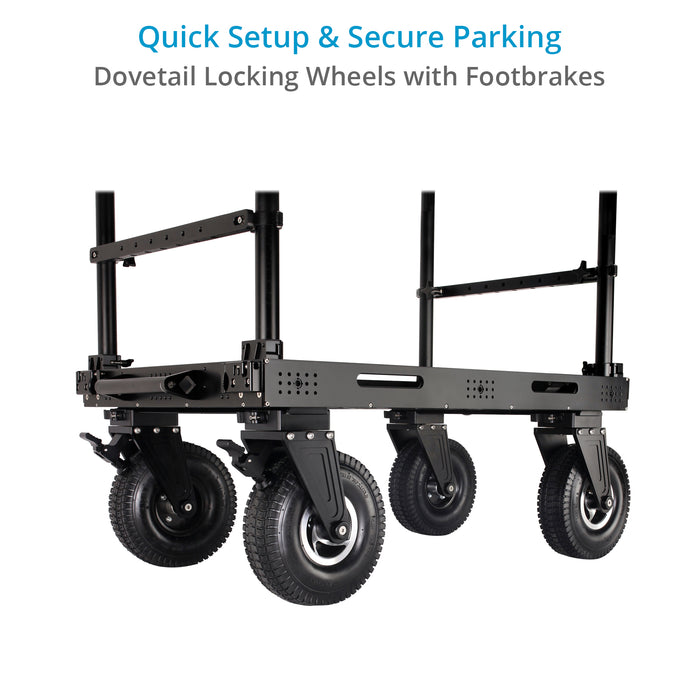

The wheels attach to the Cart via a Dovetail Mechanism that ensures quick assembly and disassembly.
Always in Control
The specially designed foot brakes of the Atlas V2 Cart keep it completely steady, stable and secure for reliable parking and eliminating your worries even when you are not close to the Cart. The brakes are such that they don't become loose over time even when the tires experience some wear and tear, and the thickness decreases.

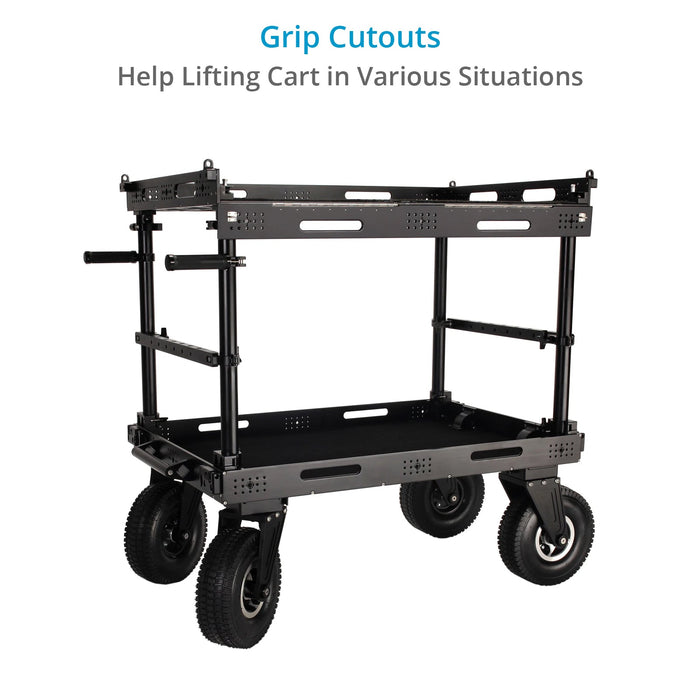

The Atlas V2 features new Grip Cutouts on both the shelves of the Cart. These allow you to lift the Cart from both sides and load it into the truck or other vehicles. You can also use these to lift the Cart over obstacles or move it from one place to another.

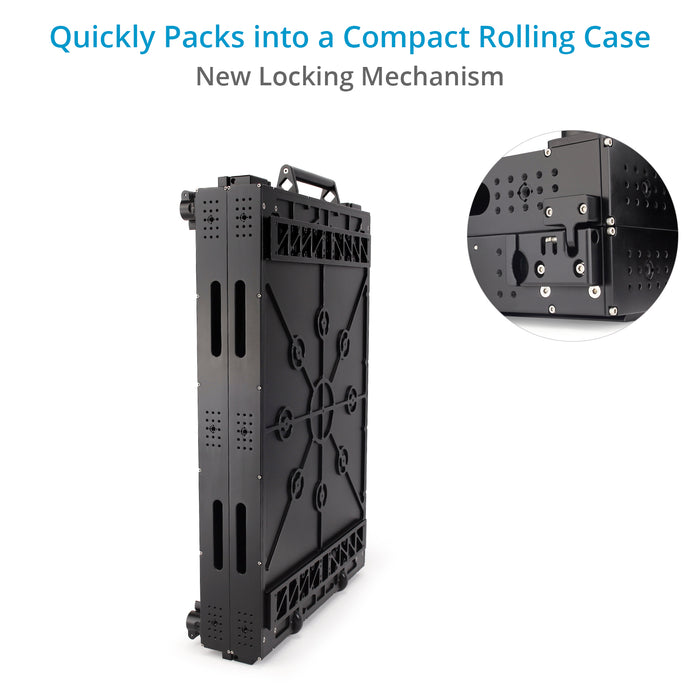

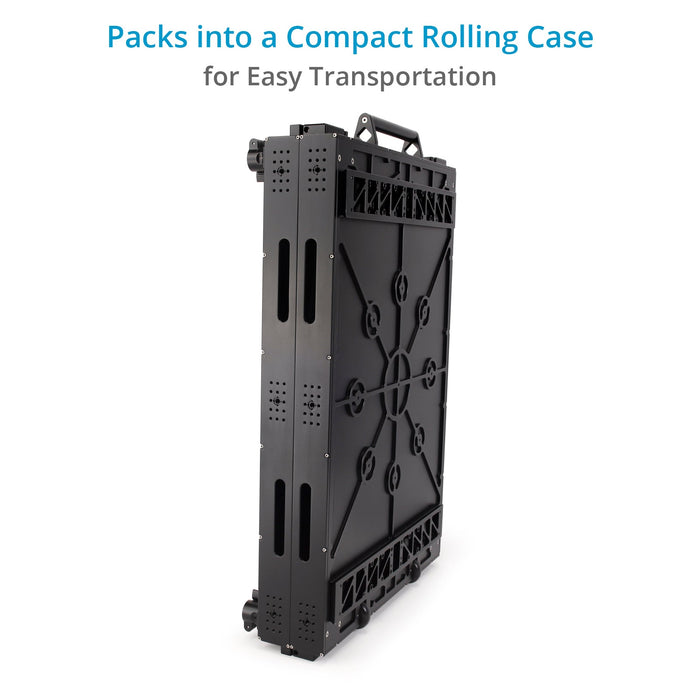

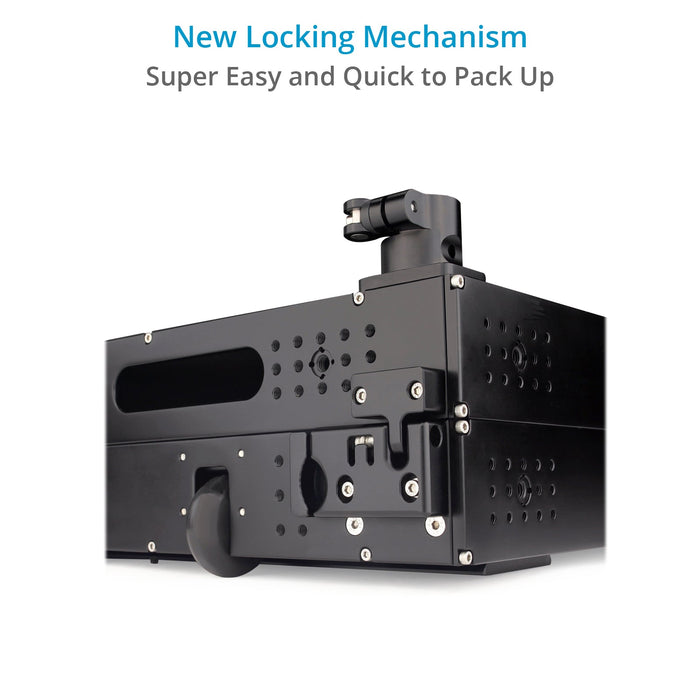

Altas V2 can break down and stored in a few minutes. By design, the Atlas V2 is built to collapse on itself when not in use, making it incredibly easy to transport from one location to the next. No longer are you in need of a grip truck to bring your equipment to the next location, when now it all can sit firmly in the trunk of a midsized Sedan.

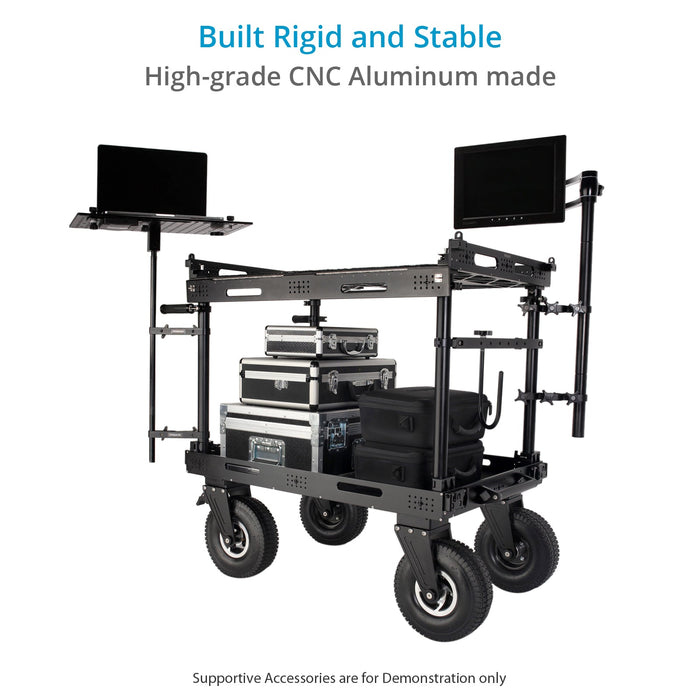

Built to Last
The Atlas V2 cart is built with long hard-working days in mind. Constructed of aluminum, the Cart itself is incredibly robust in design. Most importantly, its collapsible design seems to have been done with zero sacrifices on the build quality of the Cart as a whole. The machined crossbars add rigidity to the Cart. At no moment whatsoever does the cart sway in its rigidity. Our emphasis on using only the best quality of raw materials makes sure the Cart lasts you a lifetime and is super stable even when fully loaded.
Different Sizes of Proaim Atlas V2 Cart
Guaranteed Fast Delivery
Quick and Efficient
Best Investment I Have Made
This cart is perfect for work as a 2nd AC. The cart is the perfect sized senior cart and allows for me to cart around my entire camera kit, plus more. Makes my life significantly easier and makes my 1st AC and DP look organised and efficient. The wheels are the best wheels I've seen on a cart. The clamps use to hold everything into place once it's built feel so premium, you know it's not going to collapse under load. The keyboard cutout is amazing for when I'm wrangling data on the go and whip my laptop out. A feature I didn't know I needed until I had it. Highly recommend to anyone looking for a trolley that can fold into a compact space, but still have the high quality and space of a production cart.
Makes my day easier�
Love this cart,�I use it as a work bench when it's not carrying everything into the job site, and it comes fully built and folds very easily when the day is over. People always ask me where to get one . Highly recommended for those that need to move a bunch of tools around , or need a portable laptop table .
Q&AAsk a Question
is there a way to lower the standard height 41” like i just need a 30” to 34” ?
There is no option to change the height of the Proaim Atlas V2 cart as its top shelf is fixed. But we have the Proaim Victor pro cart as it has an up & down movable top shelf so you can adjust the height. For reference, you can watch this youtube video: https://youtu.be/6dyyoJ1zkqw
What carpet you use for the carts ?
The Black non woven carpets are used on our Carts.
