Proaim Battery & Charger for Skywalker

US $452.00 - US $452.00

US $452.00

US $452.00 - US $452.00

US $452.00

SKU : P-SWCC-BT

Qty

Professional Power Solution

High Quality Lithium Polymer Battery & Intelligent Digital Balance Charger

01.

HIGH POWER, LONGER CYCLE LIFE, MORE SAFETY, LIGHTWEIGHT

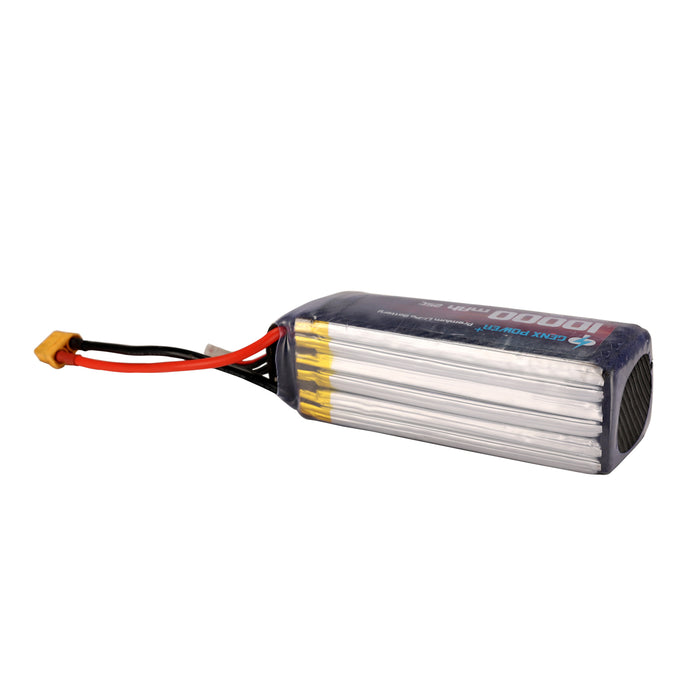

The Rechargeable Lithium Polymer Battery with 10,000mah power provides seamless operation for a period of 20-25 minutes with payload up to 10kg/22lb. It takes up to 1.5 hours of charging time and can be attached to Proaim Sky-Walker Cable Cam easily for a smoother workflow. This battery offers a longer life cycle, enabling the support of hundreds of projects with a single battery.

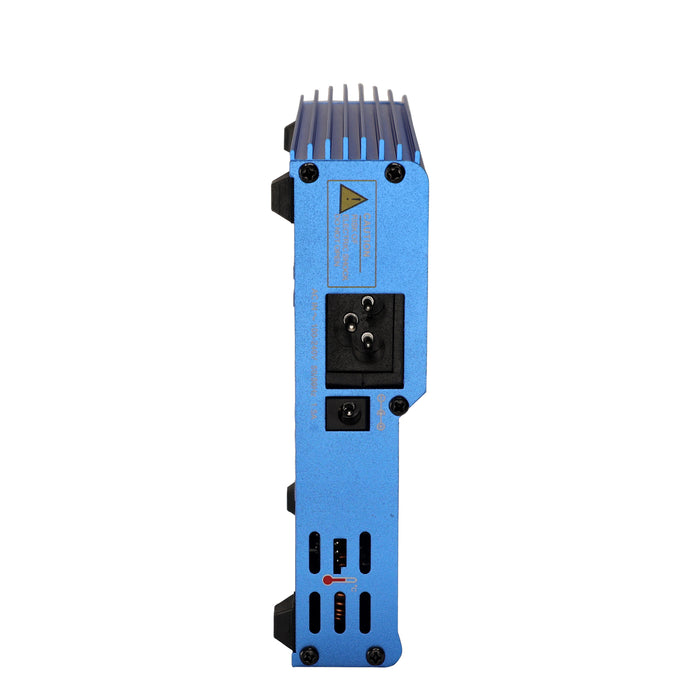

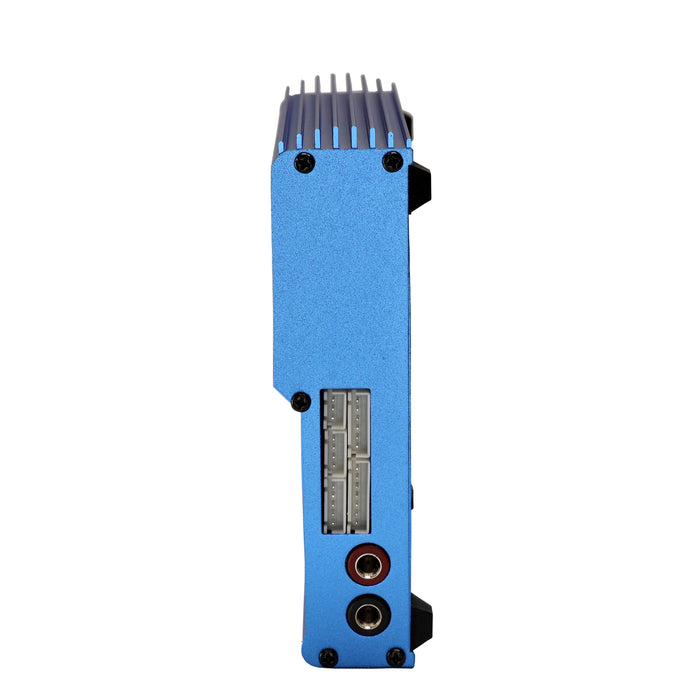

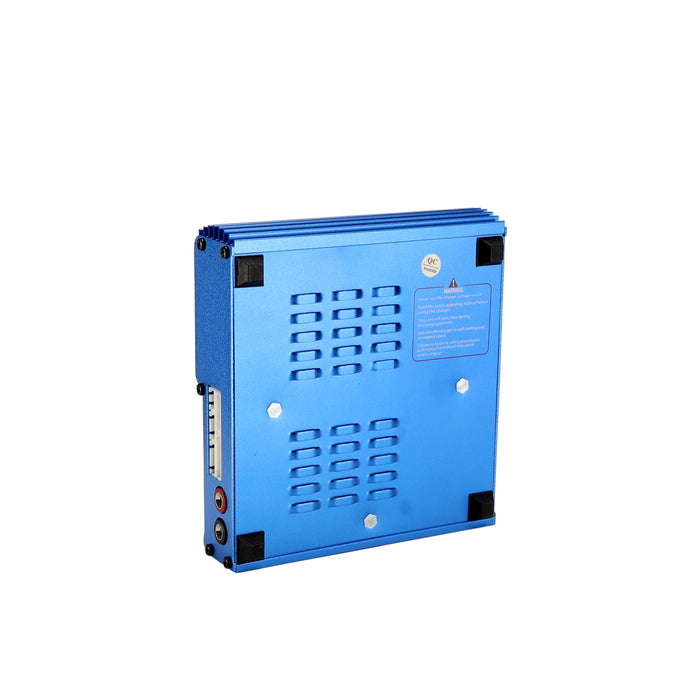

It is a rapid charger with a high performance microprocessor and specialized operating software to achieve maximum safety. B6AC Charger features AUTO function that sets the feeding current during the process of charging or discharging. It prevents the overcharging of Battery. It can disconnect the circuit automatically and alarm once detecting any malfunction. It also employs an individual-cell-voltage balancer for balance charging.

SPECIFICATIONS

BATTERY

Combination method

6SIP

Combination standard

Capacity difference ≤40mAH
Resistance difference ≤0.5m Ω
Voltage difference ≤10mv

Nominal capacity

10000mAh @ 0.5C Discharge

Minimum capacity

10050mAh @ 0.5C Discharge

Nominal Voltage

22.2v

Standard Charging Current

IC CC(constant current)charged to 25.2V,
then CV(constant voltage 25.2v)charge till charge current decline to ≤0.05C at 23°C

Max. Charging Current

3CC(constant current)charged to 25.2V,
then CV(constant voltage 25.2v)charge till charge current decline to ≤ 0.05C at 23°C

PACK voltage(As of shipment)

22.8-23.4V (cell3.8-3.9V)

Internal impedance

≤5.0mΩ

Max. dimensions

66*66*165mm (T*W*H*)

Pack weight

MAX: 1525.0g

Storage temperature

-10°C-45°C

CHARGER

Model No.

B6AC

Operating Voltage Range

DC 10-20V (more than 6A)
AC in: 100-240V 50-60Hz

Charge Current Rate

0.1-6A

Discharge Current Rate

0.1-2A

Weight

531g (Net Weight)

Dimensions

134*142*36mm

IN THE BOX

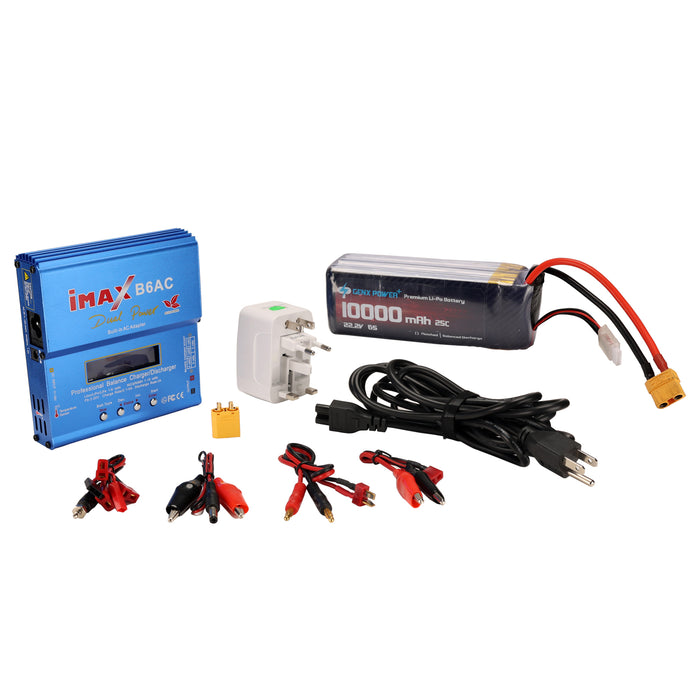

Proaim Battery & Charger for Sky-Walker Cable Cam System
