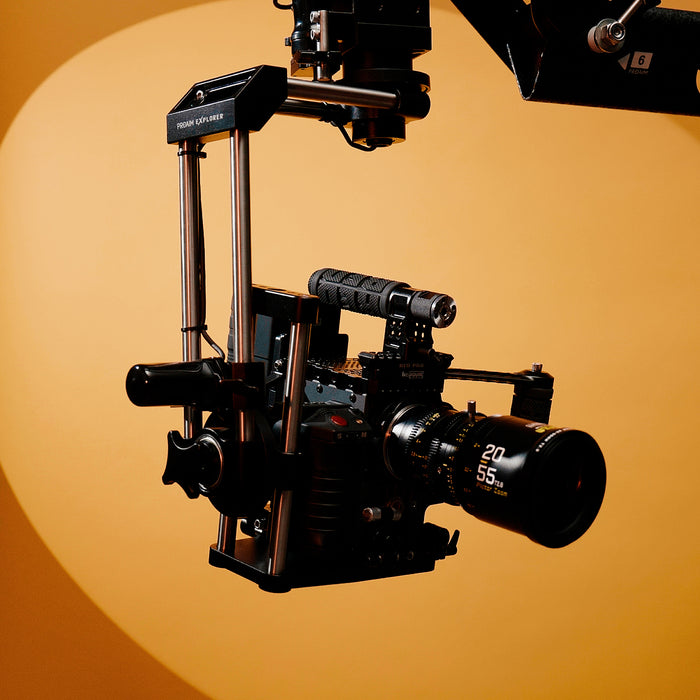

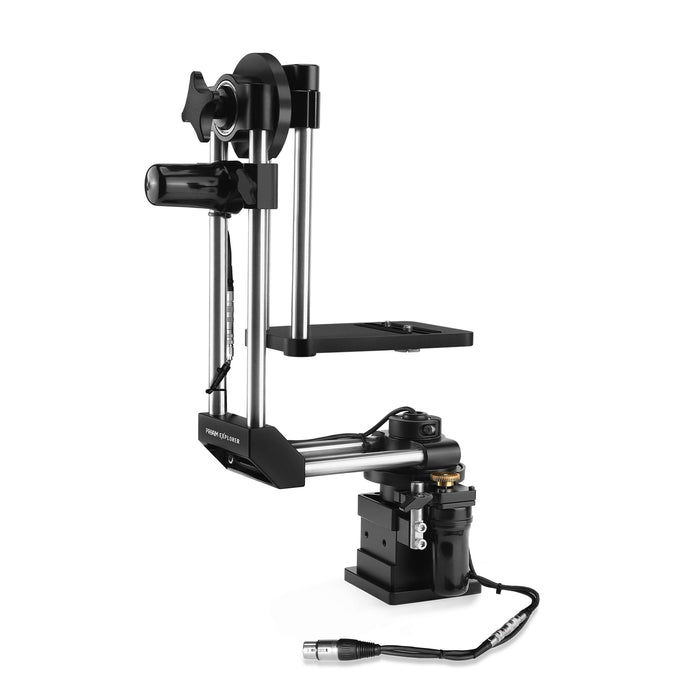

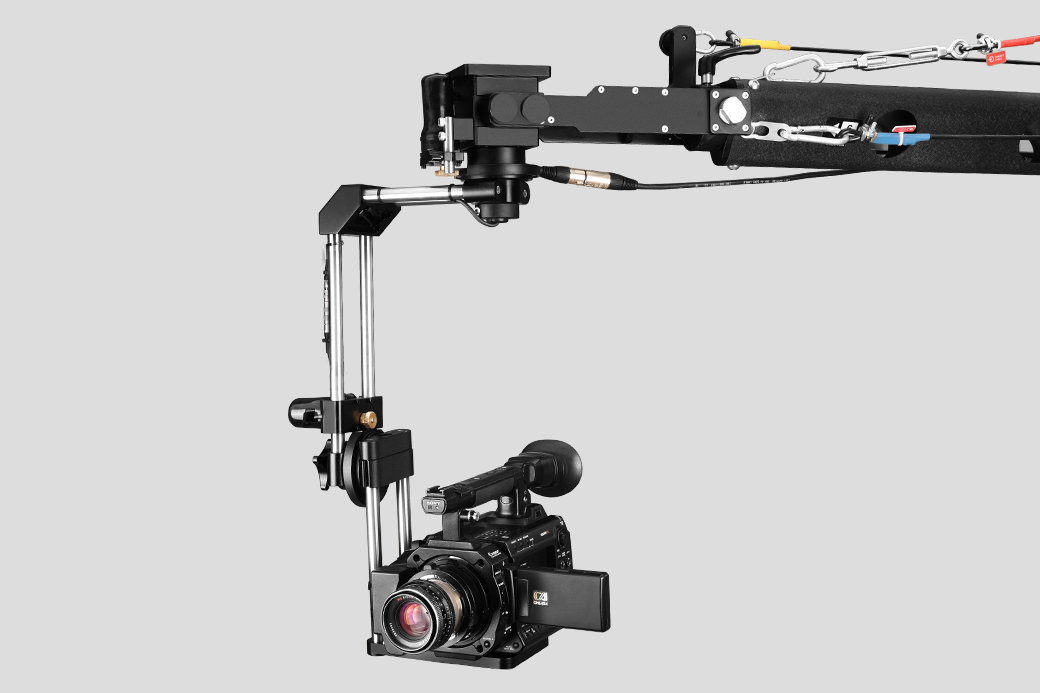

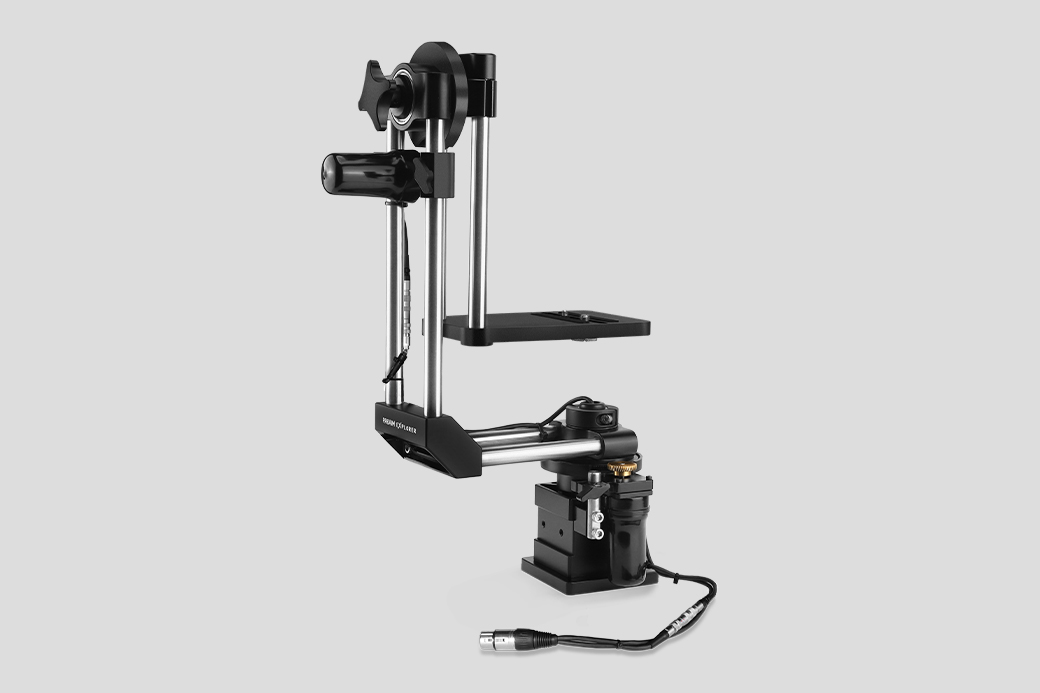

Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload

Long-Lasting 2-Axis Motorized Head w 12V Controller

Original price US $628.00 - Original price US $628.00
Original price
US $628.00
US $628.00 - US $628.00
Current price US $628.00
SKU : PT-EXPR-01




Make Your Shots More Dramatic Than A Standard Straight-Angle Shot!

01.

CAPTURE A WIDER VIEW & SHIFT VIEWER’S PERSPECTIVE
A pan & tilt shot is one of the most versatile shots in a director's Script. To execute the same in an accurate sense, you must have equipment that yields more unique but satisfactory outcomes.
Proaim explorer pan-tilt head is precisely engineered, easy to operate & a silent companion for accurate panning & tilting motions. It changes the dynamics of your shot & adds an excellent cinematic feel to it.

Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload
Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload

02.

ADVANCED, PRECISE & HIGHLY EFFICIENT

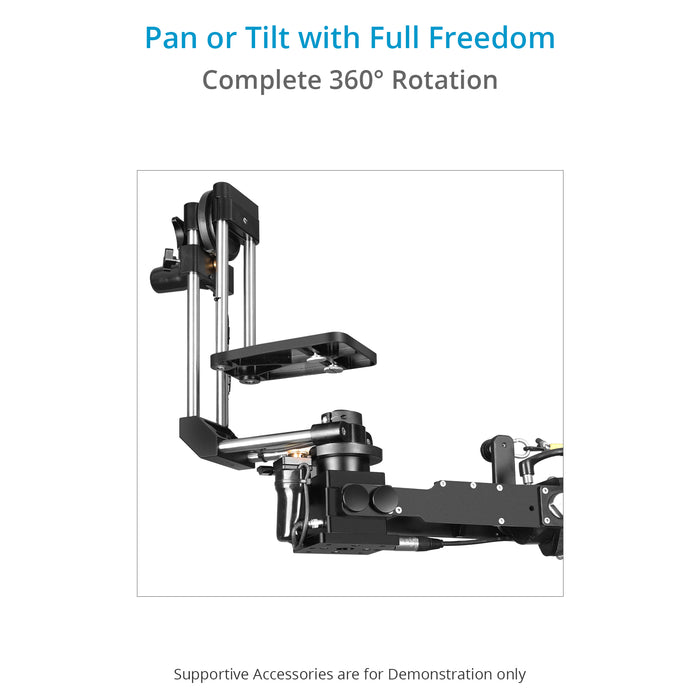

This 2-Axis pan-tilt head facilitates effortless continuous 360° rotation on both horizontal and vertical axis that gives the operator full freedom to capture any desired angle.

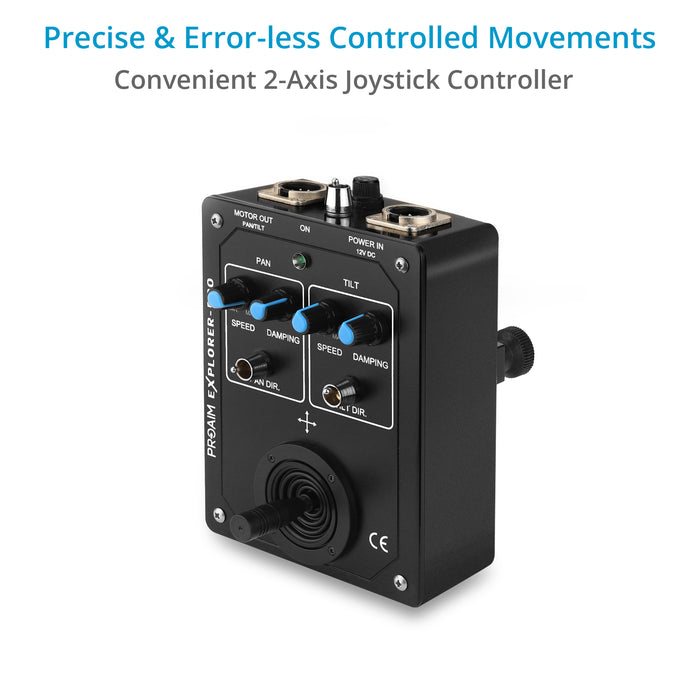

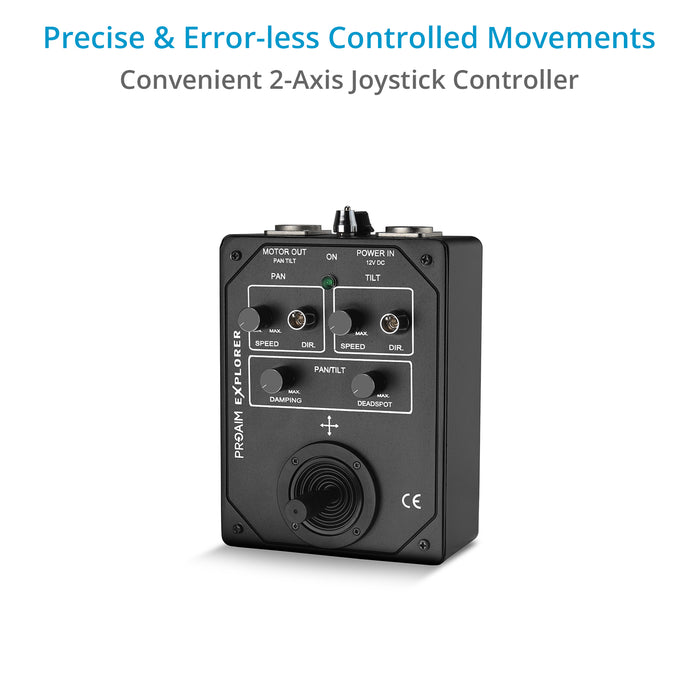

A wired joystick remote controller provides a great range of pan and tilt speed control, with an excellent rotation for a complete revolution in any axis.

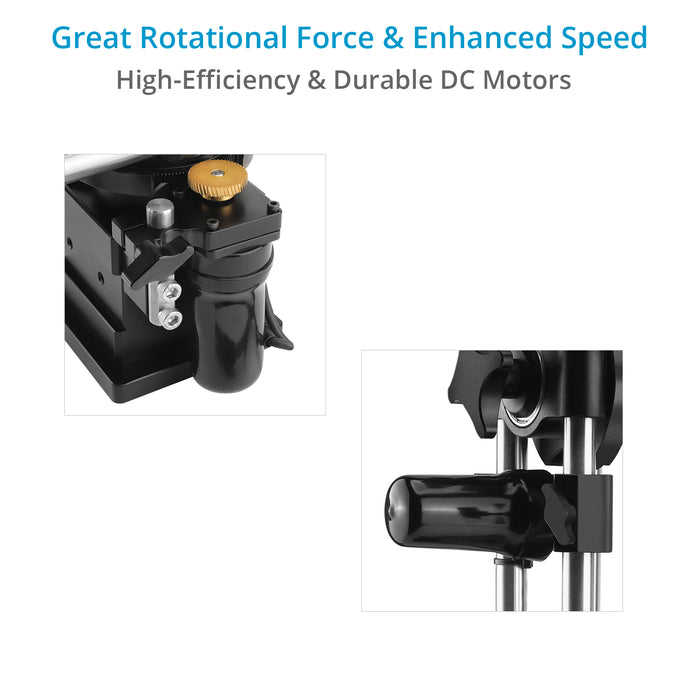

The precise, quiet & highly efficient motors are backlash-free & offer significant rotational force that provides 40% more speed than any normal motor & has extended rotation life.

03.

ADAPTABLE, VERSATILE & ENDURING

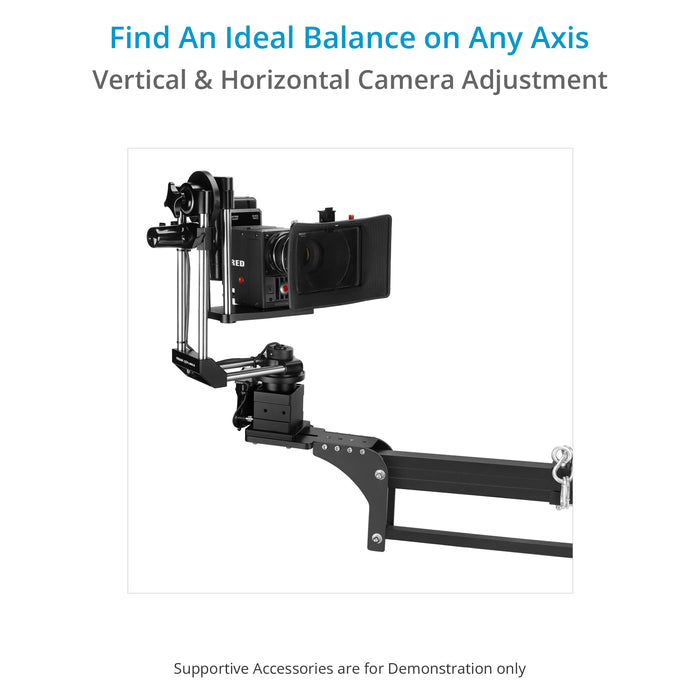

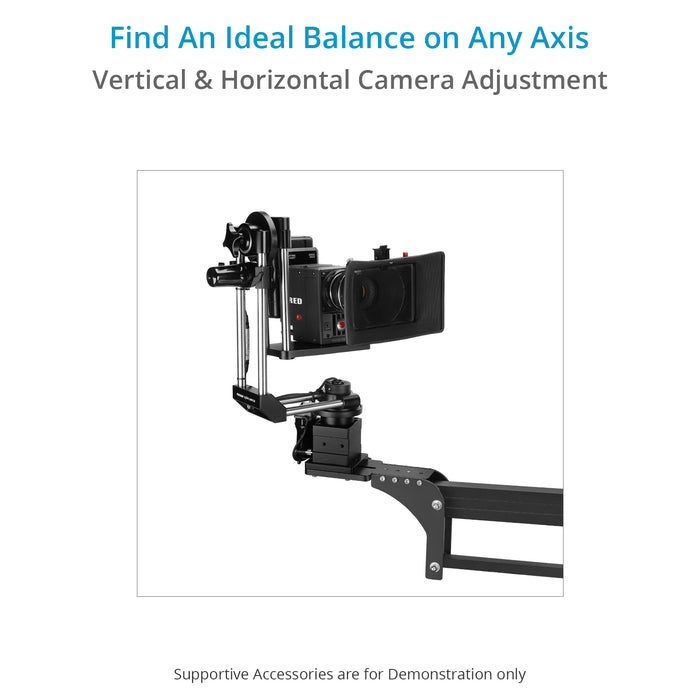

Camera position adjustment lets you find an accurate balance on both pan & tilt pivot points for right camera moves.

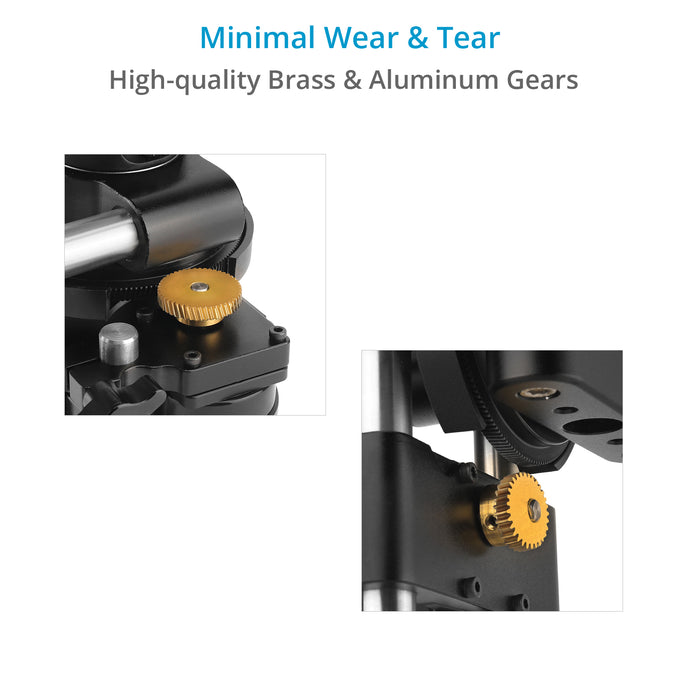

The high-strength brass gears certify minimal wear and tear.

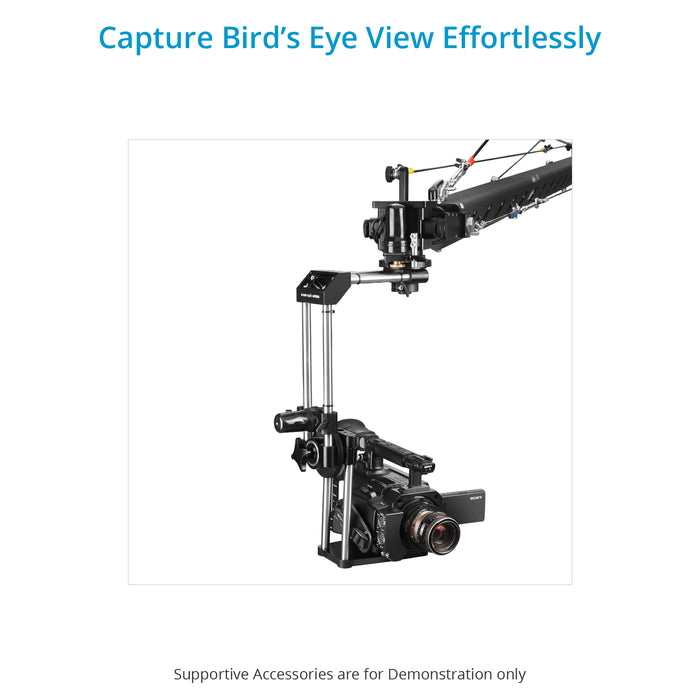

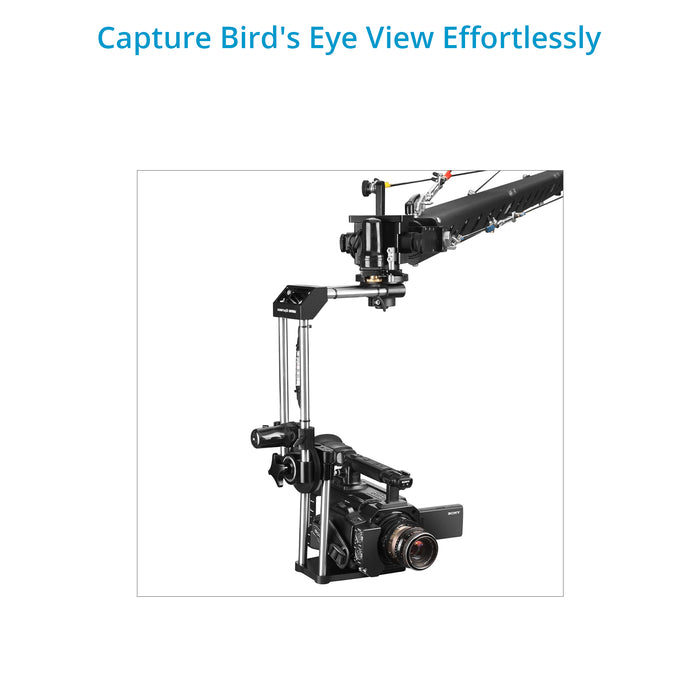

Adjusting the Camera Angle upside down lets you capture graceful bird’s eye view shots at ease.
Suitable for surroundings such as sports events, small and large studios, churches, parliaments, etc.

Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload
Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload

04.

OPTIMAL MOTION & SPEED CONTROL

Damping Control :- Damping control knob prevent the Head from stopping abruptly with a jerk, giving you smooth endings. The amount of damping is increased by rotating the damping knob clockwise.
Dead Spot Control :- The Dead spot control determines the centre band of the joystick where no motion will occur and ensure no crossover to the other axis when not wanted. you can adjust your joystick when it is not centre by rotating this knob clockwise. If you observe the head moving without deflecting the joystick, it will be necessary to adjust centring. and to perform best in reversing the head then dead spot knob should be 30 to 40 percent.
Pan/Tilt Direction :- You can reverse the panning & tilting direction as & when required by using switch and you can also take damping function at the time of reversal. So best way to reverse the pan tilt head is by using this Reversal switch.

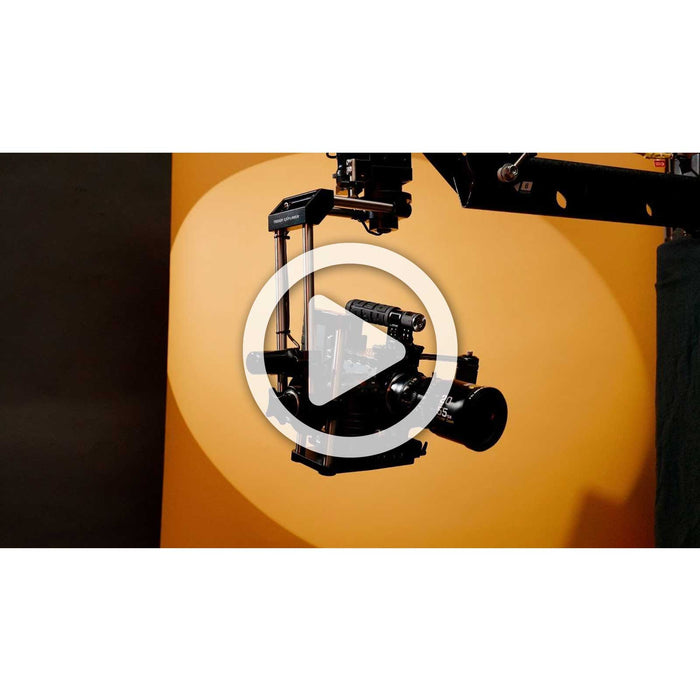

IN-ACTION VIDEO

SPECIFICATIONS

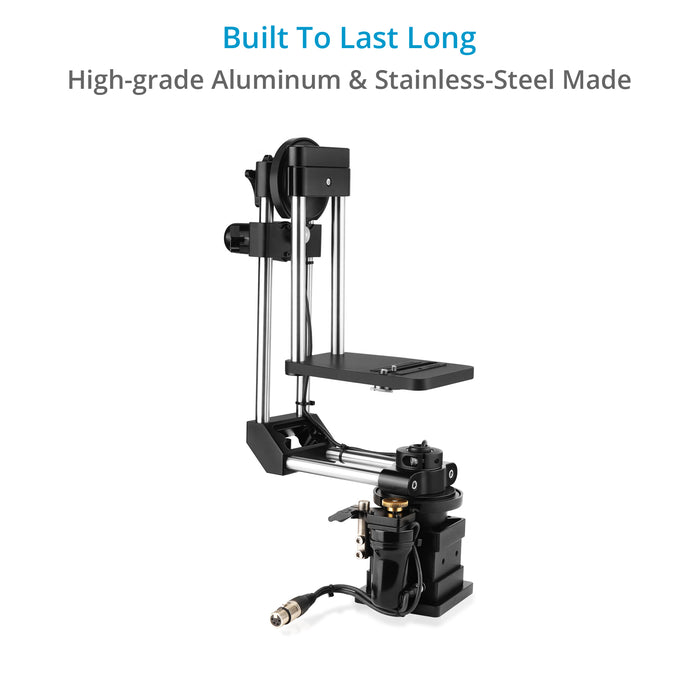

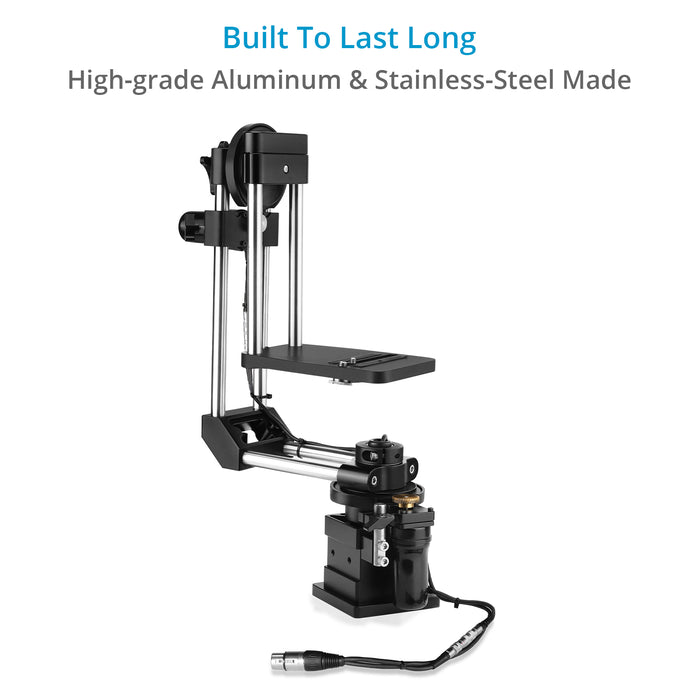

Construction

  Stainless Steel

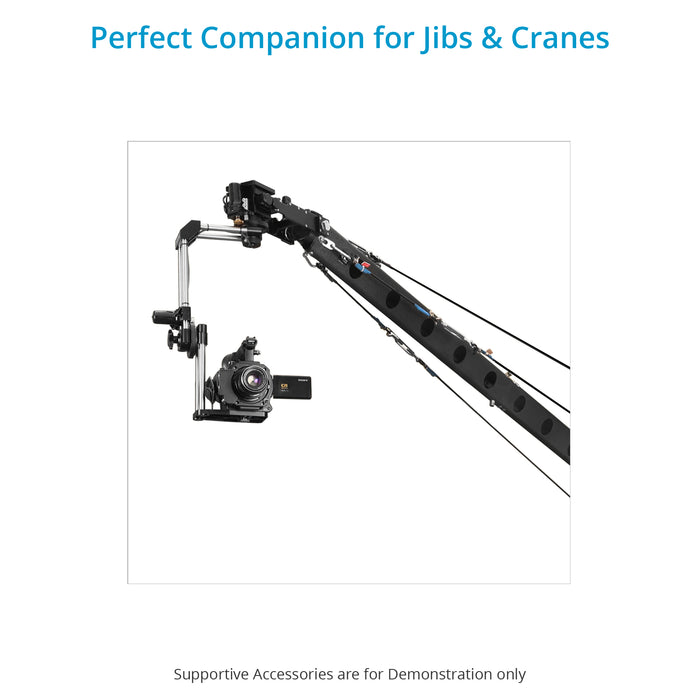

Compatibility

  All packages of Proaim Alphabet jib
  All packages of Proaim Kite-22 Crane
  All packages of Proaim 24ft Camera Crane
  All packages of Proaim 32ft Camera Crane
  Proaim 24ft Fraser Camera Jib Crane Package

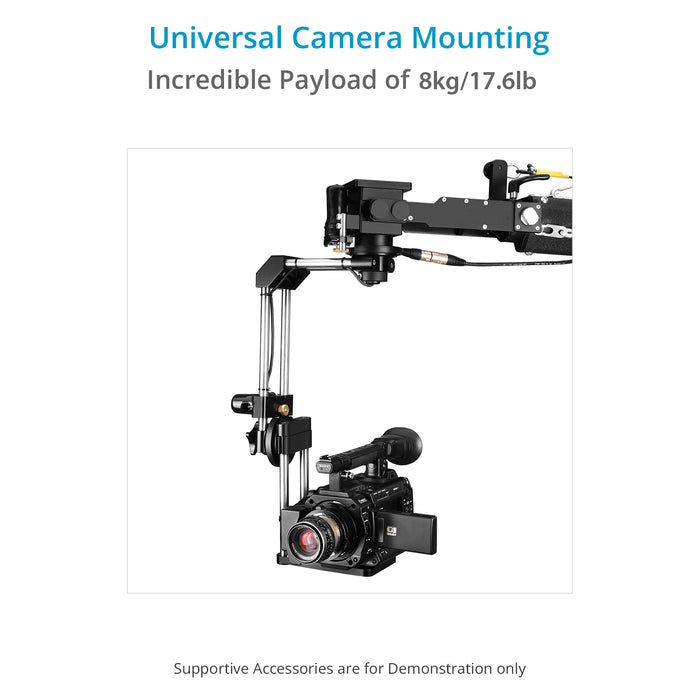

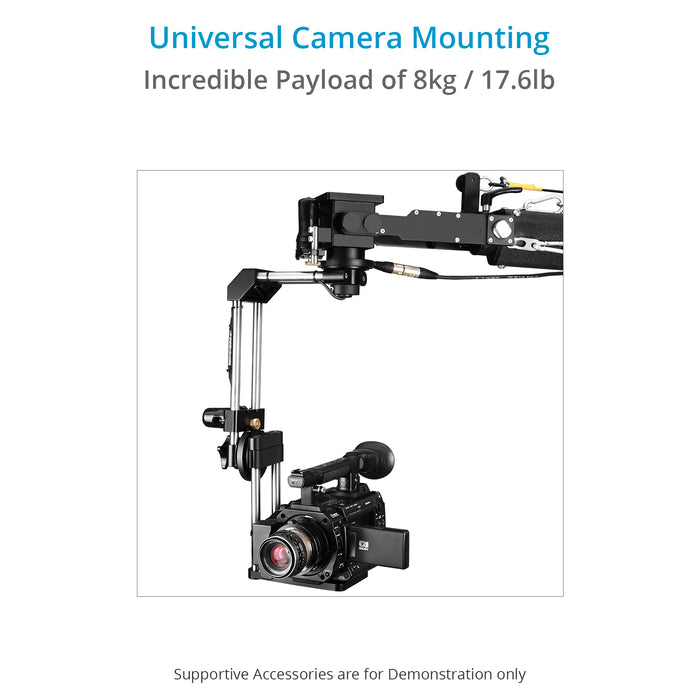

Payload

  8kg / 17.6lb

Pan & Tilt

  360 Degree

Pan/Tilt speed with balanced condition

  Minimum Speed
  One Round (360 Degree) in 1 Minute 25 Second.
  Maximum Speed
  One Round (360 Degree) in 4 Second.

Motors

  High Performance DC Motor

Gears

  Yes

Adjustments

  Yes

Joystick Controller

  Yes

AC Adapter Unit

  12V-3amp

Cables

  15 mtr controller cable & 3 mtr Battery Cable

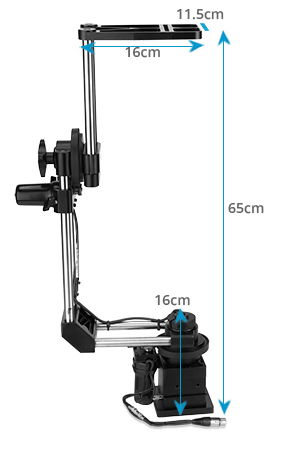

Dimensions

Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload

Product Weight (Without Packing)

  7.20kg / 15.87lb

Product Volumetric Weight (With Packing)

  12.5kg / 27.5lb

IN THE BOX

Proaim Explorer Pro Pan Tilt Head
2 x Cable: 12 mtr x 3 mtr
12V AC Adapter
Controller Box
Universal Adapter
Safety Cap
