• Heavy-duty yet Lightweight Crane meets various shooting demands
Video is for demonstration only
Actual Product may vary due to Product Improvements

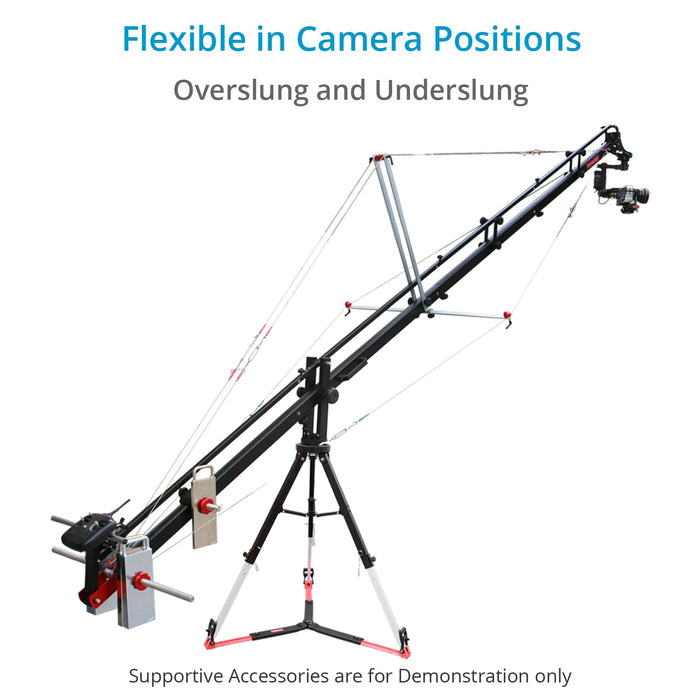

INVERTIBLE CAMERA PLATFORM
TWO ARM DESIGN
STAINLESS STEEL STRESS CABLES
TOOL LESS CONNECTIVITY
COUNTER BALANCE MECHANISM
ADJUSTABLE ACCESSORY BAR

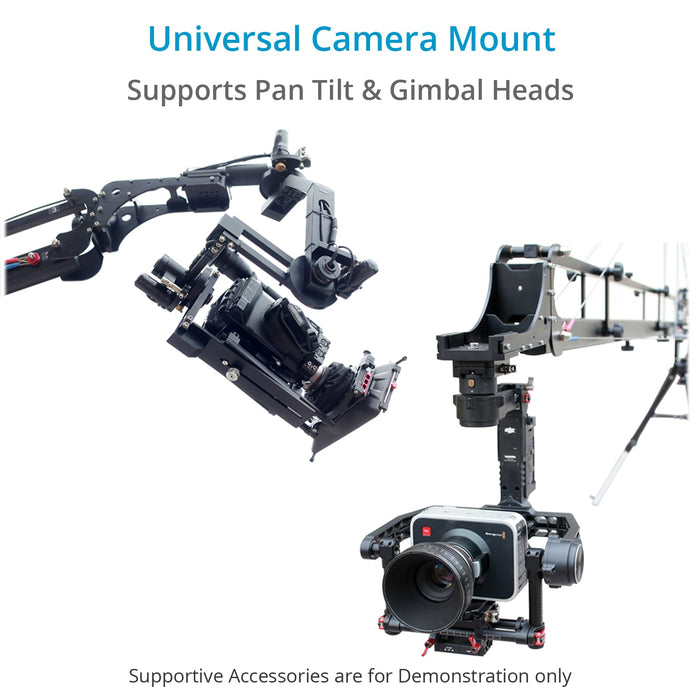

Sr. Pan Tilt Head with 12V Joystick Control
12V Joystick Control

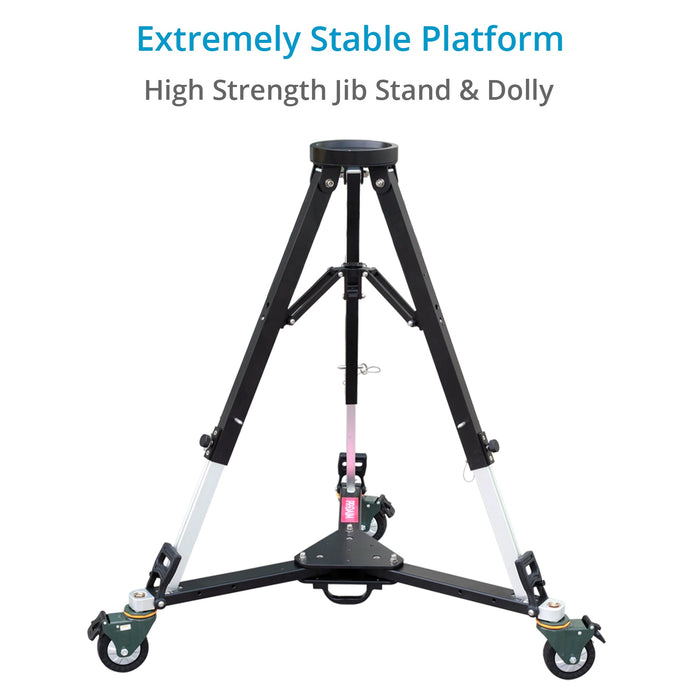

Proaim 100mm Bowl Jib Stand with Spreader
Proaim Portable Dolly
Free Proaim Lanc Zoom Controller
Note: Works only with Sony & Canon cameras with a 2.5mm mini-jack LANC input and Panasonic models with a 2.5mm mini-jack Cam Remote input.

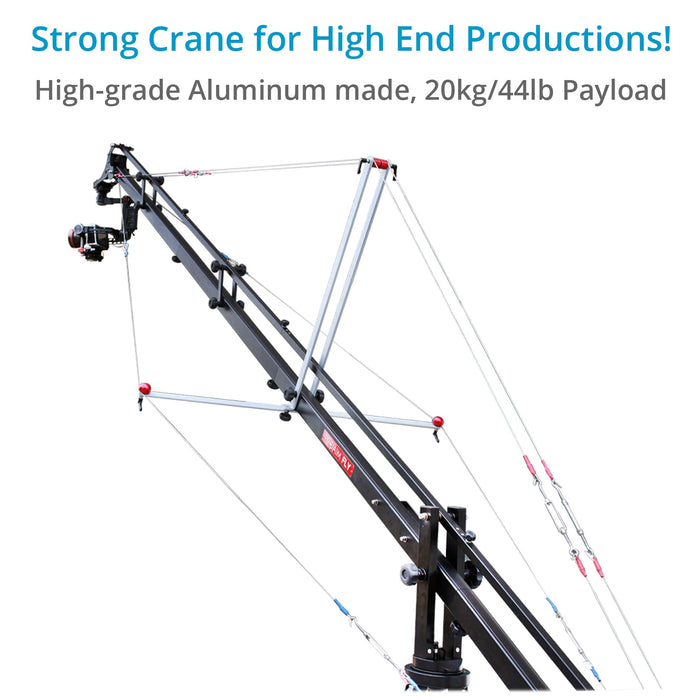

- Constructed with hi-quality aluminum
- Weighing capacity - 20kgs/44lbs

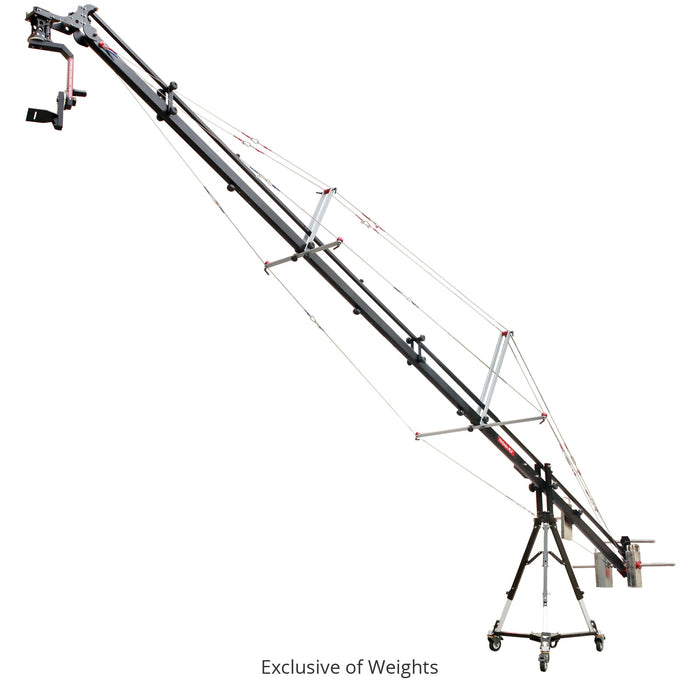

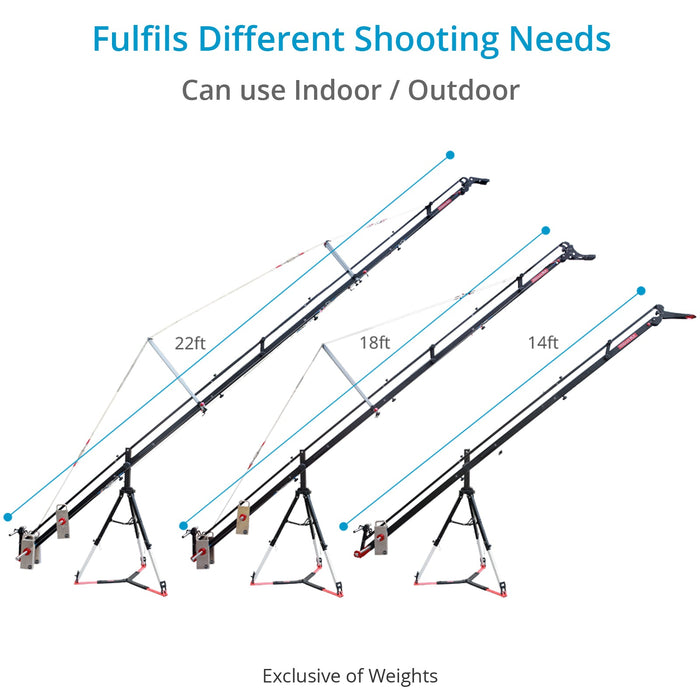

- Length of camera Jib - 22ft
- Crane Pan Lock - Yes
- Crane Tilt Lock - Yes

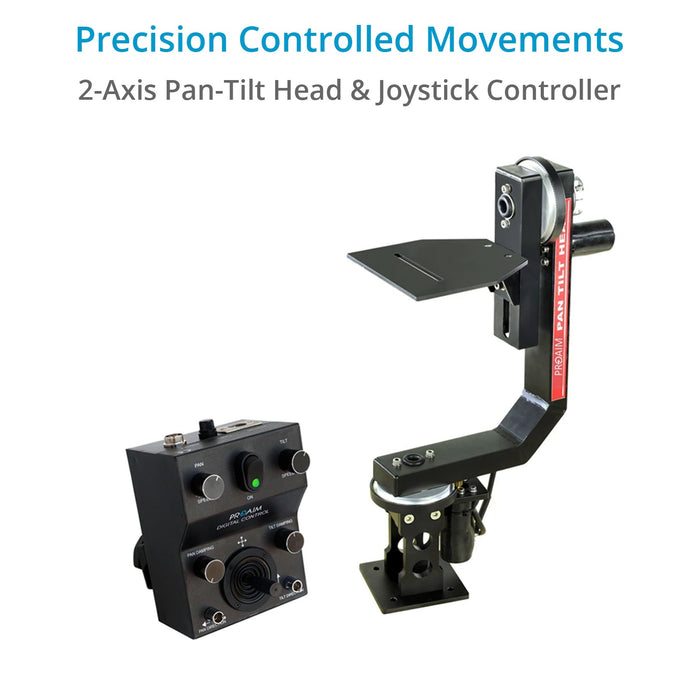

SR. PAN TILT HEAD
- Supports maximum camera weight of 16.5lbs.
- Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec. (high speed).
- Minimum height of head 17".
- Maximum height of head 26" .
- Precision machined parts and industrial grade electronic components.
- AC Adapter input - AC 100 - 240V output - DC 12V -2A.
- Driven by two high-torque coreless DC motors that pan and tilt the head through 360 degrees.
- It takes 2 minutes to pan through 360 degrees at its slowest speed without stopping and just 7 seconds at its
- Consistent operation at its slowest speed without stopping.
- Camera platform height can be adjusted at any point .
- Max length of tripod - 42 inch
- Minimum length of tripod - 24 inch
- Tripod tubes made of - Aluminum
- Weight of tripod - 8 kg / 18lb
- Load capacity - 200 kg / 441 lb
- Maximum length of spreader leg - 24 inch/60.96 cm
- Minimum length of spreader leg - 14.5 inch/36.83 cm
- Spreader collapsed height -14.5 inch/ 37 cm
- Weight of spreader - 1.64 kg / 3.6 lb
- Height of spreader - 1 inch / 2.54 cm
- Sleek knob for tightening the telescopic extension
- Use your tripod in 3 legged configuration.
- Quality design and construction.
- Quick and easy set up and strike.
- Weighing capacity-500kg.
- Machined from heavy duty - rugged use aluminum
- Quality components ensure long life use
- Proaim Fly 22' Camera Crane (P-FLY-22)
- 100mm Bowl Jib Stand with Spreader(LW-100)
- Sr. Pan Tilt Head with Joystick box (PT-SR)
- Pan Tilt Connectivity Plate (Revised on 14-Aug-2019)
- Portable Dolly (P-PRT-D)(Revised on 07-April-2017)
- FREE Proaim Lanc Zoom Controller

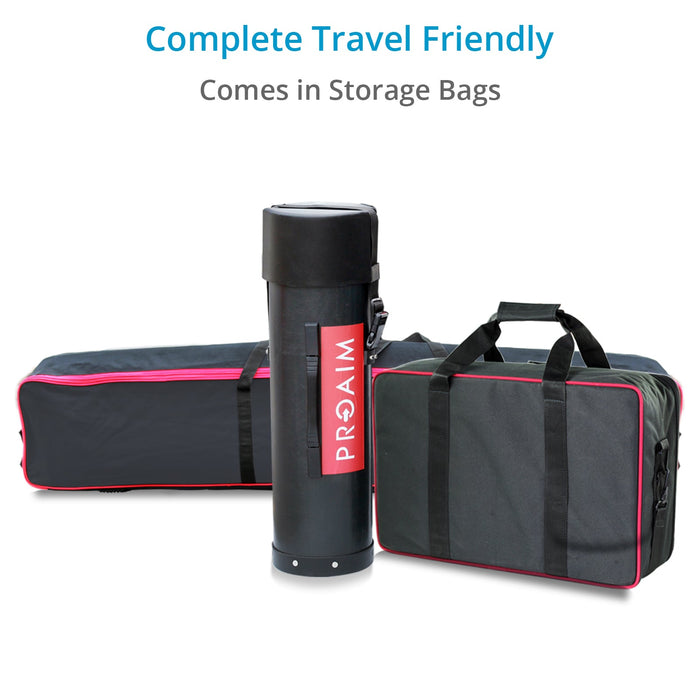

- Bag Packing
Q&AAsk a Question
What is the exact dimension from the centre of the bolt between the wheels?
The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
In this Lineo portable tripod dolly are the wheels replaceable with track wheels?
Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels. Here is the link for the compatible track wheels:
Hello, is screen includes in the crane packages ?
The Proaim Camera Crane Packages does not include the monitors or screens.
