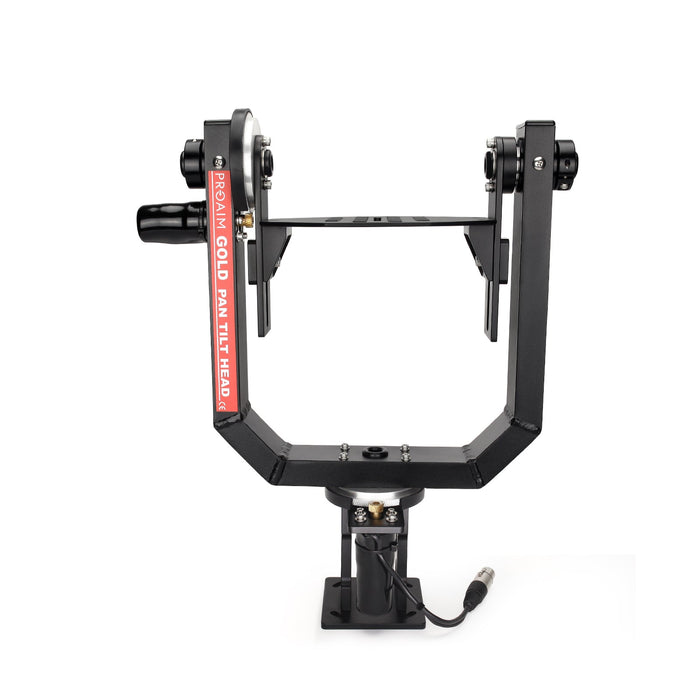

Proaim Gold Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

2-Axis Motorized Head with 12V Joystick Controller

US $852.00 - US $852.00

US $852.00

US $852.00 - US $852.00

US $852.00

SKU : PT-GOLD

Qty

Smart Remote Head Gives You The Freedom To Be More Creative

01.

VERSATILE REMOTE HEAD
The Proaim Gold Pan-Tilt Head with Joystick Control remotely controls your Camera when it's mounted on a tripod, jib or crane.
The Gold Pan-Tilt Runs conveniently on 12 VDC from either a battery pack or the included AC power supply.

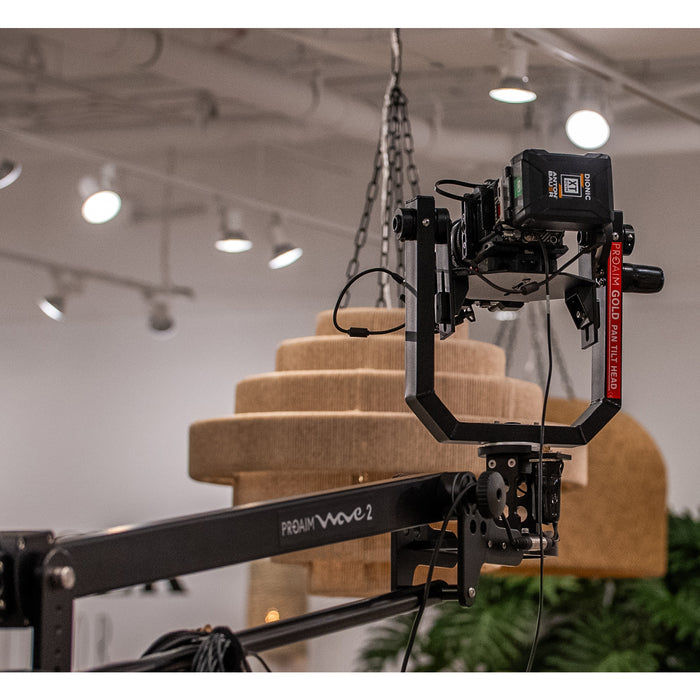

No jib is complete without a motorized pan/tilt head, and the Gold Pan tilt’s robust yet light construction, the universal mounting base and intuitive control box makes it a breeze to set up and operate on virtually any jib.
The universal camera plate is adjustable for different sized setups and can support film and video cameras weighing up to 7.5kg / 16.5lb.
The precisely designed Head gives you incredible freedom of movement and gets you cinematic footage virtually anywhere.

02.

HIGH PERFORMANCE WITH ADVANCED FEATURES
Professionally designed 2-Axis Gold Pan-Tilt Head ensures a perfect camera balance and offers smooth camerawork at all times.

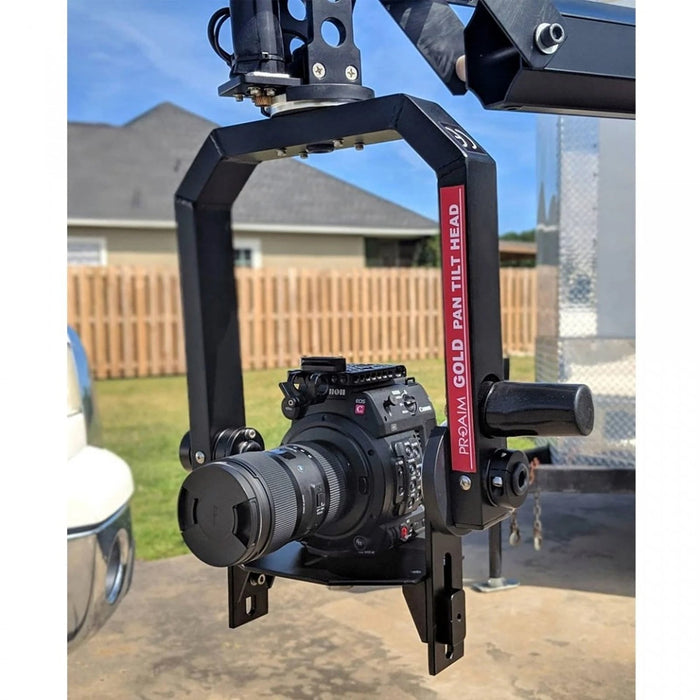

It can be mounted vertically or underslung. The Head will pan and tilt through 360°, and this enables the camera to point directly upwards or downwards when required.
The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and smooth pans and tilts. For faster, yet smooth pan and tilts, the head has a maximum pan/tilt speed of 51° per second.

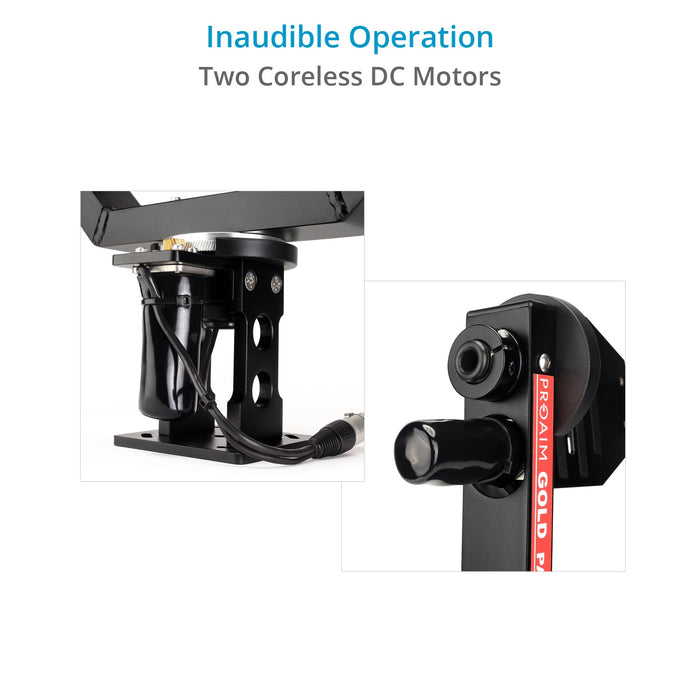

Two high-quality coreless motors and backlash-free gears work precisely, quietly and dynamically. The motor drive can be easily disengaged to balance the Camera on the camera plate.
The high strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

03.

EASY OPERATION

Speed Controller
The Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.

Damping Control
Damping control prevents the Head from stopping with a jerk enabling you to achieve smooth endings.

Pan-Tilt Direction
You can reverse the panning & tilting direction as & when required.

04.

BUILT TO LAST
Precision CNC machining, rigorous parts inspection, and thorough individual unit testing ensure A-grade quality, which serves for the lifetime.
Technological advancements make the unit light, smooth and easy to operate.

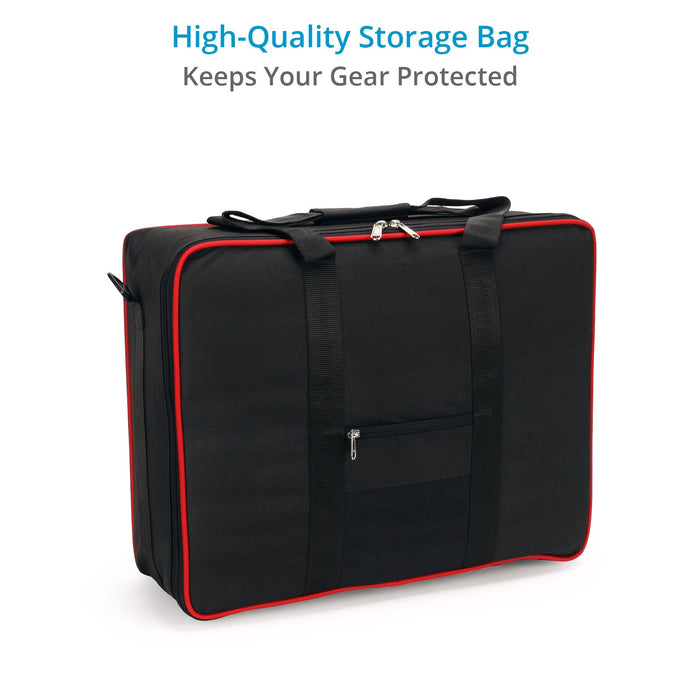

The high-quality carrying bag with custom-fit foam protects the Pan-Tilt Head for storage and transport via air or land.

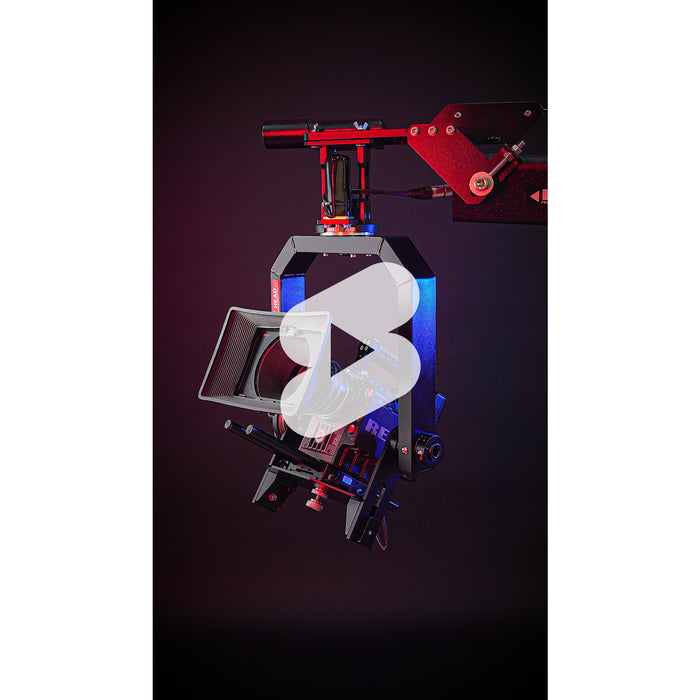

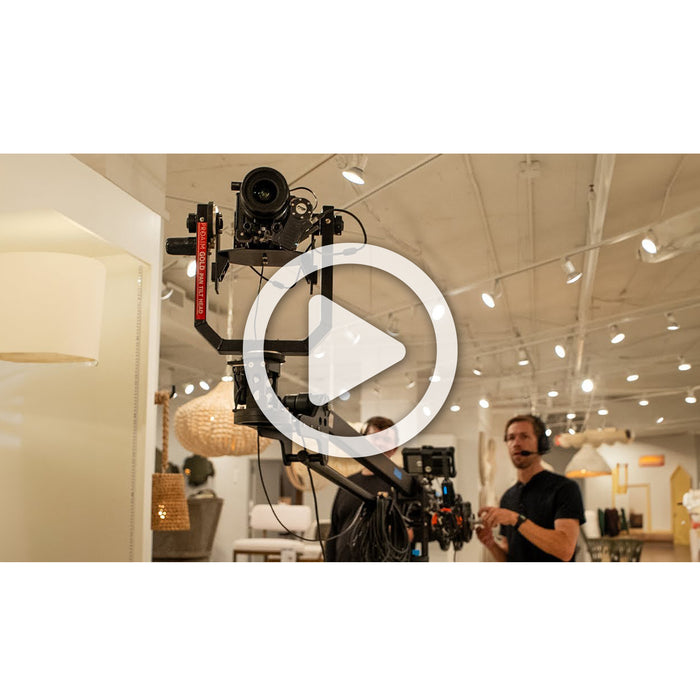

IN-ACTION VIDEO

SPECIFICATIONS

Material of Construction

High-grade CNC Aluminum

Load Capacity

7.5 kg / 16.5 lb

Pan & Tilt

Movement: 360°

Speed

Minimum: 6°/sec
Maximum: 51°/sec
Covers 360° at Slowest Speed in : 2 minutes
Covers 360° at Highest Speed in : 7 seconds

Motors

Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

Gears

2 Small: ⌀ 13mm (Brass)
2 Large: ⌀ 88mm (Aluminum)

Adjustments

Minimum Height of Head: 18" / 45.72 cm
Maximum Height of Head: 23" / 58.42 cm

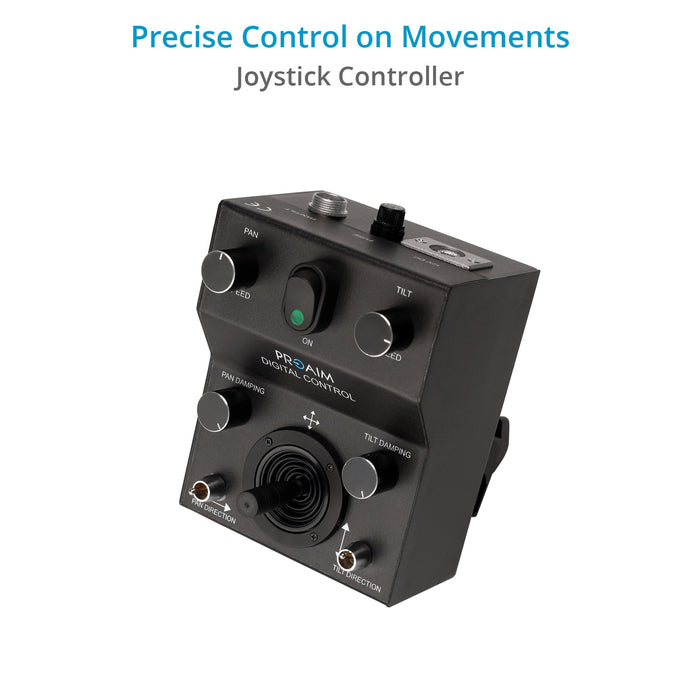

JOYSTICK CONTROLLER

Axis: 2
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob

AC Adapter input

AC 100-240V ; Output 12V DC-2A

Cables

Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long

Weight

Pan/Tilt Head: 3.9 kg / 8.5 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm

PACKAGING INFO

Package Weight

8.40 kg / 18.51 lb

Box Dimensions (LxWxH)

20 x 16.92 x 8.6" / 51 x 43 x 22 cm

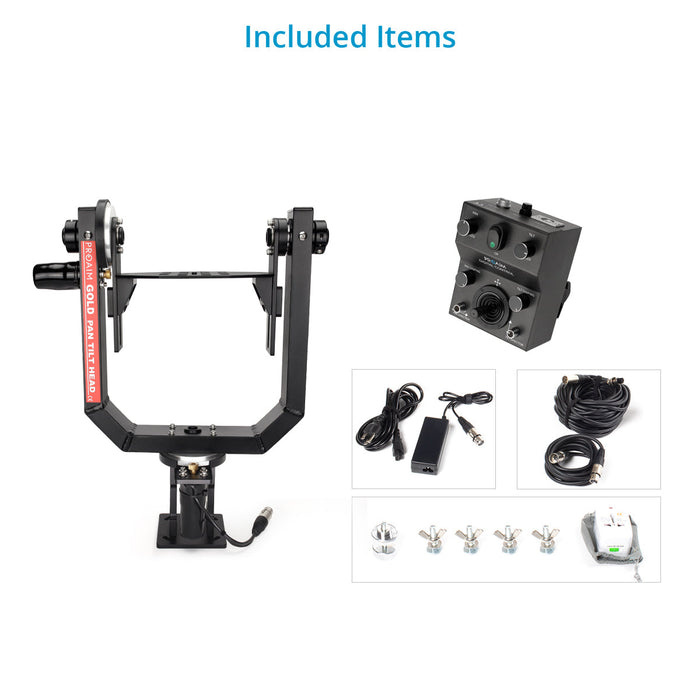

IN THE BOX

Proaim Gold Pan-Tilt Camera Crane Head
Joystick Control Unit
12volt AC Adapter
15 meter/49foot long Control Cable
3 meter long 4pin XLR cable (for using 12VDC Battery Packs)
Camera Mounting Screw (1/4")
Storage Case With Custom Fit Packing
Worldwide Universal Adapter

USER MANUAL

Proaim™ Gold Pan Tilt Head with 12V Joystick Control Box

WHY GOLD PAN-TILT IS THE BEST CHOICE?

Creative Flexibility

It can be used with Jibs, Cranes, Tripods, etc., and holds video, film cameras weighing up to 7.5kg/16.5lb.

Minimum Wear and Tear

The high-strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

Affordable Price

There is no other product in the market, with these many features even close to this price range. We offer Value for Money!

FAQ

Q: What is the slowest and highest speed?

Ans: The speed is as follows :
Slowest Speed : 2 minutes
Highest Speed : 7 seconds

Q: Will it work with Panasonic AG-AF101 camera?

Ans: Yes, it will work with Panasonic AG-AF101 camera.

Q: Will it mount on Jimmi Jib?

Ans: The crane mounting plate should be square in shape with four mounting holes at corners. If your jimmy jib has this type of mounting option, then our pan tilt head will work with it.

Q: What kind of battery I need to operate it?

Ans: You need 12V battery to operate this head.

Q: Do you provide cable for the battery?

Ans: Yes, we provide 3 meter long cable for using with the battery.

Q: How long is the distance it will work with?

Ans: It can be operated from 100ft long distance.

Q: Which motors are used in this head?

Ans: High torque, coreless 12V DC motors are used in this head.

Q: What is the load capacity?

Ans: Its load capacity is 7.5kg.

Q: How the head can be mounted?

Ans: This pan tilt head has square plate with four screws mounting at corners.

Q: Will the fluid head fit to this head?

Ans: Yes, you can mount fluid head on the head plate.

Q: Will it fit to 100mm bowl tripod?

Ans: No, It will not fit to bowl tripod.

Q: Will it mount on fluid head?

Ans: No,It will not mount on fluid head.

Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?

Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

Q: What is the warranty?

Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
