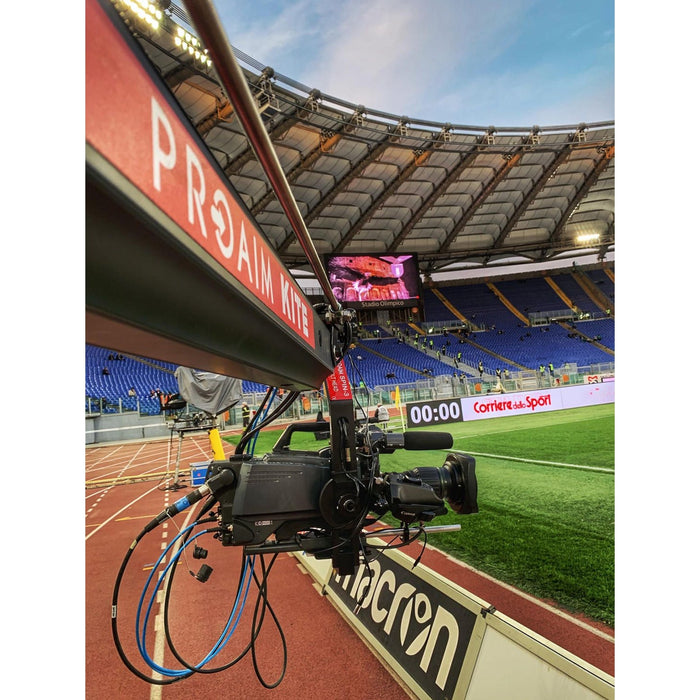

Proaim unveils Kite 22 Camera Jib Crane to let you explore your cinematic world. It will give you the whole spectrum of innovative ideas by providing various geographic scenarios & different in-studio angles.

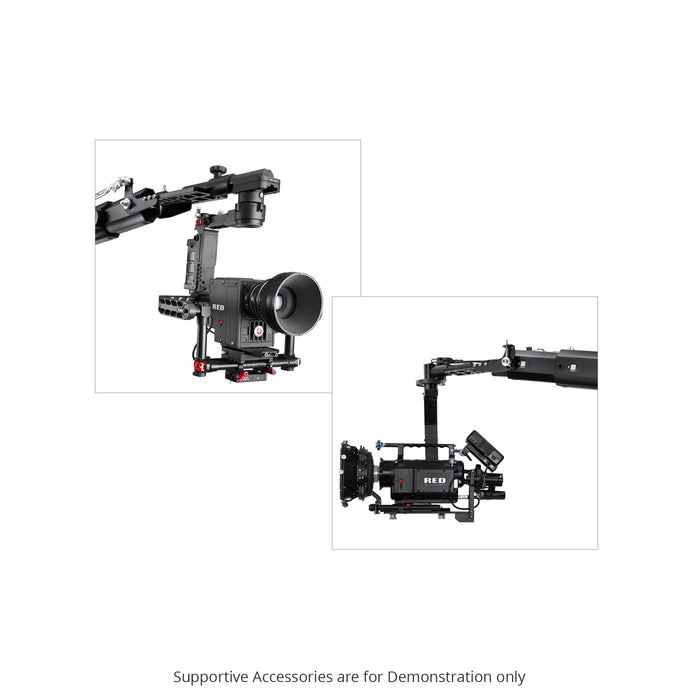

The Kite 22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment which includes a tripod stand, portable floor dolly & Dutch roll pan-tilt head.
The High-Grade Aluminum construction offers unbeatable strength and holds most camera setups.
AN ALL-ROUNDER AND INDUSTRY STANDARD ROBUST CAMERA CRANE
Perfectly Meets Various Production Needs!
WELL DESIGNED ARM SECTIONS

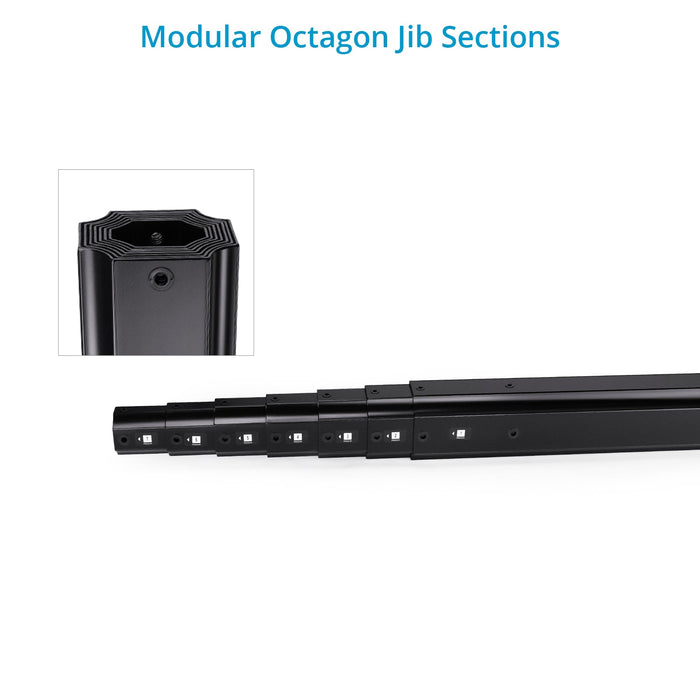

The modular octagonal-shaped arm sections reinforce the sturdiness of the Kite-22ft Camera jib crane.
It is divided into seven sections, each measuring 4' in length, overlapping by up to 1' for varied lengths.

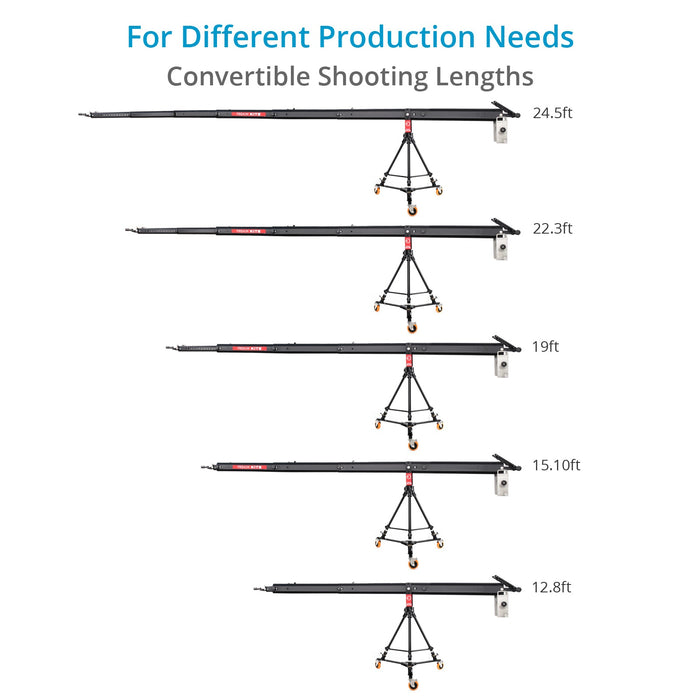

Arm length is adjustable, ranging from 12.8 ft. to 24.5 ft. (24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft) to meet any professional demands.

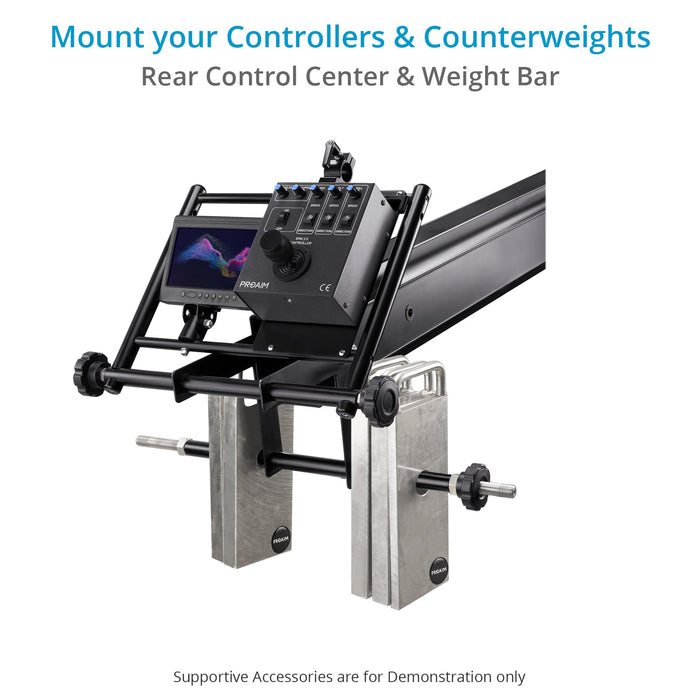

Each section is pulled from the previous section, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.

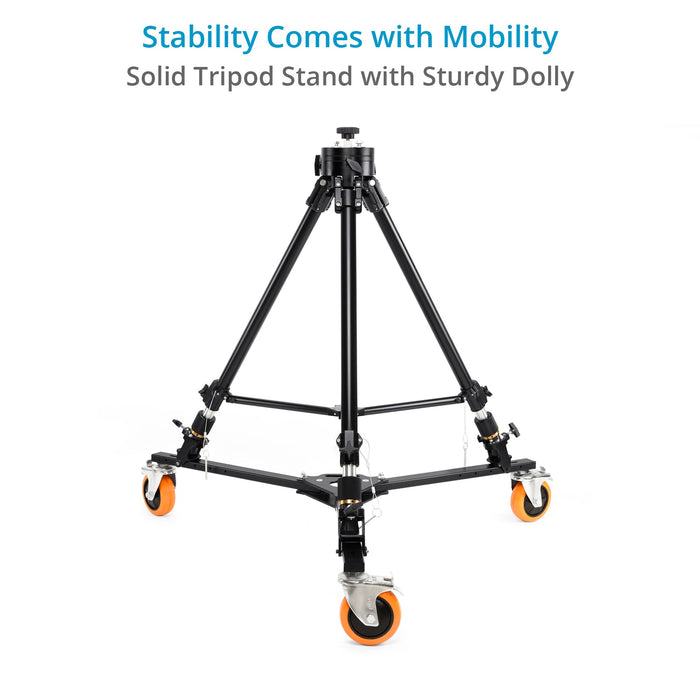

Proaim Kite 22 Camera Jib comes with Gravity Robust Tripod Stand to provide extraordinary stability to your heavy camera setups.
Proaim Gravity Stand is a 2-section aluminum video tripod with a single tube leg design and a middle spreader.
Micro adjustment feature on the legs allows for quick balancing. It supports 250kg / 550lb payload at 32” height and 180kg / 396lb at 47” maximum height.
ADDS MOBILITY TO YOUR SETUP
The Kite 22 package includes D-33 Pro Dolly to add mobility to the crane. It's a compact and versatile pro video dolly.
The Locks on the wheels ensure static jerk free shots & easy assembling.

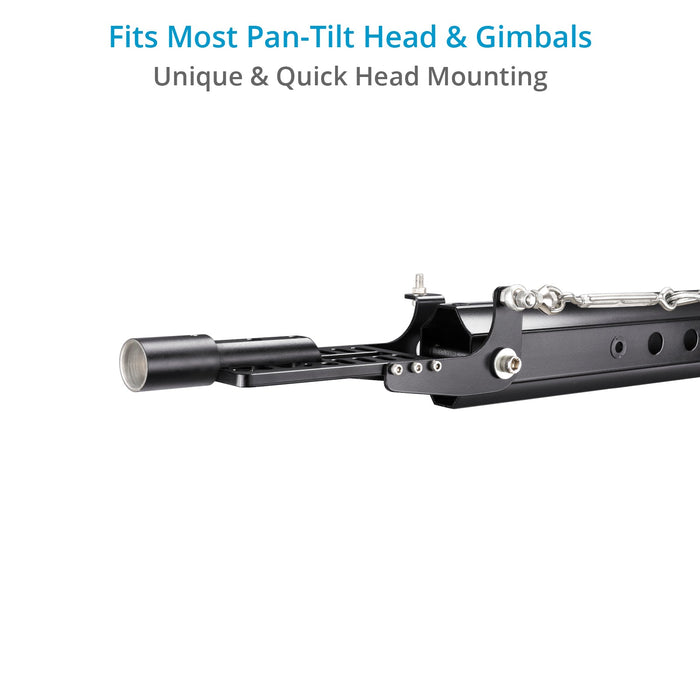

NATURALLY SMOOTH SHOTS WITH PAN TILT HEAD

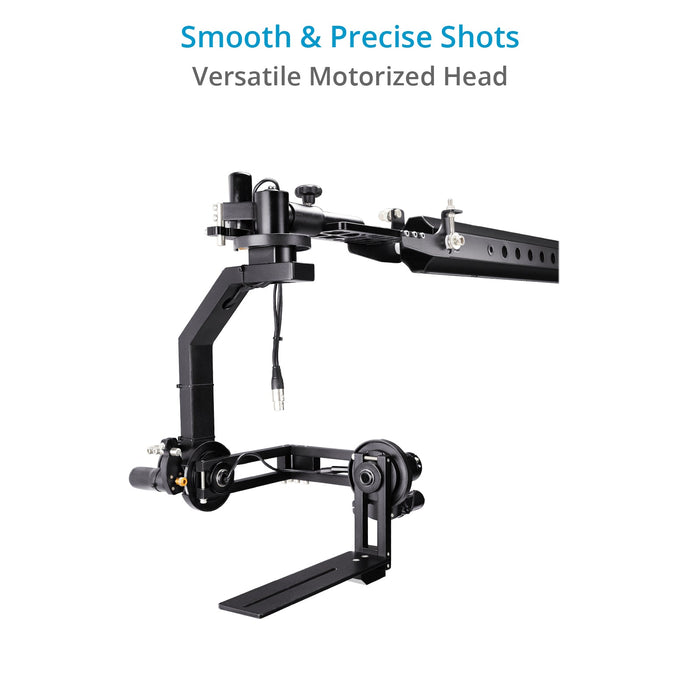

The Proaim Spin-3 Dutch Roll Pan-Tilt Head with Joystick Controller is the ideal combination to control your Camera movements remotely.
The Spin-3 Pan/Tilt runs conveniently on 12 VDC from either a battery pack or the included AC power supply.
It can safely handle camera packages weighing up to 15kg / 33lb.
The Spin-3 pans tilt & roll at 360°, allowing you to create exciting cinematic camera moves.
The Joystick control system has proportional linear movement and comes with a 10-metre long cable and AC adapter.
The Dead spot in Joystick controls the unwanted distortions & the Damping function prevents the Head from sudden jerks enabling you to achieve smooth endings.
The Joystick is touch-sensitive:
Small movement – less speed & more movement – more speed.
LANC ZOOM CONTROLLER FOR CAMERA
The Proaim LANC Zoom Controller features a sensitive thumb switch that allows for variable-zoom speed from slow to fast.
The zoom lever allows you to zoom out to wide-angle or zoom in to telephoto.
This unit has an outlet cable and can be clamped on the rear frame.
The LANC Zoom controller is compatible with a variety of Sony, Canon & Panasonic Cameras.

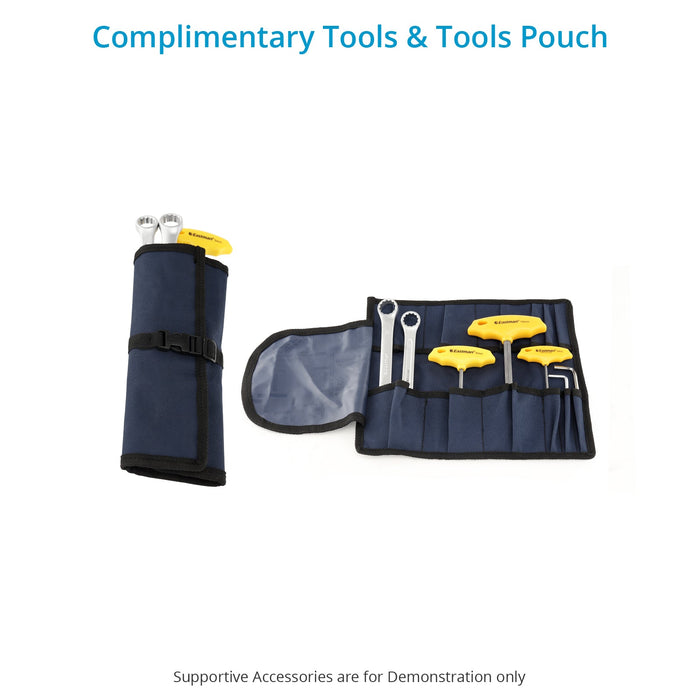

The tool/accessory roll pouch provides rapid access to various tools such as Allen keys or wrenches. It has ten pockets to neatly organize multiple hand tools so you can work quickly and efficiently.

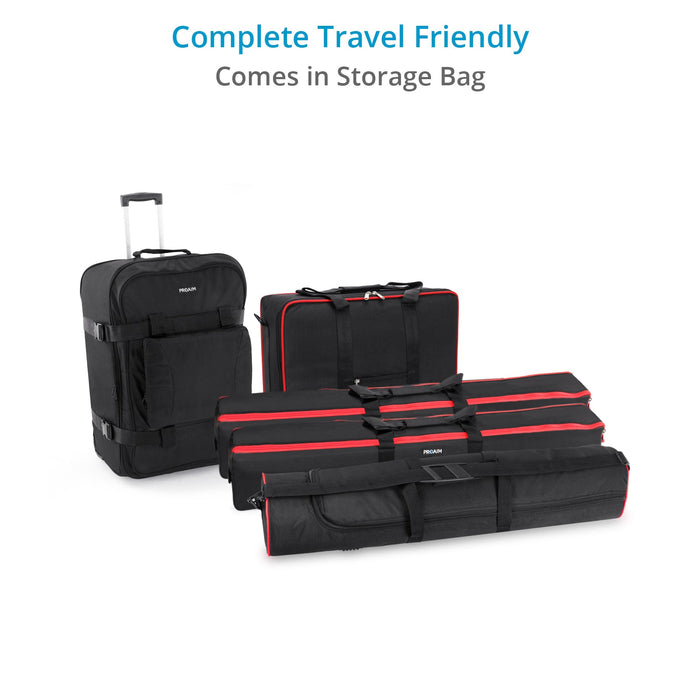

The complete Crane Package fits in customized storage cases to ensure full protection. These storage cases are easy to carry with you to different sets and locations.

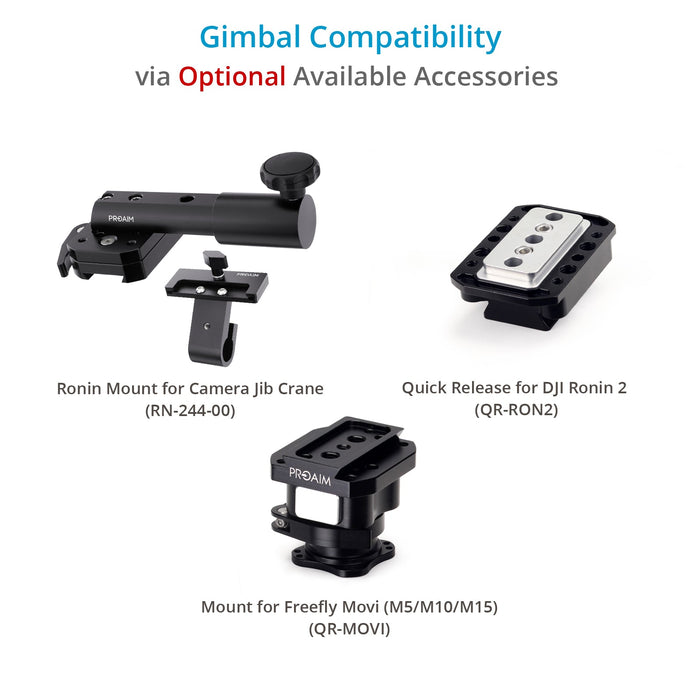

TELESCOPIC CAMERA JIB
Jib Arm Material
High Grade Aluminum HE30
Jib Arm Shape
Height from Ground
19ft / 5.8m
Jib Arm Thickness
Jib Crane Length
24.5ft / 7.5m
Jib each Arm length
Jib Arm Dimensions
|Jib Arm Octagonal Tube||Outer Diameter||Inner Diameter|
|Ist Section(weight section)||164mm||156mm|
|7th Section (Top Section)||104mm||96mm|
Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft: 19ft high at 24.5ft length
16.6ft high at 22.3ft length
14.3ft high at 19ft length
12.2ft high at 15.10ft length
10ft high at 12.8ft length
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart :
|Self Balancing||When 2.2lbs weight is on the Head Plate|
24.5ft jib arm balances at about 121.5lbs.
24.5ft arm balances at around 133lbs.
Crane Pan Lock
Crane Tilt Lock
Black Powder Coated
Coupling Jib Arm Sections
A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
Jib Arm Break downs to
7 Sections of 4ft each
Camera Platform Leveling
By Control Cable
High carbon steel with electro galvanized 4mm tested wire at 800kg
Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
Carrying Case size
Jib Crane Weight
30 kg / 66 lb
Max Camera Package Load Capacity(including Pan Tilt Head)
20 kg / 45 lb
PAN TILT HEAD
High Grade Aluminum
Max Camera Package Load Capacity
15 kg / 33 lb
Minimum : 20 Sec, Maximum : 5 sec
Minimum: 1 min 33 sec, Maximum : 8 sec
Minimum: 1 min 24 sec, Maximum : 8 sec
Three high torque DC motors 12V that rotates (pans), tilts & roll the head 360 degrees
3- Silver Big Gears (Dia- 100mm)
2- Brass Small Gears (Dia- 14mm),
1- Brass Small Pan Gear (Dia-22mm)
Minimum height of head
Maximum height of head
AC Adapter input
AC 100 - 240V ; output - DC 12V -2A
3 Meter long
Camera Plate Size
12x3 inches, camera mount slot – 8”
73 x 49 x 21 cm
Weight of 3-Axis head
5.7 kg / 12.5 lb
1x 4-Pin XLR male connectors
6 Pin XLR
Weight of Joystick box
0.815 kg / 1.79 lb
GRAVITY ROBUST TRIPOD STAND (TP-GVTY-ULT)
Hub Assembly Material
High Grade Aluminum HE30
Hub Assembly Dimensions
Inner Dia : 137mm
Outer Dia : 150mm
Jib Stand Legs
Stand Height when Collapsed
Stand Height when opened
11.32 kg / 24.95 lb
On Minimum Height: 250 kg / 551.1 lb
On maximum height: 180 kg / 39.6.8 lb
Maximum Load capacity
800kg / 1763.6lb
MS powder coated
Steel bolts with washers
Folded (L x W x H) 84 x 28 x 22 cm
Doorway Width - 144cm
Height From Ground
Weight of Dolly
Three leg Floor dolly
IN THE BOX
Proaim Kite-22 Telescopic Jib Arm Crane with Accessories
Proaim Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
D-33 Camera Dolly (D-33)
Proaim Gravity Robust Tripod Stand (TP-GVTY-ULT)
Proaim Lanc Zoom Controller (P-ZC-3DV)
Tools and Tool Pouch/Wrap- Complimentary
Customized Storage cases
