Proaim Monitor Articulated Arm for Camera Cart

For Victor Cart Series, Atlas Camera Cart & Sound Chief Cart| Payload Capacity: 25 kg / 55 lb

Original price US $330.00 - Original price US $330.00
Original price
US $330.00
US $330.00 - US $330.00
Current price US $330.00
SKU : VCTR-MA




Easy & Stable Monitor Mounting Solution For Your Cart!


01.

Secure & Adjustable Platform

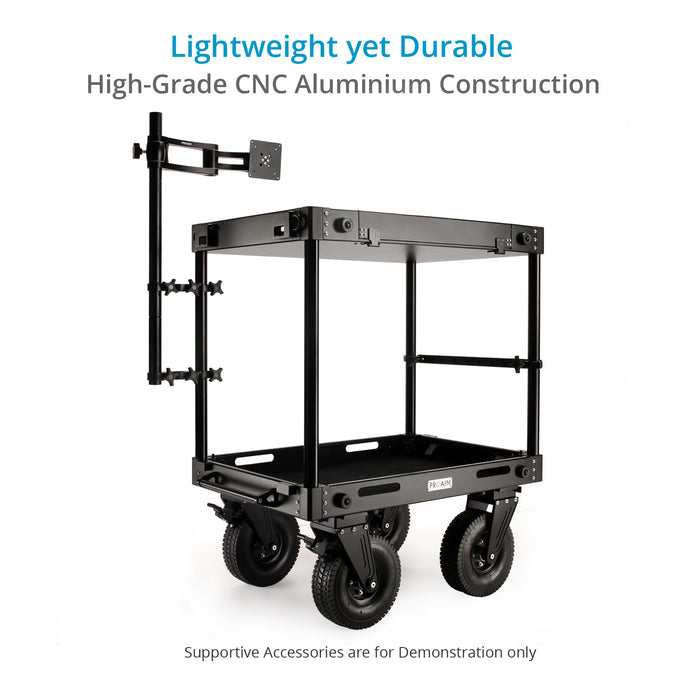

Proaim Monitor Articulated Arm is constructed of High-Grade CNC Aluminum to support payload capacity of up to 25 kg / 55 lb.

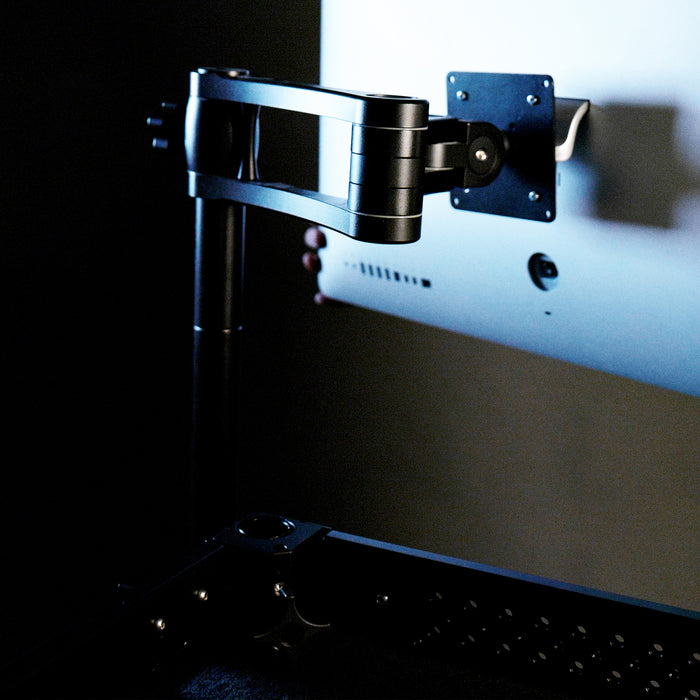

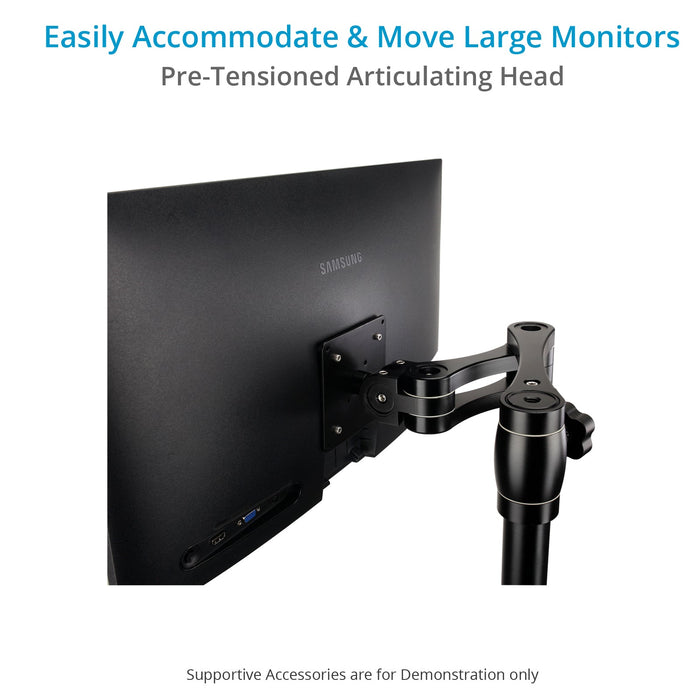

The design features Universal VESA Monitor Mount, which lets you securely mount your VESA-equipped display/monitor of any size.

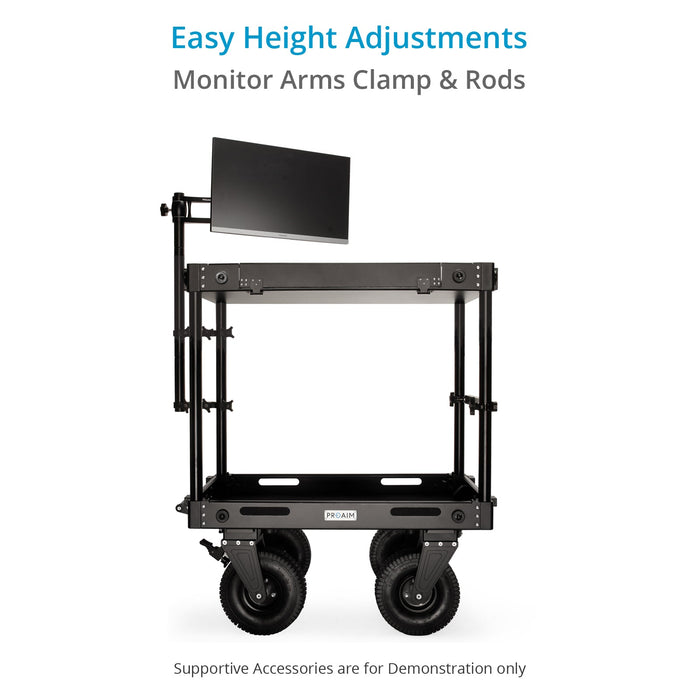

It fits perfectly with your Proaim Camera Cart shelf riser and provides a secure, height-adjustable platform.

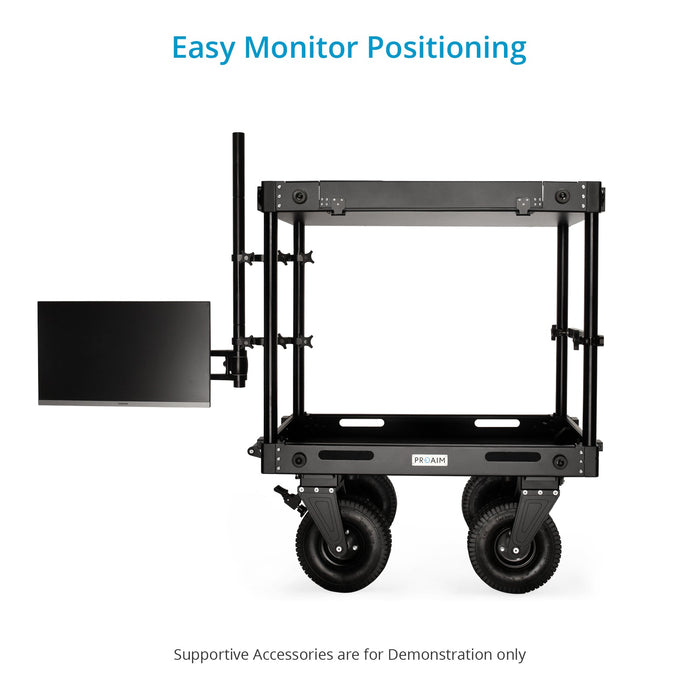

The Arm extends up to 16.75", allowing you to set an ultimate stable solution for attaching & moving your monitor ergonomically.
And, it is compatible with Victor Cart Series, Atlas Camera Cart & Sound Chief Cart.

Proaim Monitor Articulated Arm for Camera Cart

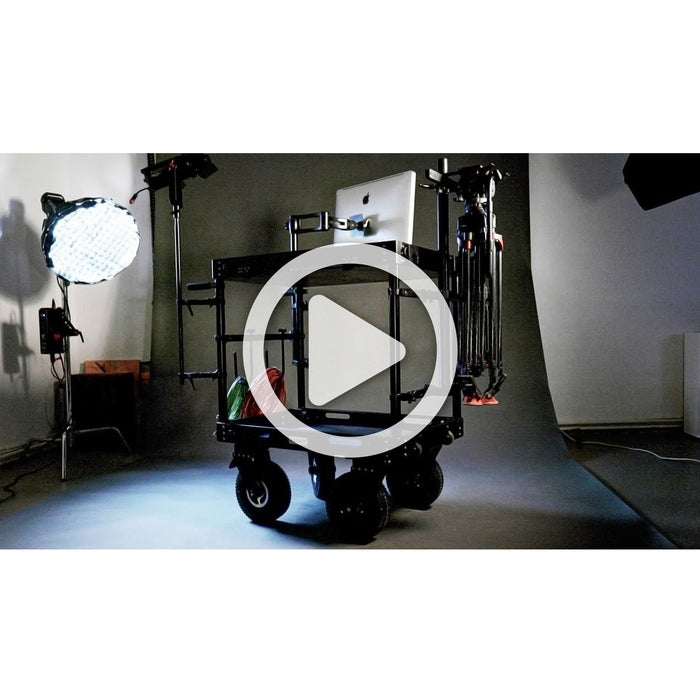

See how the Monitor Articulated Arm Works

Specifications

Construction

  High-grade CNC Aluminium

Payload

  up to 25kg / 55lb

Monitor mounting

  M3x10 screws (not included)

Maximum reach of arm

  16.75 inch

Diameter of Rods

  37.65mm

Length of Rods

  40cm each

Package Weight

  5.25KG

Compatibility

Victor Series Cart, Atlas Cart, Sound Chief Cart
VESA Display / Monitor

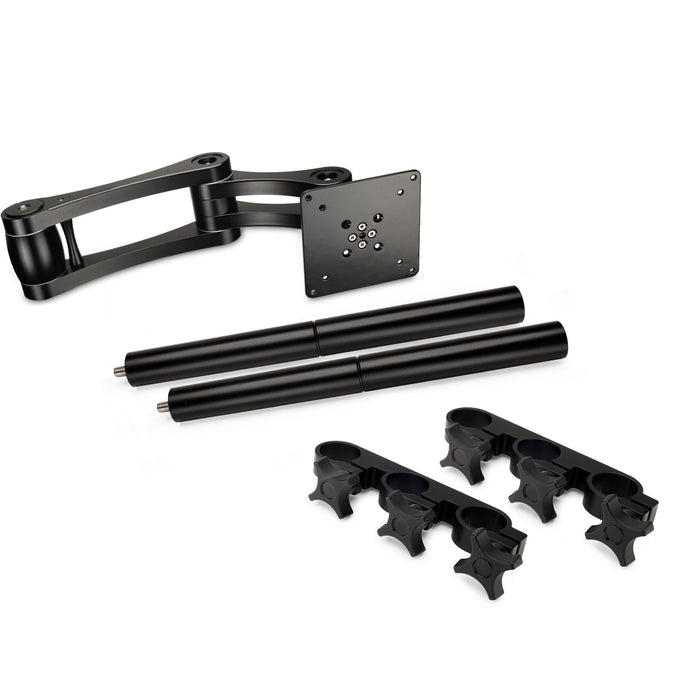

In the Box

Proaim Monitor Articulated Arm

User Manual


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • Do you have to unscrew the monitor from the mount to rotate it from landscape to vertical? Or does the monitor mount rotate from landscape to vertical once the monitor is screwed to the mount?

    You don't have to unscrew the monitor from the mount to rotate it from landscape to vertical position, for this you just have to loose the two grub screws (as marked in the below image ) and rotate the monitor to the required position then tighten the grub screw back. Image link: https://prnt.sc/uiZBos5jv0Eu

  • Does the the articulating monitor arm fit on the Heavy-Duty Telescopic Mast w 5/8\" Baby Pin for Proaim Soundchief Cart? If so how?

    No, the VCTR-MA is not compatible with the Heavy-Duty Telescopic Mast w 5/8" Baby Pin.

  • What is the distance between screws on the Vesa plate to the arm, and the size of these screws of Proaim Monitor Articulated Arm ?

    Please find below images for the required dimentions of Vesa plate of VCTR-MA.
    https://prnt.sc/6czpuk2jIqQf
    https://prnt.sc/WfM-NgwD5hTQ

    Total distance between mount to arm is 44 Cm, please find below image for more details
    https://prnt.sc/EL-6ZmEgiHEf

  • Does the mount rotate so I can view my monitor vertically?

    Yes, the mount will rotate vertically.

  • Will this mount allow the monitor to be rotated to vertical/portrait?

    Yes, you can mount the monitor in a vertical position as well.

  • Are you able to sell just the swing arm and not the pipe and mounts?

    Yes, we can provide the mounting arm of VCTR-MA.

  • what Vesa mounting patterns does the VCTR-MA accept?

    The Proaim Monitor Articulated Arm for Camera Cart VCTR-MA can be mounted using M3x10 screws (not included).
    Here is an image for your reference: https://prnt.sc/26bbc7j
