Strongest Platform Dolly
The Quad Dolly has an extremely solid Chassis Design, and the upper base is made of Solid Wood with high-quality finish. This makes it extremely robust and can easily handle payloads of up to 500 kg/1100 lb.
Available at our Canada Warehouse
Order Now at: Proaim.ca
The Quad Dolly has an extremely solid Chassis Design, and the upper base is made of Solid Wood with high-quality finish. This makes it extremely robust and can easily handle payloads of up to 500 kg/1100 lb.
The platform height of the Dolly is merely 21cm/8" from the ground. We wanted to make it as low as possible to help you capture those low shots very easily.

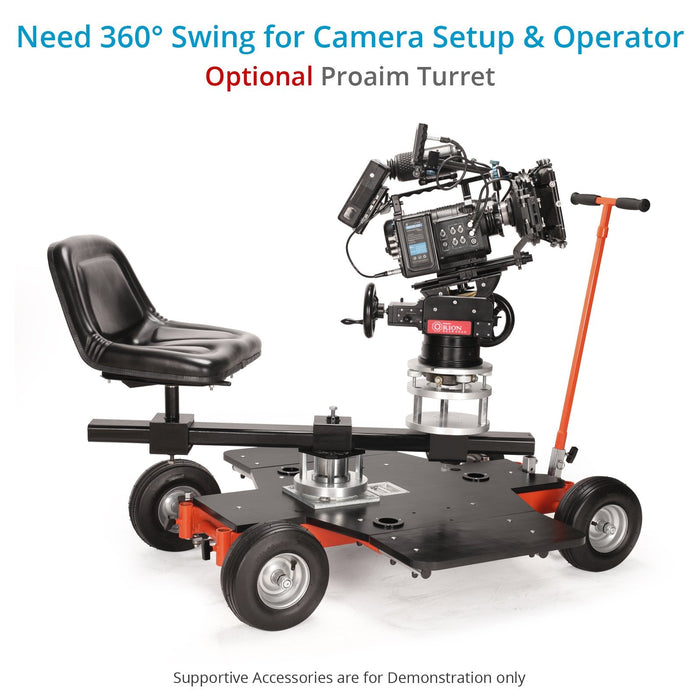

Quad Dolly can be equipped with Skateboard Wheels or Standard Track Wheels for use on tracks or Pneumatic Wheels for standard floor use. You can use a tripod, a bazooka, a slider, or any other standard Euro Mount Accessory and configure it your needs.
Chassis: Solid Metal
Platform: Wooden
500kg/1100lb
Diameter-11”, Thickness -4”, Silver Steel Rim-5”
21cm
270°
Proaim Stream Track (TK-STRS-00), (TRK-16-25)
24.5 -25’’
25-38mm
High-Grade CNC Aluminum
Max Height: 46"/117cm
Min Height: 32"/81cm
100mm
200kg/441lb
Box 1: 55.16kg / 121.6lb
Box 2: 22.8kg / 50.26lb
Box 3: 12.9kg / 28.44lb
Box 4: 9.2kg/ 20.28lb
Box 1: 133 x 84 x 27 cm
Box 2: 100 x 75 x 22 cm
Box 3: 69 x 62 x 28 cm
Box 4: 90 x 22 x 19 cm
Proaim Quad-4 Doorway Dolly
Chair
Steering Push/Pull Bar
Telescopic Bazooka with Euro Plate (BZ-286-00)
100mm Height Riser (BA-267-00)
Proaim Quad Super Dolly Track Wheel Set (P-TWS-QS) (free track wheels)
01.
Manoeuvres On Small Sets Like No Other Platform Dolly
We designed the Quad Doorway Dolly while keeping mobility and easy operation in mind. With an All-wheel steering system, the Proaim Quad Dolly manoeuvres on small sets like no other platform dolly. It's capable of negotiating an extremely tight circle of 2 m (6 ft).
Steering Push bar allows pushing/pulling the Dolly on the ground with standard or on the track extremely smooth and easy.
02.
Create the Shot you Envision
The Quad Dolly can be configured for use with multiple setups such as slider, jibs, tripods, and geared heads which enables you to bring the director's vision to reality.
We offer multiple accessories at highly affordable prices so that you can calibrate the Dolly exactly to your needs.
03.
Let Small Become Big, Double the Size
The Quad Dolly comes with removable sideboards that add an extra 10" per side for increased platform width to enable the Cameraman and the assistant to stand, sit or even kneel on the Solid Platform.
04.
The Most Comfortable Dolly Seat
We understand how tiring a whole day shooting can be. The Quad Dolly comes with a thickly padded cushioned seat which provides exceptionally comfortable seating to the camera operator.
The seat mounts in 4 different positions allowing you to achieve a variety of camera angles. The seat is also height-adjustable for an optimal seating position according to the operator.
\"Hi will the Proaim Telescopic 27\"\"- 42\"\" Bazooka for Camera Dolly | Euro/Elemac Mount fit on the Polaris dolly ?
"Yes, Proaim Telescopic 27""- 42"" Bazooka BZ-286-00 will work with Proaim Polaris Portable Dolly DL-PLRS-01 with the help of Proaim Mitchell to Euro/Elemac Adapter EM-292-00.
Is the center column of the Comet Crane compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly?
Unfortunately, the center column of the Comet Crane is not compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly.
Is the center column of the Comet Crane compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly?
Unfortunately, the center column of the Comet Crane is not compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly.
