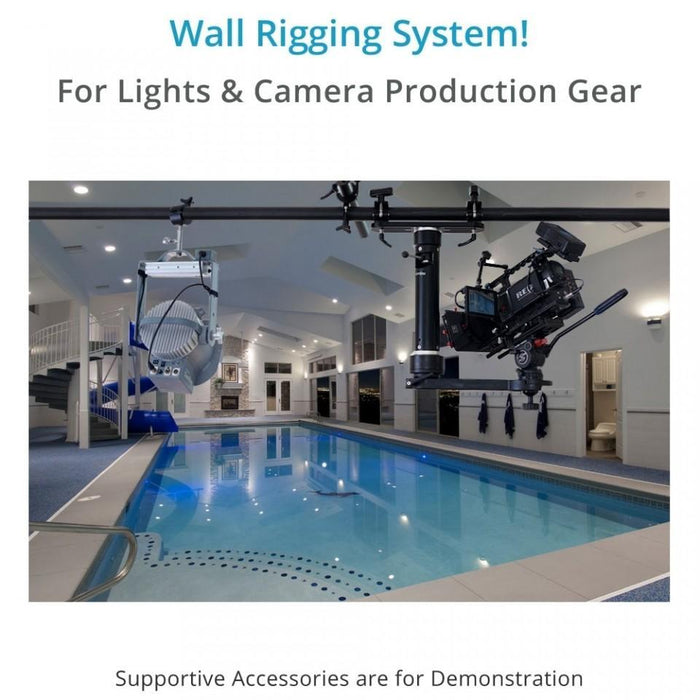

Mobile Rigging System for Lights & Camera Production Gear!
Telescopic System withstands Heavy Loads up to 70kg. No Drilling/Damage to Walls/Pillars.

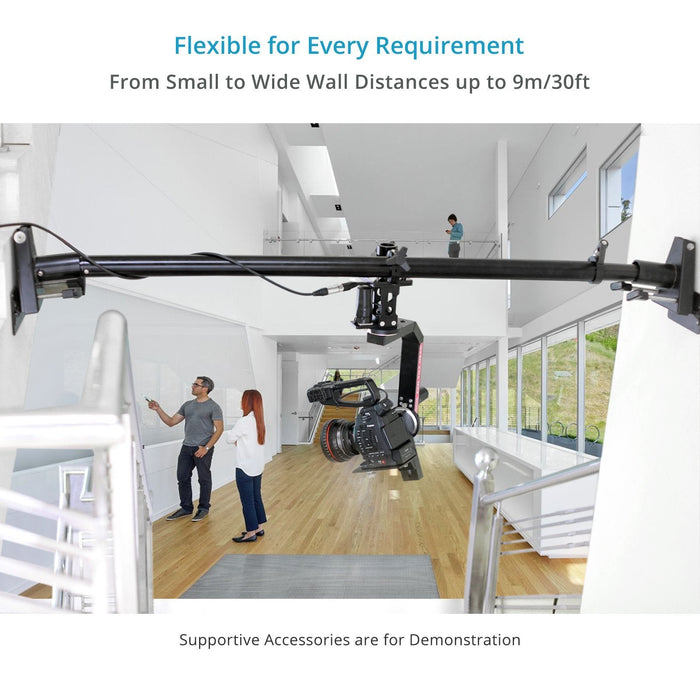

Flexible for Every Requirement - From Limited Space to Wide Wall Distances up to 20ft.
Perfect Asset even if You’re Changing Sets Often. Safe, Fast & Easy to Use.
The Proaim Wall Spreader is a Telescopic Spanning System which is able to withstand heavy loads. It’s a Wall Rigging System for use in vertical, horizontal and diagonal positions. Wall Spreader is a perfect tool on sets where fixing equipment on floor is either not allowed or not possible. The mounting is very quick and easy, without damaging the walls or pillars. By bridging the Spreader between two solid walls, the Telescopic Poles form an arch. This arch points upward (similar to a bridge), allowing it to take extensive loads, e.g. lighting fixtures, 3-Axis gimbals, camera sliders, rigging equipment, etc., up to maximum 70kg/154lb at 6.1m/20ft length.

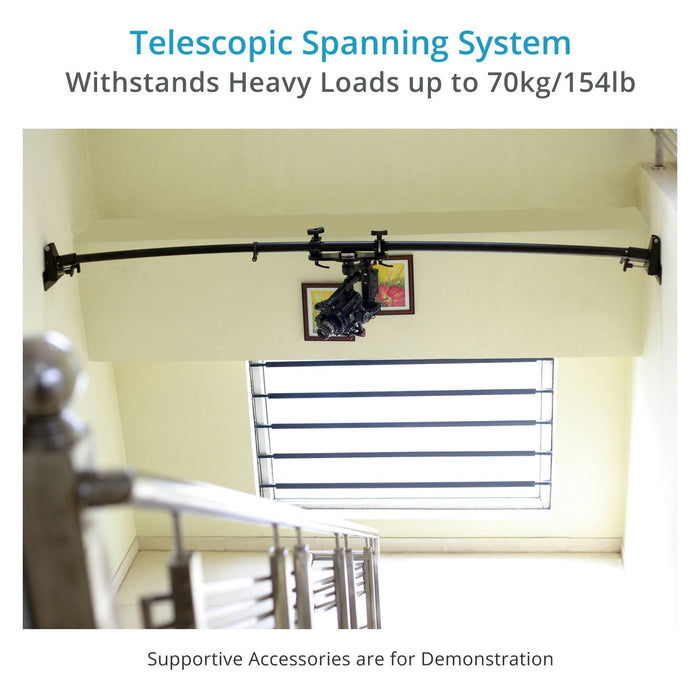

So, if your space on set is limited (for example stairwell), you can bring your shooting equipment exactly to the position you prefer!
(Revised on 08-Sep-2018)
Video is for demonstration only
Actual Product may vary due to Product Improvements
Proaim Wall Spreader set contains 2 different lengths of Telescopic Poles 6ft & 4ft. The Wall Spreader supports length up to 6.1meters / 20feet.
Easy mounting, without damaging, is made sure by rotating the screw of the tightening element, thus ensuring a tight fit.
Set it up into any direction you need with the Double Clamping Ring.
You can have endless mounting possibilities by the included Clamping Ring with Euro Adapter.

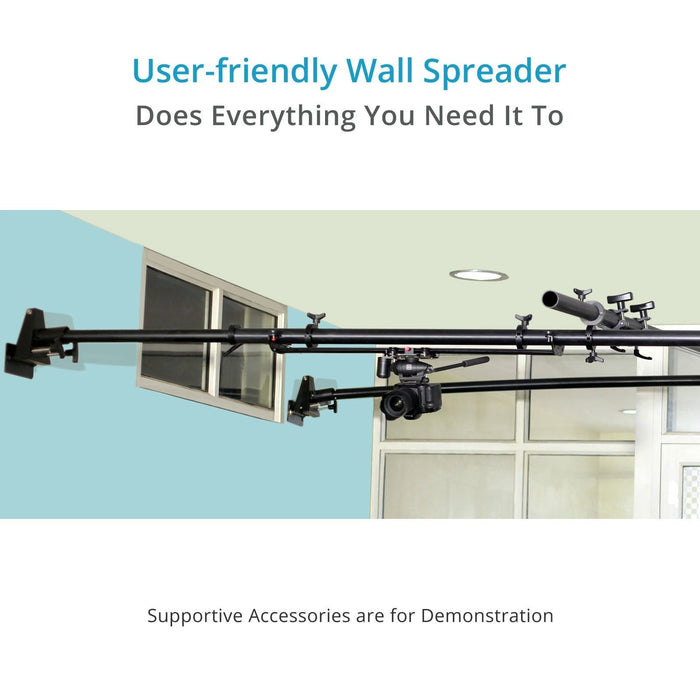

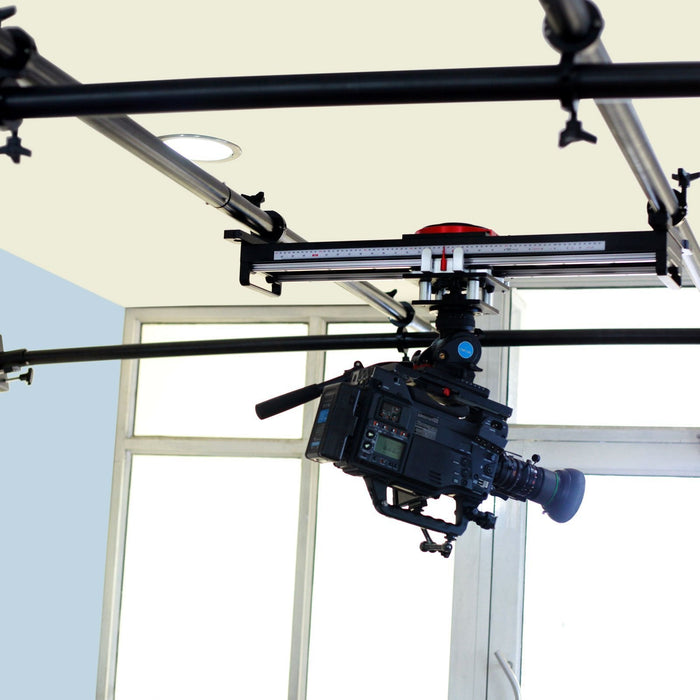

Various Wall Spreader set ups can be achieved – for example:
Supportive Accessories are For Demonstration Purpose Only

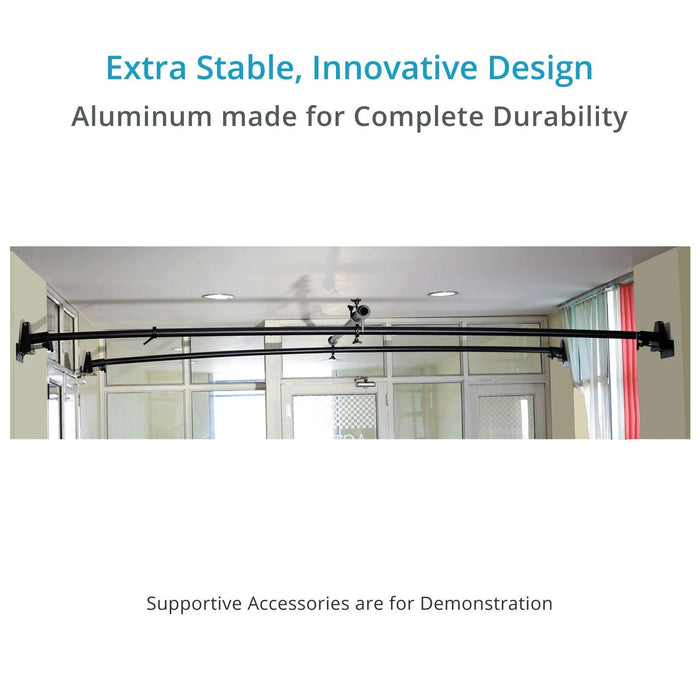

- Construction: High Grade CNC Aluminum
- Outer Diameter of main rod: 50mm
- Inner Diameter of main rod: 44.5mm
- Outer Diameter of Telescopic rod: 44mm
- Inner Diameter of Telescopic rod: 38mm
- Load Capacity on 20ft / 6.1mtr (Frame Structure): 70kg / 154lb
- Load Capacity on 15ft / 4.5mtr (Frame Structure): 70kg / 154lb
- Load Capacity on 6ft / 4mtr (Single Rod): 10kg / 22lb
- Flight Case Dimensions: 92 x 53 x 53cm
- Flight Case Weight: 57kg / 126lb
- Bag Packing Dimensions: 220 x 28 x 25cm
- Bag Packing Weight: 30.8kg / 67.9lb
- 4 x 6ft Telescopic Poles
- 2 x 4ft Telescopic Poles
- 6 x Clamping Rings
- 1 x Euro Adapter
- 4 x Buffers
- 4 x Plastic Tubes
- 4 x Double Clamping Rings
- 2 x Extension Tubes
- 8 x Tightening Elements

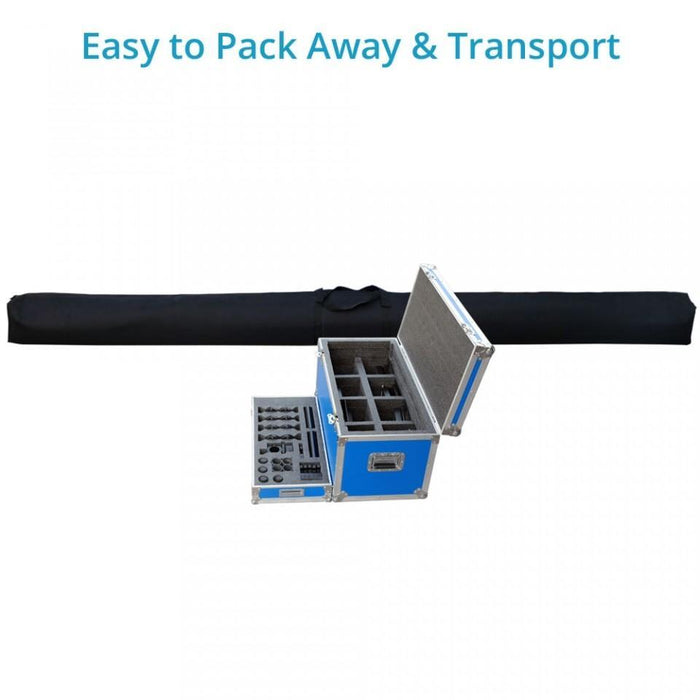

- Flight Case with Custom Fit Bag Packing
Q&AAsk a Question
What is the load capacity of the Proaim Wall Spreader?
The load capacity of the Proaim Wall Spreader varies at different heights.
Here are the details --
On 20ft / 6.1mtr and 15ft / 4.5mtr: 70kg /154lb
On 6ft / 4ft (Single Rod): 10kg / 22lb
I noticed that your wall spreader system specification states a 20ft frame structure that holds up to 70kgs. I don\'t see how the kit as configured can assemble into a 20ft wide frame structure ?
The Proaim Wall Spreader can be made 20ft by using the 1 x 6ft Telescopic Poles, which will extend to 12ft, and 1 x 4ft Telescopic Poles, which will extend to 8ft; therefore, you can make the length of 20ft.
How many poles are included in WS-284-00?
There are multiple telescopic tubes included in the package. Four units of 6ft and Two units of 4ft, can be used individually or in combination.
